8A –10 SEAT BELTS
DAEWOO M-150 BL2
D1AA512B
3. Install the bolt on the floor.
Tighten
Tighten the bolt on the floor to 30–45 NSm (22–33 lb-
ft).
D110A513
TWO–POINT LAB REAR CENTER
SEAT BELT

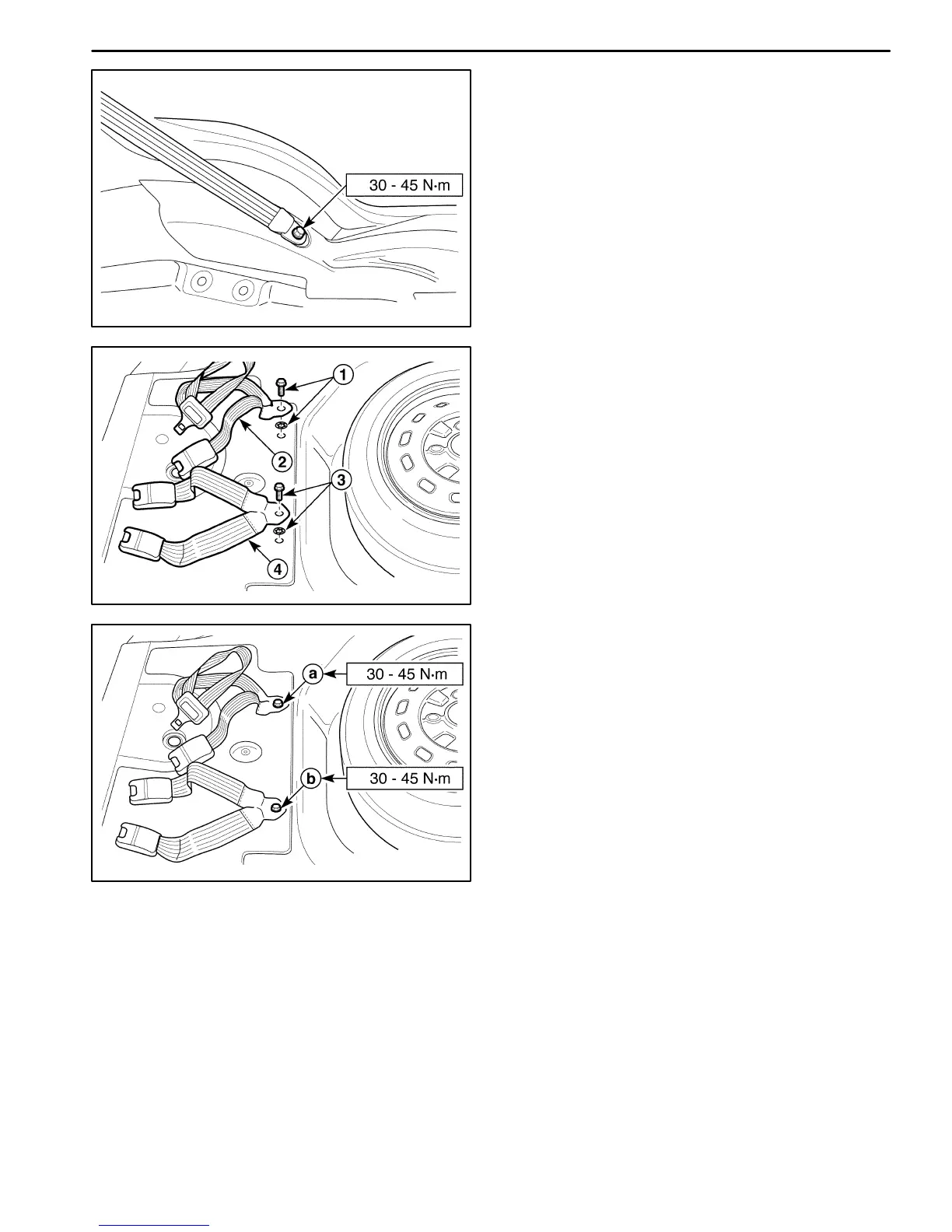

Removal Procedure
1. Remove the rear seat cushion.
2. Remove the two–point rear seat belt and the buckle.
D Remove the bolt and the fiber washer (1).
D Remove the seat belt (two–point) and the buckle
(three–point) (2).
D Remove the bolt and the fiber washer (3).
D Remove the buckle (two–point and three–point)
(4).
D1AA514B
Installation Procedure
1. Install in the reverse order of removal.
2. Install the three–point rear seat belt buckle with the
bolt.
Tighten
Tighten the three–point rear seat belt buckle bolt and
the two–point rear seat belt bolt to 30–45 NSm
(22–33 lb-ft).
a. Two–point rear seat belt and three–point rear seat
belt buckle bolt.
3. Install the two–point rear seat belt with the bolt.
Tighten
Tighten the two–point and three–point rear seat belt
buckle bolt to 30–45 NSm (22–33 lb-ft).
b. Two–point and three–point rear seat belt buckle
bolt.
