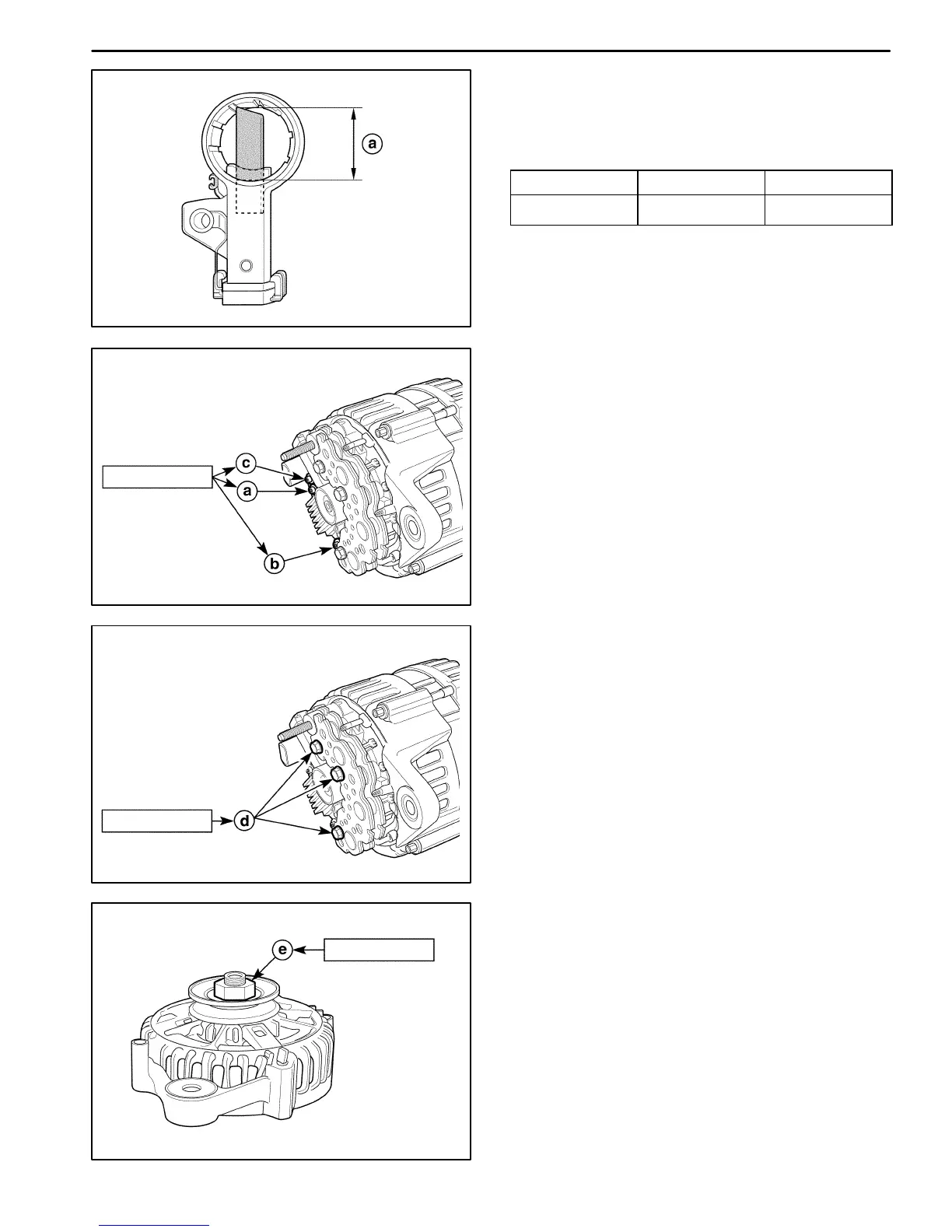

5. Inspect the brush wear
D If the brush wear exceeds the specified value, re-
place the brush.
a. Brush wear limit.
Desciption Standard Limit
Brushes wear 20 (0.79) 14 (0.55)
D12E757A
9–12 NSm
Assembly Procedure
1. Install in the reverse order of removal.
2. Install the screws / nuts / bolts.
Tighten
D Tighten the regulator screw to 9–12 NSm (80–106
lb-in) (a).
D Tighten the rectifier / regulator screw to 9–12 NSm
(80–106 lb-in) (b).
D Tighten the brush holder / regulator screw to 9–12
NSm (80–106 lb-in) (c).
D12E758A
9–12 NSm
D Tighten the rectifier bolts to 9–12 NSm (80–106 lb-
in) (d).
D12E759A
80–110 NSm
D Tighten the pulley nut to 80-110 NSm (59–81 lb-ft)
(e).
