SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B–67
DAEWOO M-150 BL2
D110B315

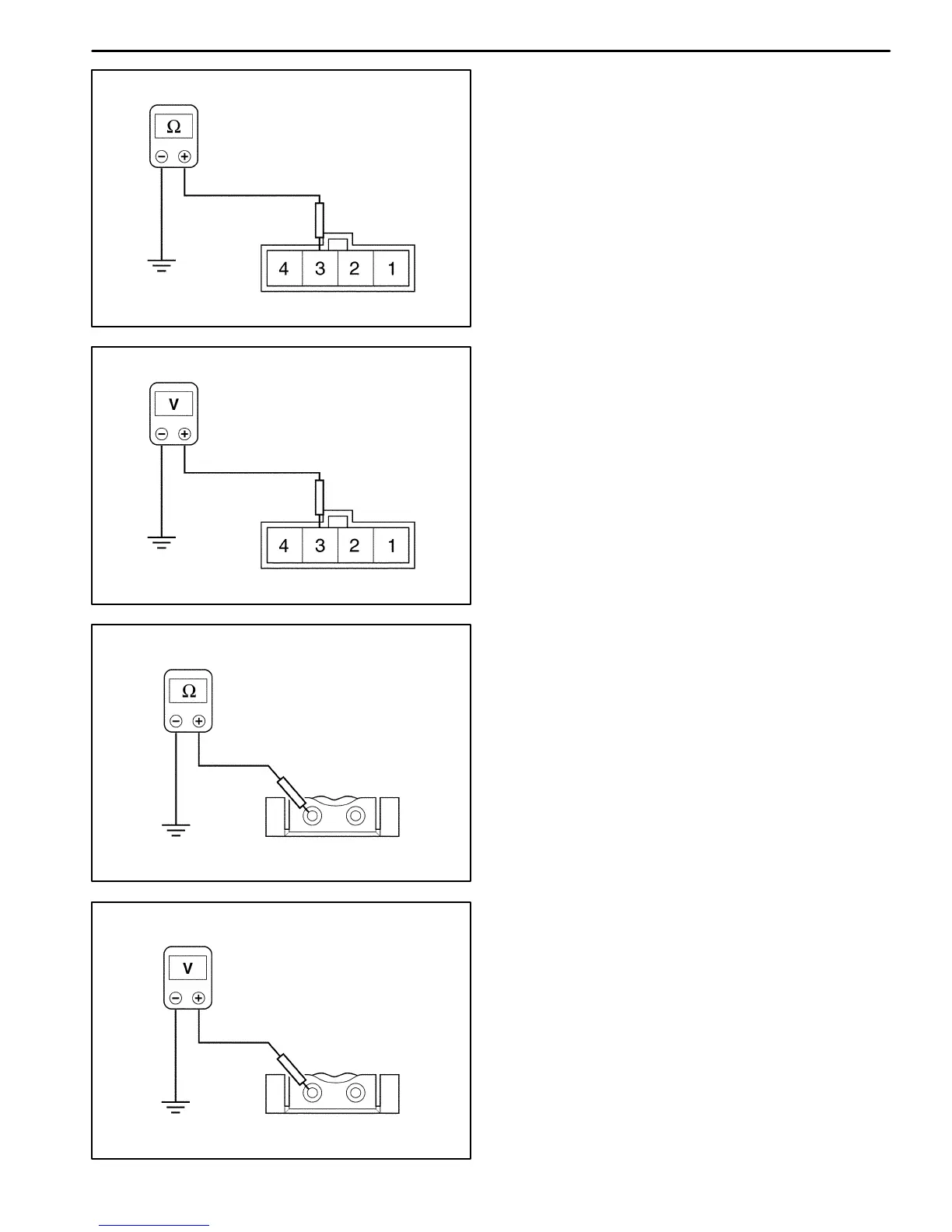

DIAGNOSTIC ILLUSTRATION 14
Checking for a short to ground in the instrument harness
on the instrument harness side at the terminal 3 of the
connector C208.
D110B316
DIAGNOSTIC ILLUSTRATION 15
Checking the voltage of the warning lamp circuit on the
instrument harness side at the terminal 3 of the connec-
tor C208.
D110B310
.
DIAGNOSTIC ILLUSTRATION 16
Checking the driver seat belt pretensioner circuit conti-
nuity on the sensing and driagnostic module side of the
connector.
D110B311
DIAGNOSTIC ILLUSTRATION 17
Checking the driver seat belt pretensioner circuit for a
short to ground.
