SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B–69
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D110B501
DRIVER AIRBAG MODULE
(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Tool Required
DS 401 Torx Bolt Wrench
Removal Procedure
1. Disconnect the negative battery cable.
2. Position the steering wheel straight ahead.

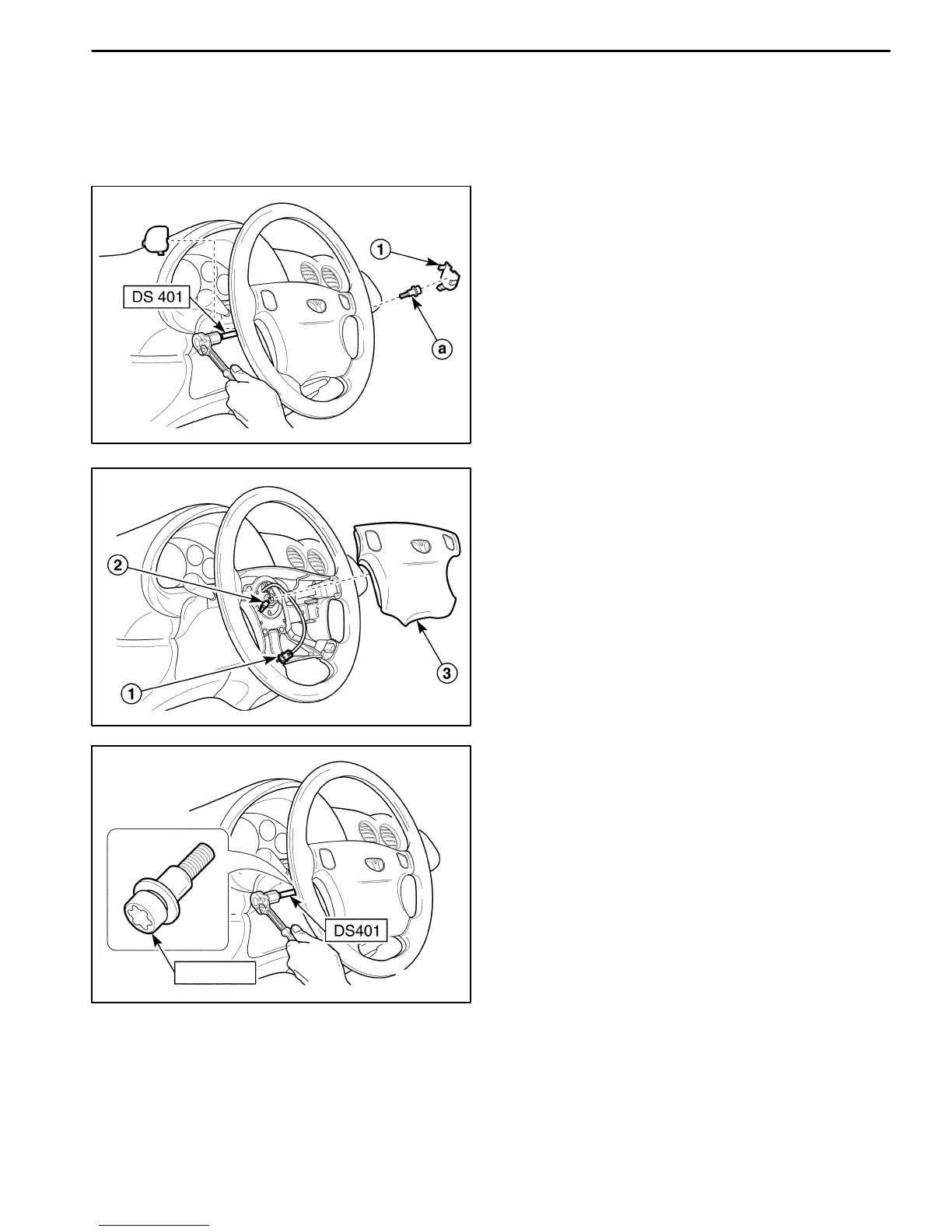

3. Remove the driver airbag module mounting bolts.
D Remove the airbag module bolt cover (1).
D Remove the airbag module torx bolt using a torx
bolt wrench DS 401.
a. Airbag module torx bolt.
D110B502
Caution: When handling an airbag module, always
keep the top of the unit facing upward. This leaves
room for the module to expand if the module unex-
pectedly deploys. Without room for expansion, a
module suddenly propelled toward a person or ob-
ject can cause injury or vehicle damage.
4.Remove the driver airbag module.
D Disconnect the driver airbag module connector (1).
D Disconnect the horn terminal connector (2).
D Remove the driver airbag module (3).
15 NSm
D1AB503A
Installation Procedure
Caution: When removing an airbag module or han-
dling a new airbag module, always keep the top of
the unit facing upward. This leaves room for the
module to expand if the module unexpectedly de-
ploys. Without room for expansion, a module sud-
denly propelled toward a person or object can
cause injury or vehicle damage.
1. Install the driver airbag module.
2. Connect the connectors to the horn terminal and the
driver airbag module.
3. Install the driver airbag module torx bolt using a torx
bolt wrench DS 401.
Tighten
Tighten the torx bolt to 15 NSm (11 lb-ft)
4. Connect the negative battery cable.
