9D –14 WIPERS/WASHER SYSTEMS
DAEWOO M-150 BL2
D109D545

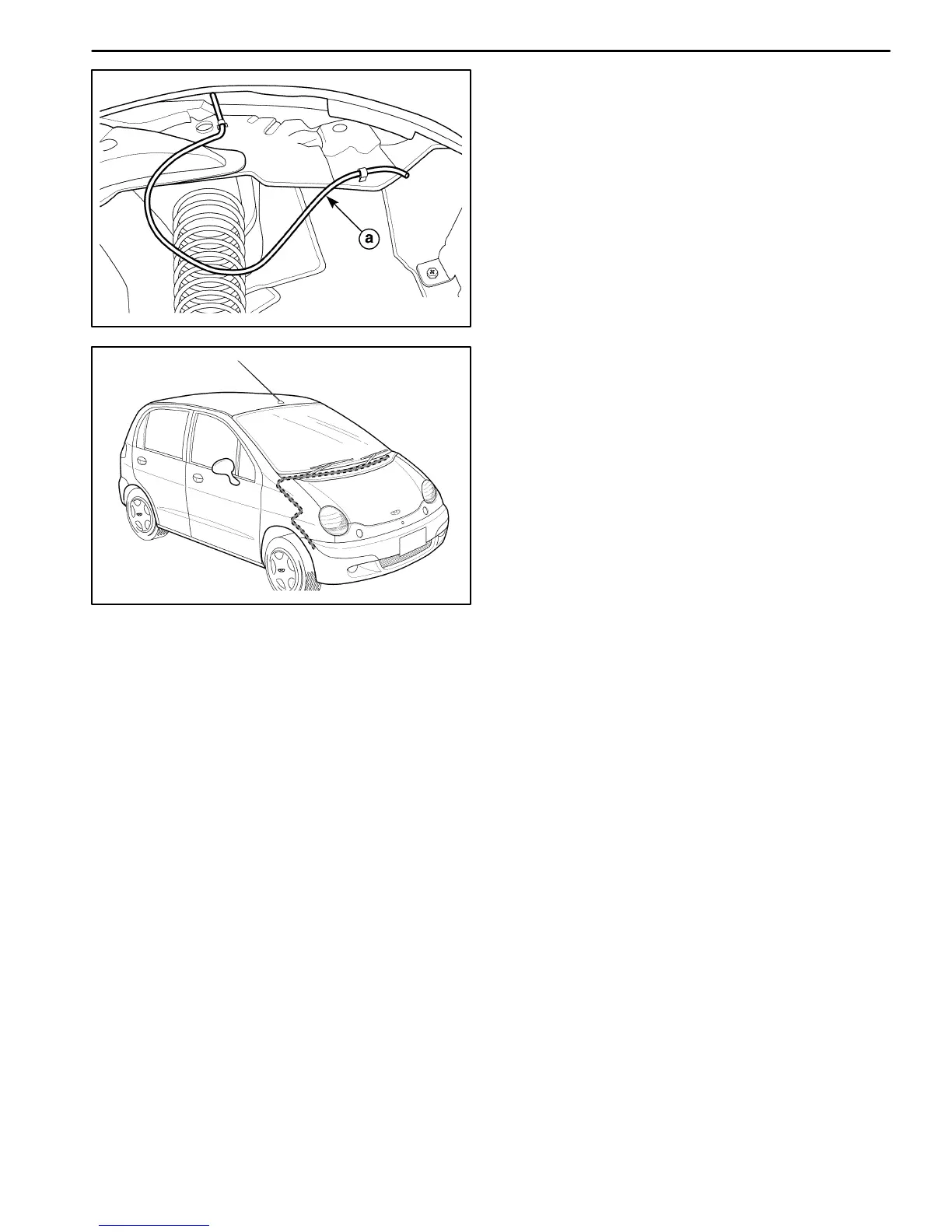

7. Remove the washer hose.
a. Washer hose.
D19D546A
Installation Procedure
1. Connect the washer hose to the washer pump.
2. Install the front RH wheel house splash shield with
the screws and the clips.
3. Install the front RH wheel.
4. Lower the vehicle.
5. Connect the washer hose connector.
6. Install the cowl vent grille. Refer to Section 9R, Body
Front End.
