Chapter 4
| Interface Configuration
Port Configuration
– 120 –
◆ Speed/Duplex – Allows you to manually set the port speed and duplex mode.
(i.e., with auto-negotiation disabled)
◆ Flow Control – Allows automatic or manual selection of flow control.
Web Interface
To configure port connection parameters:
1. Click Interface, Port, General.
2. Select Configure by Port List from the Action List.
3. Modify the required interface settings.
4. Click Apply.

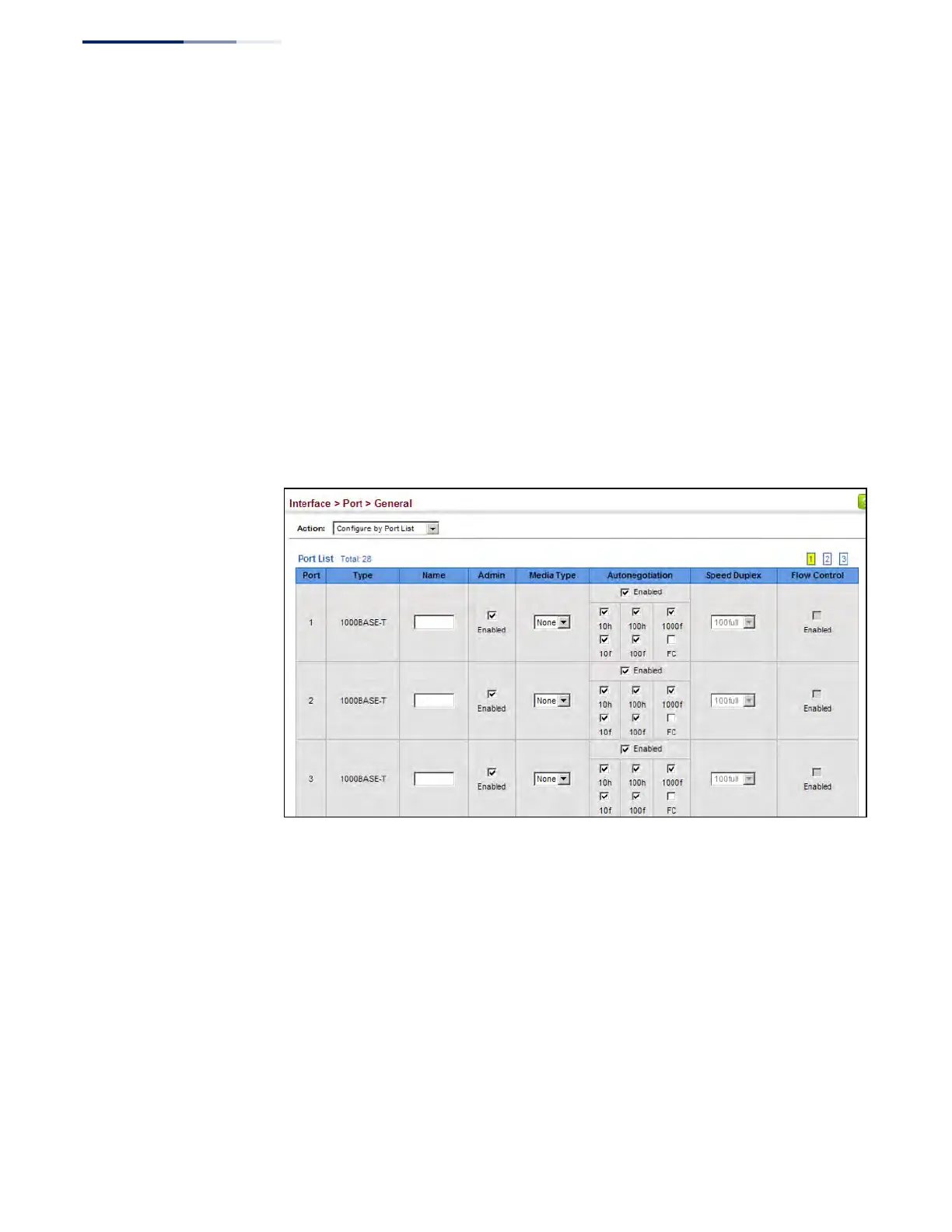

Figure 32: Configuring Connections by Port List
Configuring by
Port Range
Use the Interface > Port > General (Configure by Port Range) page to enable/
disable an interface, set auto-negotiation and the interface capabilities to
advertise, or manually fix the speed, duplex mode, and flow control.
For more information on command usage and a description of the parameters,
refer to “Configuring by Port List” on page 118.
Web Interface
To configure port connection parameters:
1. Click Interface, Port, General.
2. Select Configure by Port Range from the Action List.
