Chapter 13
| Basic Administration Protocols
Connectivity Fault Management
– 507 –
Parameters
These parameters are displayed:
◆ MD Index – Domain index. (Range: 1-65535)
◆ MA Index – MA identifier. (Range: 1-2147483647)
◆ MEP ID – Identifier for a maintenance end point which exists on another CFM-
enabled device within the same MA. (Range: 1-8191)
Web Interface
To configure a remote maintenance end point:
1. Click Administration, CFM.
2. Select Configure Remote MEP from the Step list.
3. Select Add from the Action list.
4. Select an entry from MD Index and MA Index.
5. Specify the remote MEPs which exist on other devices within the same MA.
6. Click Apply.

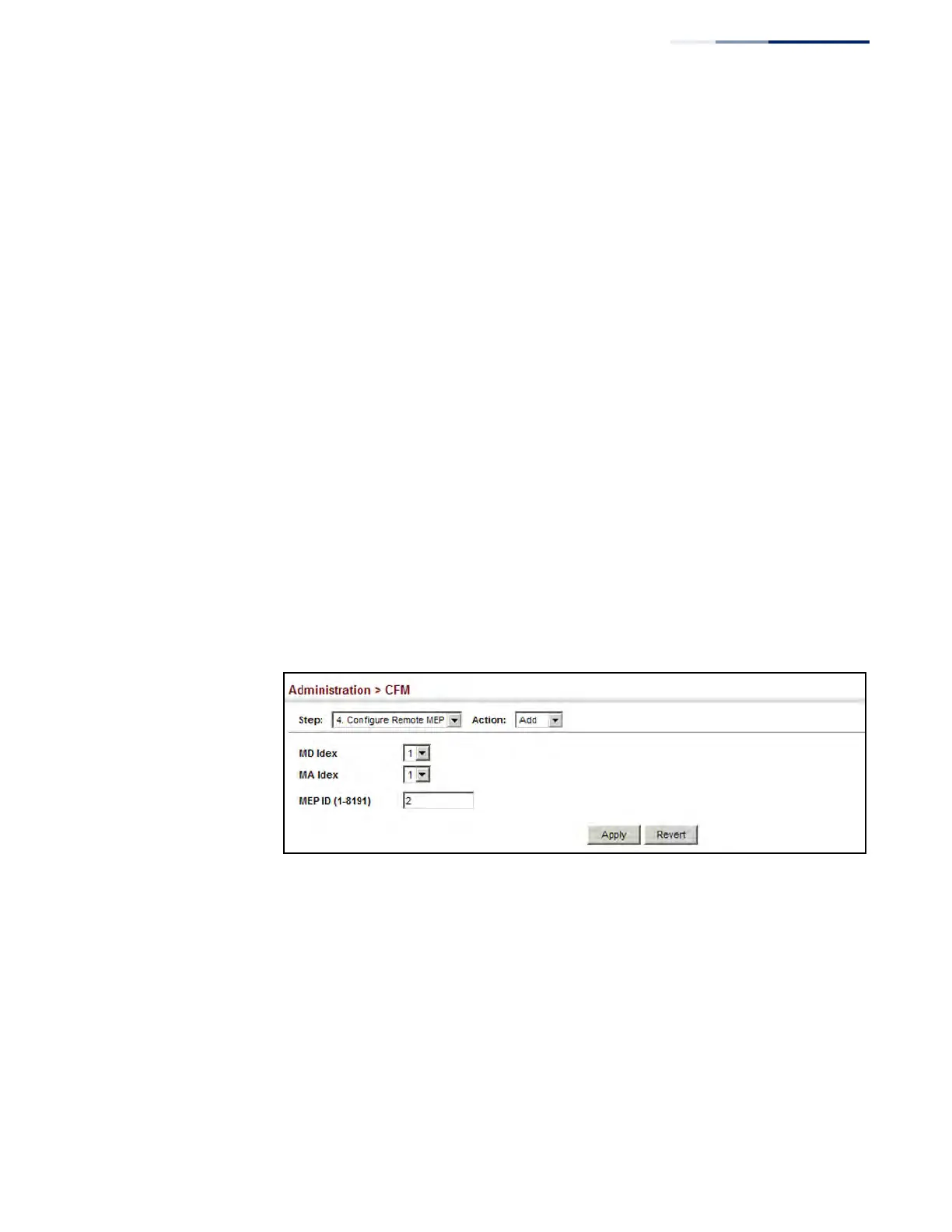

Figure 314: Configuring Remote Maintenance End Points
To show the configured remote maintenance end points:
1. Click Administration, CFM.
2. Select Configure MEP from the Step list.
3. Select Show from the Action list.
4. Select an entry from MD Index and MA Index.
