Chapter 16
| IP Services
Configuring the PPPoE Intermediate Agent
– 666 –
◆ Remote ID – String identifying the remote identifier (or interface) on this
switch to which the user is connected. (Range: 1-63 ASCII characters;
Default: Port MAC address)
◆ Operational Remote ID – The configured circuit identifier.
Web Interface
To configure interface settings for PPPoE IA:
1. Click IP Service, PPPoE Intermediate Agent.
2. Select Configure Interface from the Step list.
3. Select Port or Trunk interface type.
4. Enable PPPoE IA on an interface, set trust status, enable vendor tag stripping if
required, and set the circuit ID and remote ID.
5. Click Apply.

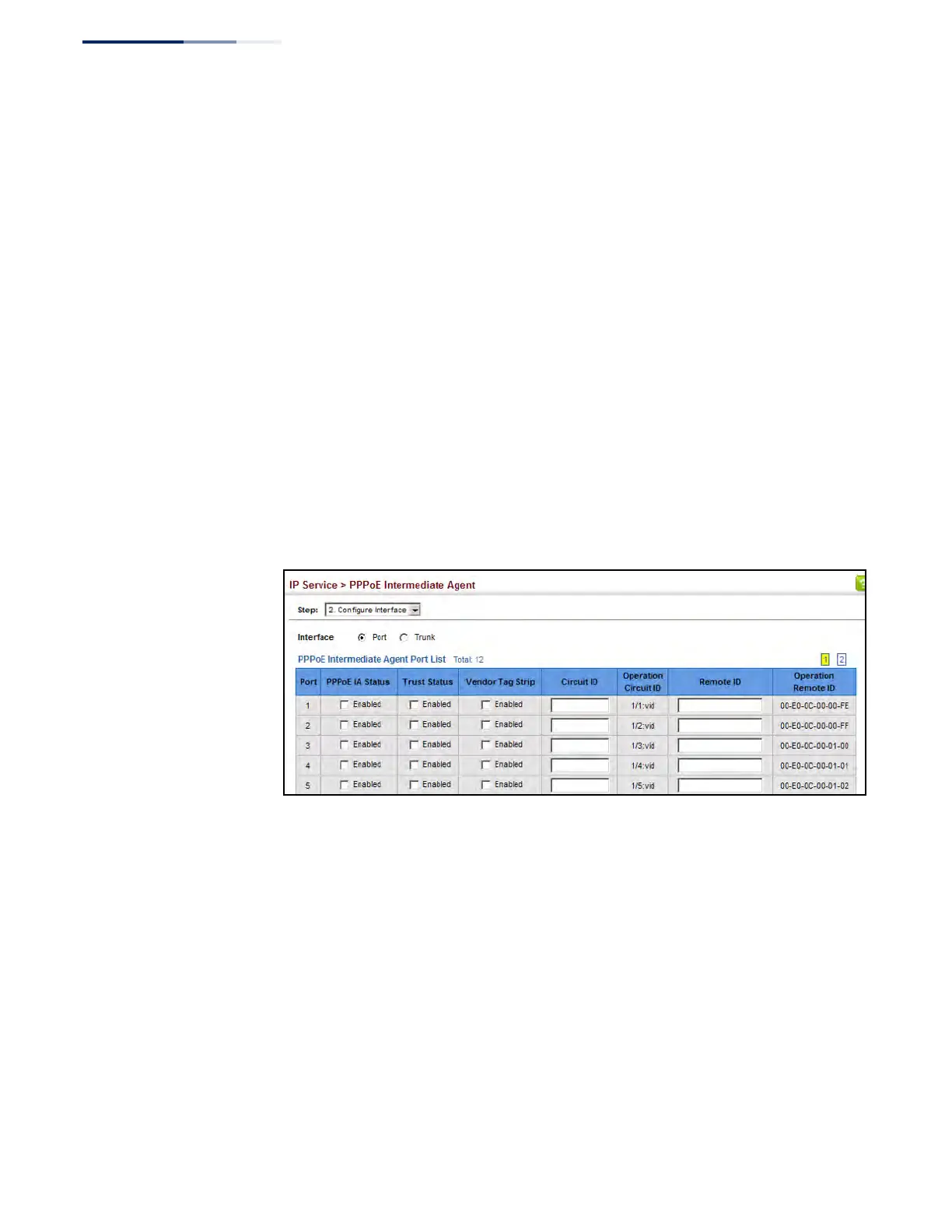

Figure 438: Configuring Interface Settings for PPPoE Intermediate Agent
g
Showing PPPoE IA
Statistics
Use the IP Service > PPPoE Intermediate Agent (Show Statistics) page to show
statistics on PPPoE IA protocol messages.
Parameters
These parameters are displayed:
◆ Interface – Port or trunk selection.
◆ Received – Received PPPoE active discovery messages.
â–
All – All PPPoE active discovery message types.
â–
PADI – PPPoE Active Discovery Initiation messages.
