Chapter 13
| Basic Administration Protocols
OAM Configuration
– 527 –

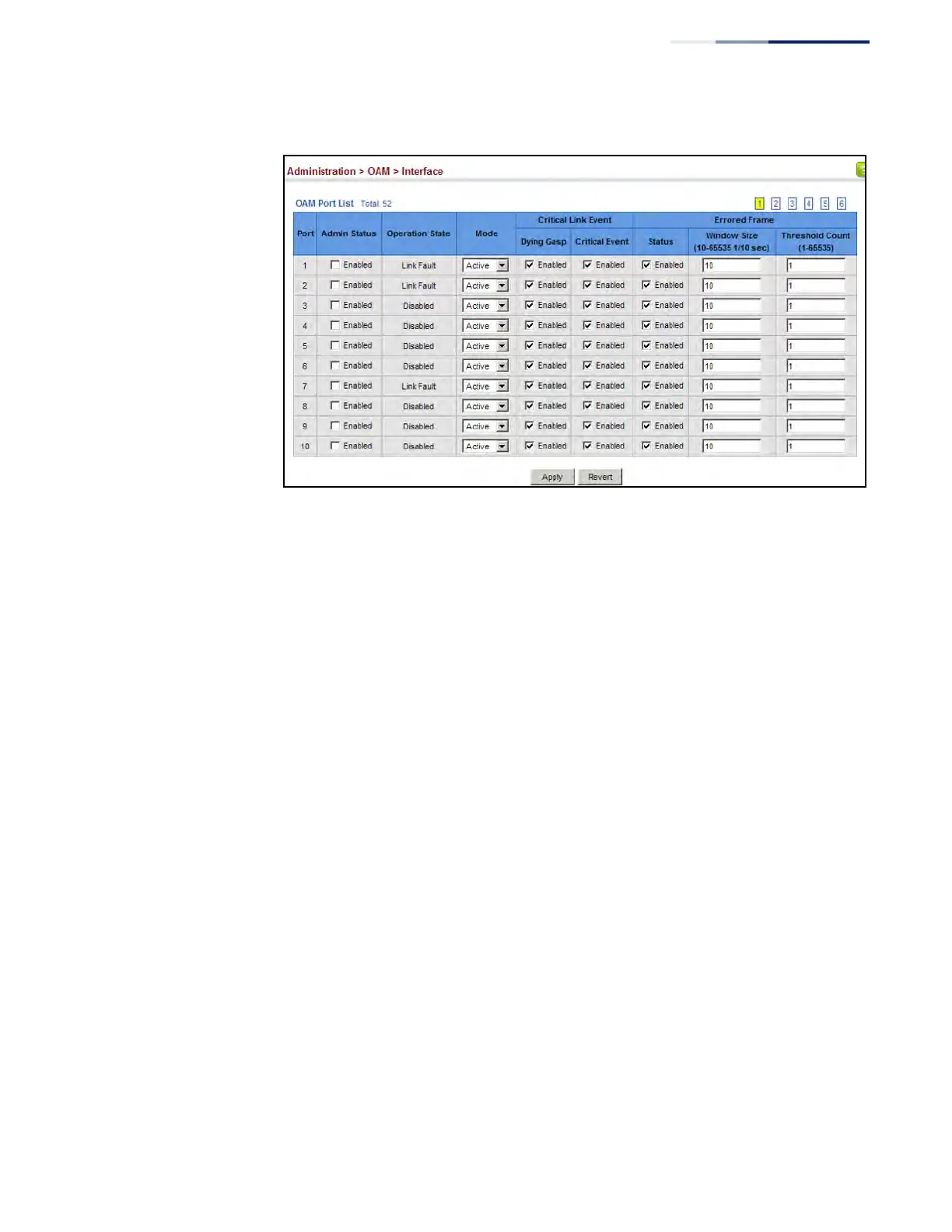

Figure 327: Enabling OAM for Local Ports
Displaying Statistics
for OAM Messages
Use the Administration > OAM > Counters page to display statistics for the various
types of OAM messages passed across each port.
Parameters
These parameters are displayed:
◆ Port – Port identifier. (Range: 1-28/52)
◆ Clear – Clears statistical counters for the selected ports.
◆ OAMPDU – Message types transmitted and received by the OAM protocol,
including Information OAMPDUs, unique Event OAMPDUs, Loopback Control
OAMPDUs, and Organization Specific OAMPDUs.
