Chapter 4
| Interface Configuration
Port Configuration
– 131 –
Web Interface
To show a list of port statistics:
1. Click Interface, Port, Statistics.
2. Select the statistics mode to display (Interface, Etherlike, RMON or Utilization).
3. Select a port from the drop-down list.
4. Use the Refresh button if you need to update the screen.

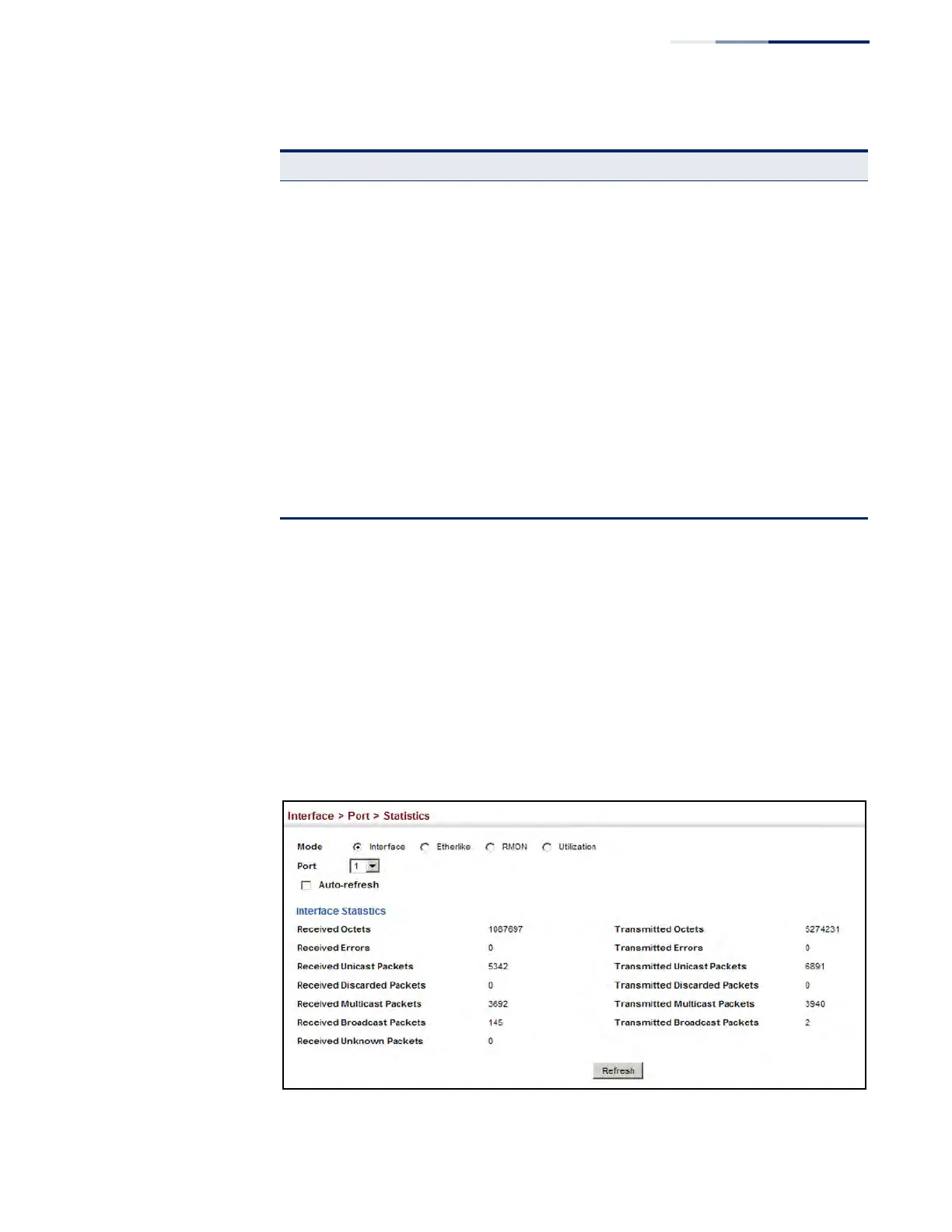

Figure 42: Showing Port Statistics (Table)
65-127 Byte Packets
128-255 Byte Packets
256-511 Byte Packets
512-1023 Byte Packets
1024-1518 Byte Packets
1519-1536 Byte Packets
The total number of packets (including bad packets) received and
transmitted where the number of octets fall within the specified range
(excluding framing bits but including FCS octets).
Utilization Statistics
Input Octets in kbits per
second
Number of octets entering this interface in kbits/second.
Input Packets per second Number of packets entering this interface per second.
Input Utilization The input utilization rate for this interface.
Output Octets in kbits per
second
Number of octets leaving this interface in kbits/second.
Output Packets per second Number of packets leaving this interface per second.
Output Utilization The output utilization rate for this interface.
Table 5: Port Statistics (Continued)
Parameter Description
