Chapter 14
| Multicast Filtering
Multicast VLAN Registration for IPv4
– 596 –
4. Select an MVR domain.
5. Select the port or trunk for which to display this information.

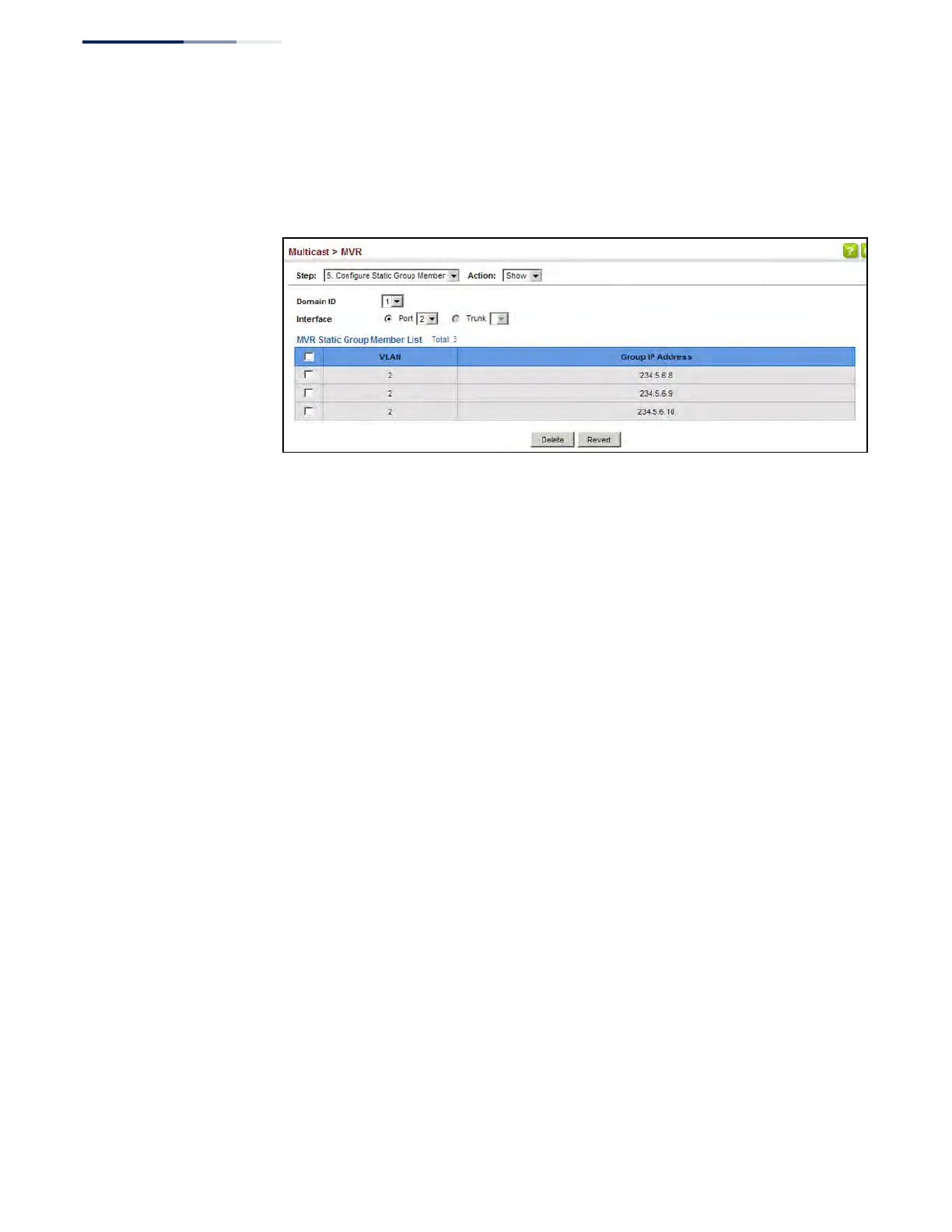

Figure 381: Showing the Static MVR Groups Assigned to a Port
Displaying MVR
Receiver Groups
Use the Multicast > MVR (Show Member) page to show the multicast groups either
statically or dynamically assigned to the MVR receiver groups on each interface.
Parameters
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IP Address – Multicast groups assigned to the MVR VLAN.
◆ VLAN – The VLAN through which the service is received. Note that this may be
different from the MVR VLAN if the group address has been statically assigned.
◆ Port – Shows the interfaces with subscribers for multicast services provided
through the MVR VLAN.
◆ Up Time – Time this service has been forwarded to attached clients.
◆ Expire – Time before this entry expires if no membership report is received
from currently active or new clients.
◆ Count – The number of multicast services currently being forwarded from the
MVR VLAN.
◆ Clear MVR Group – Clears multicast group information dynamically learned
through MVR6. Statically configured multicast addresses are not cleared.
