Edge-Core ECS4620-28T

Chapter 19 | Unicast Routing
Configuring the Open Shortest Path First Protocol (Version 2)
– 745 –
Web Interface
To create a virtual link:
1. Click Routing Protocol, OSPF, Virtual Link.
2. Select Add from the Action list.
3. Specify the process ID, the Area ID, and Neighbor router ID.
4. Click Apply.

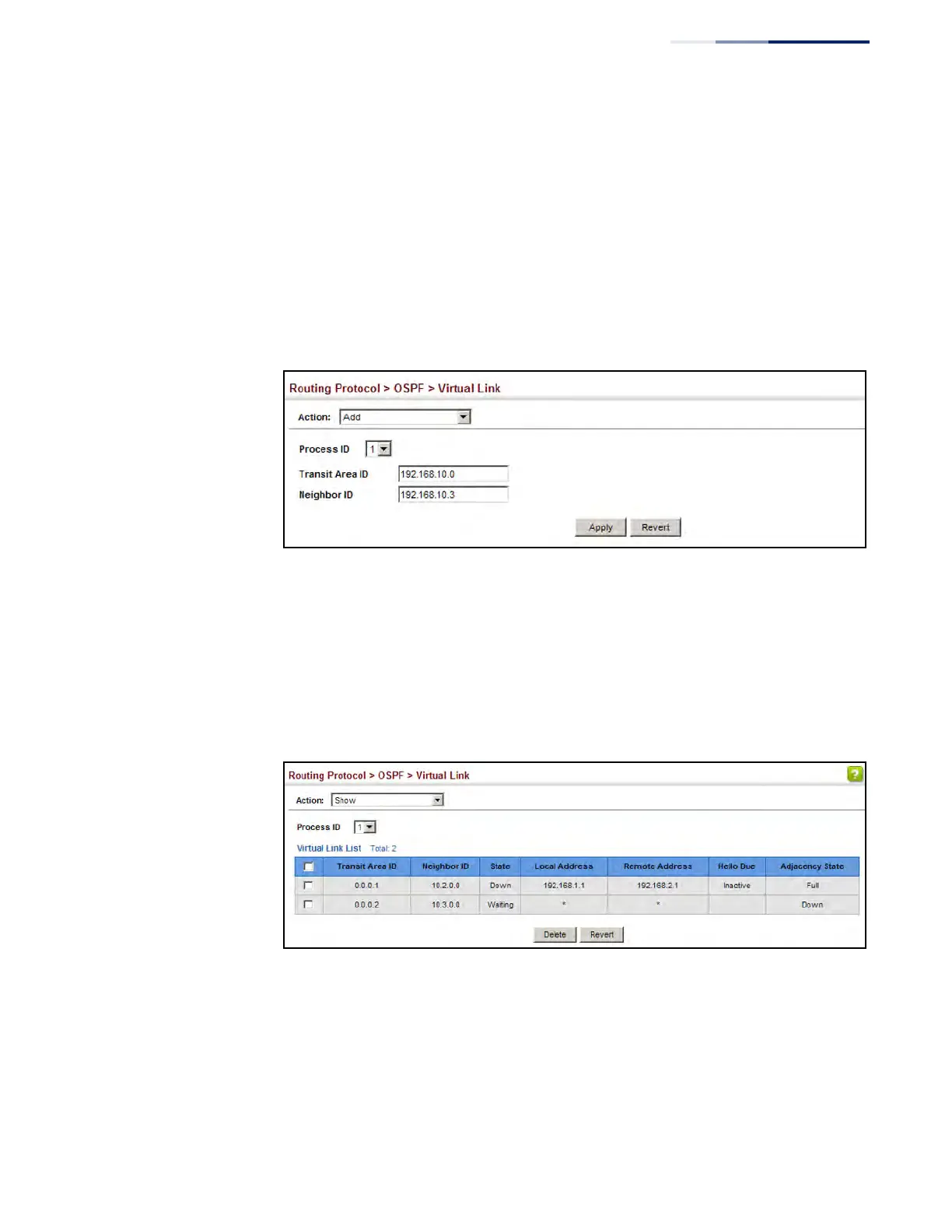

Figure 510: Adding a Virtual Link
To show virtual links:
1. Click Routing Protocol, OSPF, Virtual Link.
2. Select Show from the Action list.
3. Select the process ID.
Figure 511: Showing Virtual Links
To configure detailed settings for a virtual link:
1. Click Routing Protocol, OSPF, Virtual Link.
2. Select Configure Detailed Settings from the Action list.
3. Specify the process ID, then modify the protocol timers and authentication
settings as required.
