Chapter 9
| Class of Service
Layer
3/4 Prior
ity Set
tings
– 254
–
T
o show the CoS/CFI t
o internal PHB/dr
op preced
ence map:
1.
Click T
raffic, P
riority
, C
oS to DSCP
.
2.
Select
Show from the Action list.
3.
Sel
ect a
p
ort.

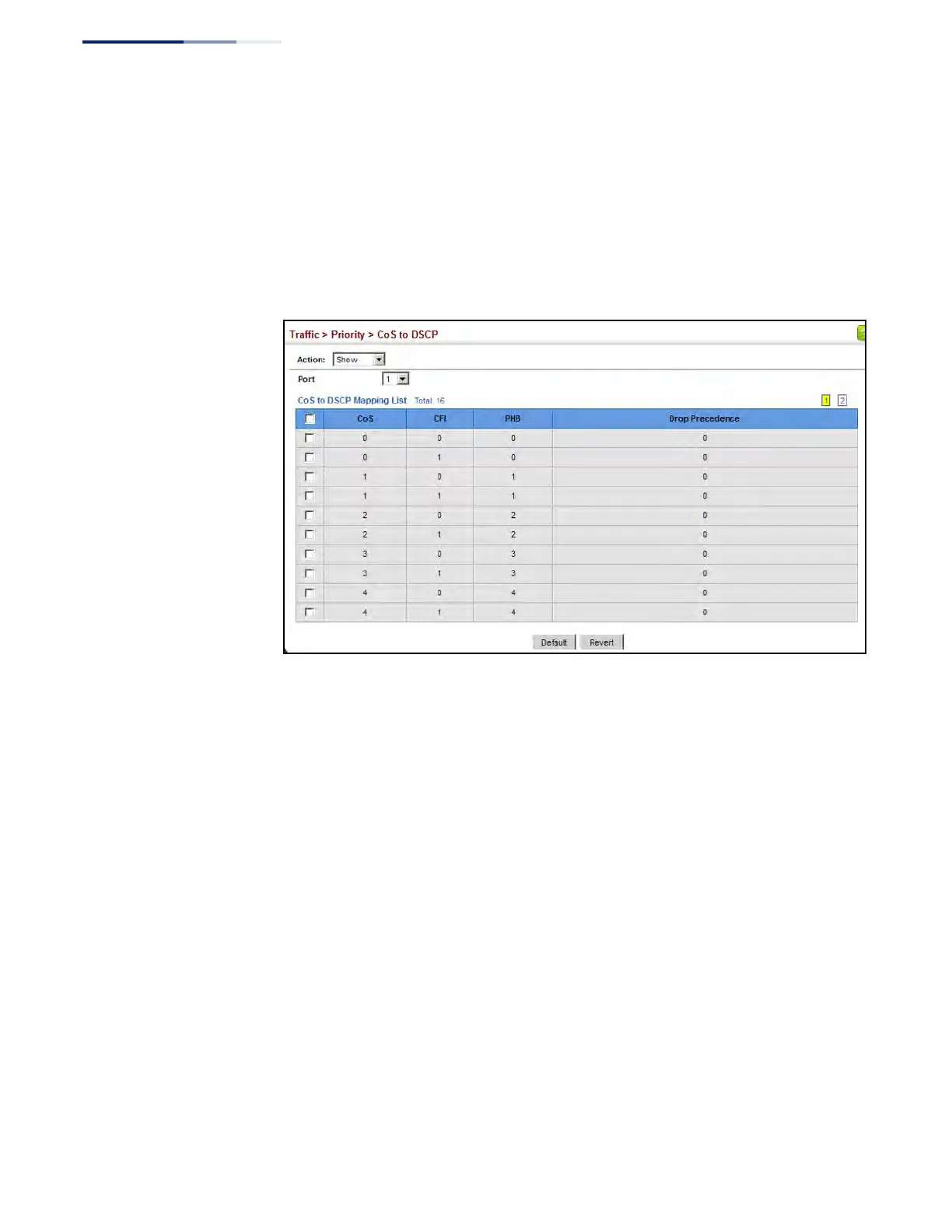

Figure 144: Showing Co
S to DSCP Internal
Mapping
259
