Chapter 12
| Security Measures
ARP Inspection
– 344 –
4. Click Apply.

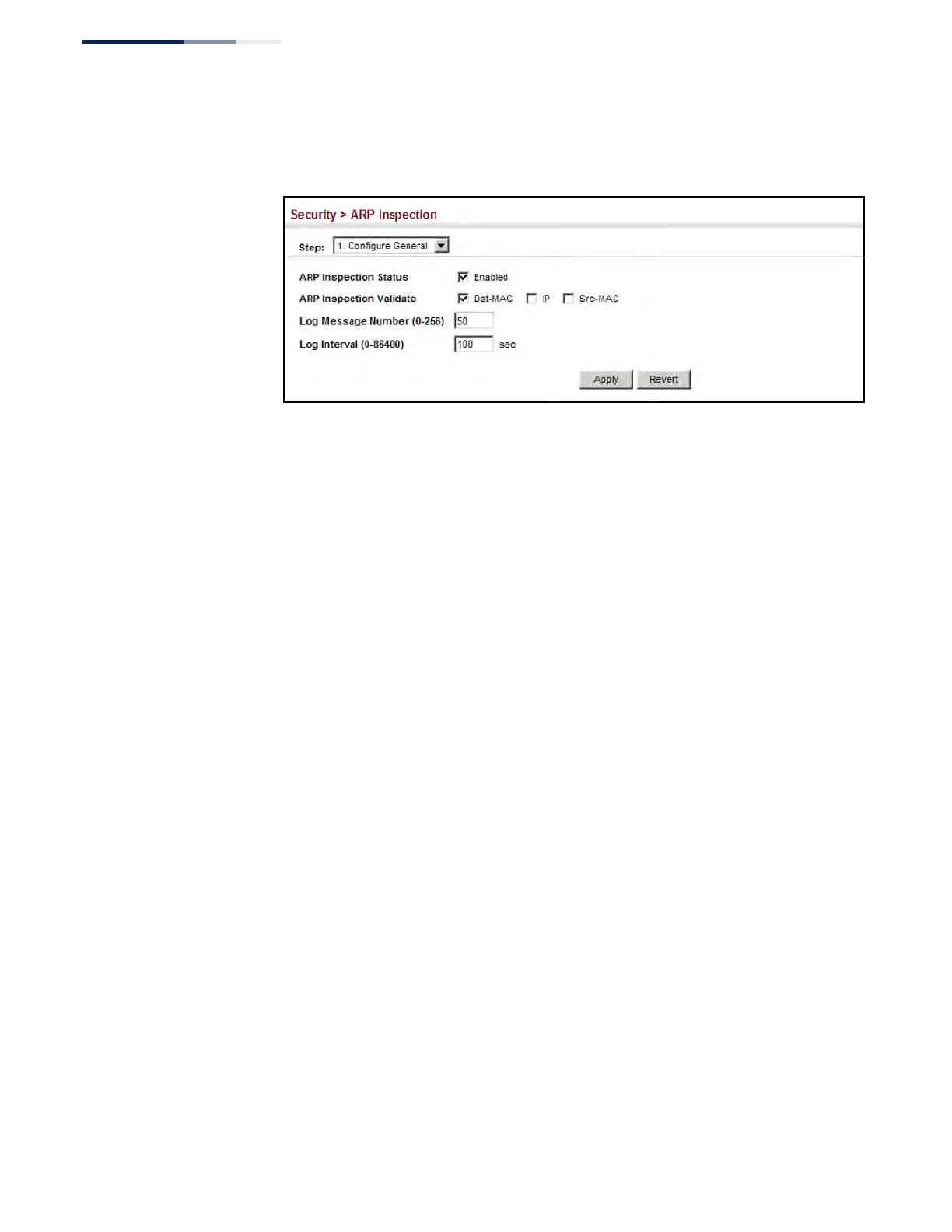

Figure 210: Configuring Global Settings for ARP Inspection
Configuring
VLAN Settings for
ARP Inspection
Use the Security > ARP Inspection (Configure VLAN) page to enable ARP inspection
for any VLAN and to specify the ARP ACL to use.
Command Usage
ARP Inspection VLAN Filters (ACLs)
◆ By default, no ARP Inspection ACLs are configured and the feature is disabled.
◆ ARP Inspection ACLs are configured within the ARP ACL configuration page
(see page 335).
◆ ARP Inspection ACLs can be applied to any configured VLAN.
◆ ARP Inspection uses the DHCP snooping bindings database for the list of valid
IP-to-MAC address bindings. ARP ACLs take precedence over entries in the
DHCP snooping bindings database. The switch first compares ARP packets to
any specified ARP ACLs.
◆ If Static is specified, ARP packets are only validated against the selected ACL –
packets are filtered according to any matching rules, packets not matching any
rules are dropped, and the DHCP snooping bindings database check is
bypassed.
◆ If Static is not specified, ARP packets are first validated against the selected ACL;
if no ACL rules match the packets, then the DHCP snooping bindings database
determines their validity.
Parameters
These parameters are displayed:
◆ VLAN – VLAN identifier. (Range: 1-4094)
