Chapter 5
| VLAN Configuration
IEEE 802.1Q VLANs
– 169 –
To show the configuration settings for VLAN groups:
1. Click VLAN, Static.
2. Select Show from the Action list.

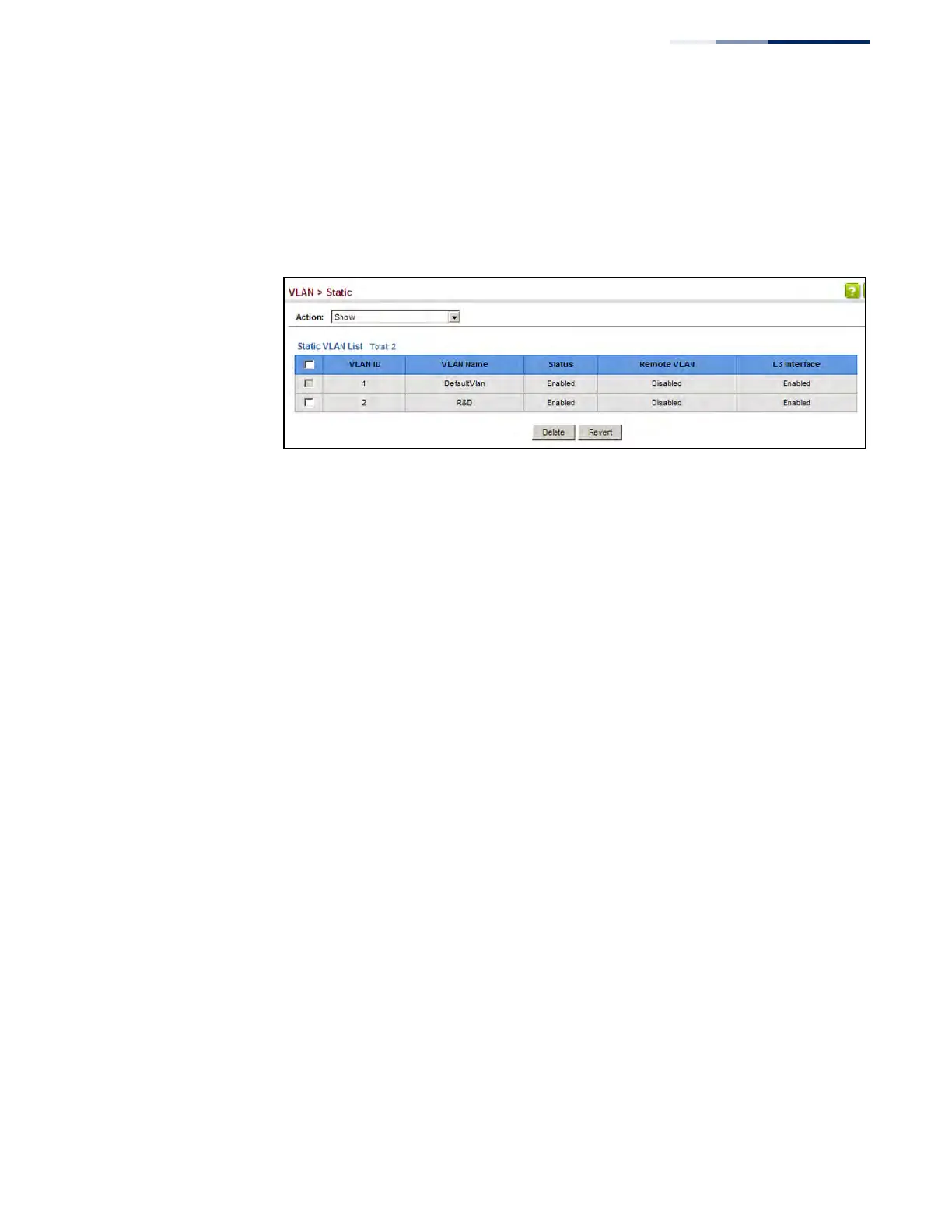

Figure 73: Showing Static VLANs
Adding Static
Members to VLANs
Use the VLAN > Static (Edit Member by VLAN, Edit Member by Interface, or Edit
Member by Interface Range) pages to configure port members for the selected
VLAN index, interface, or a range of interfaces. Use the menus for editing port
members to configure the VLAN behavior for specific interfaces, including the
mode of operation (Hybrid or 1Q Trunk), the default VLAN identifier (PVID),
accepted frame types, and ingress filtering. Assign ports as tagged if they are
connected to 802.1Q VLAN compliant devices, or untagged they are not connected
to any VLAN-aware devices. Or configure a port as forbidden to prevent the switch
from automatically adding it to a VLAN via the GVRP protocol.
Parameters
These parameters are displayed:
Edit Member by VLAN
◆ VLAN – ID of configured VLAN (1-4094).
◆ Interface – Displays a list of ports or trunks.
◆ Port – Port Identifier. (Range: 1-28/52)
◆ Trunk – Trunk Identifier. (Range: 1-16)
◆ Mode – Indicates VLAN membership mode for an interface. (Default: Hybrid)
■
Access - Sets the port to operate as an untagged interface. The port
transmits and receives untagged frames on a single VLAN only.
Access mode is mutually exclusive with VLAN trunking (see “VLAN
Trunking” on page 159). If VLAN trunking is enabled on an interface, then
that interface cannot be set to access mode, and vice versa.
