Chapter 13
| Basic Administration Protocols
Ethernet Ring Protection Switching
– 468 –
ERPS Global
Configuration
Use the Administration > ERPS (Configure Global) page to globally enable or
disable ERPS on the switch.
Parameters
These parameters are displayed:
◆ ERPS Status – Enables ERPS on the switch. (Default: Disabled)
ERPS must be enabled globally on the switch before it can enabled on an ERPS
ring (by setting the Admin Status on the Configure Domain – Configure Details
page).
Web Interface
To globally enable ERPS on the switch:
1. Click Administration, ERPS.
2. Select Configure Global from the Step list.
3. Mark the ERPS Status check box.
4. Click Apply.

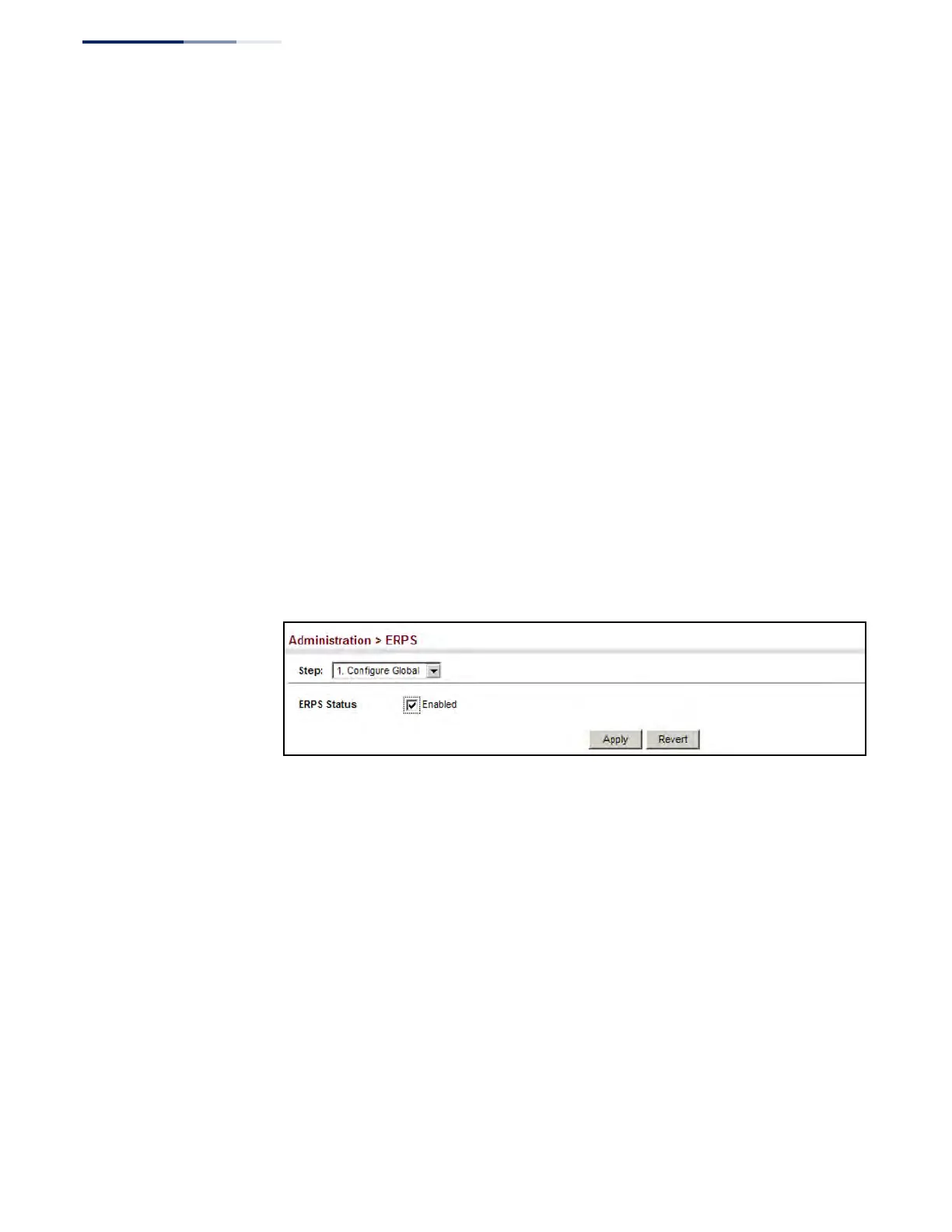

Figure 294: Setting ERPS Global Status
ERPS Ring
Configuration
Use the Administration > ERPS (Configure Domain) pages to configure ERPS rings.
Command Usage
Ring Initialization
An ERPS ring containing one Control VLAN and one or more protected Data VLANs
must be configured, and the global ERPS function enabled on the switch (see “ERPS
Global Configuration” on page 468) before a ring can start running. Once enabled,
the RPL owner node and non-owner node state machines will start, and the ring
will enter the active state.
Limitations
When configuring a ring port, note that these ports cannot be part of a spanning
tree, nor can they be members of a static or dynamic trunk.
