Chapter 14
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 608 –

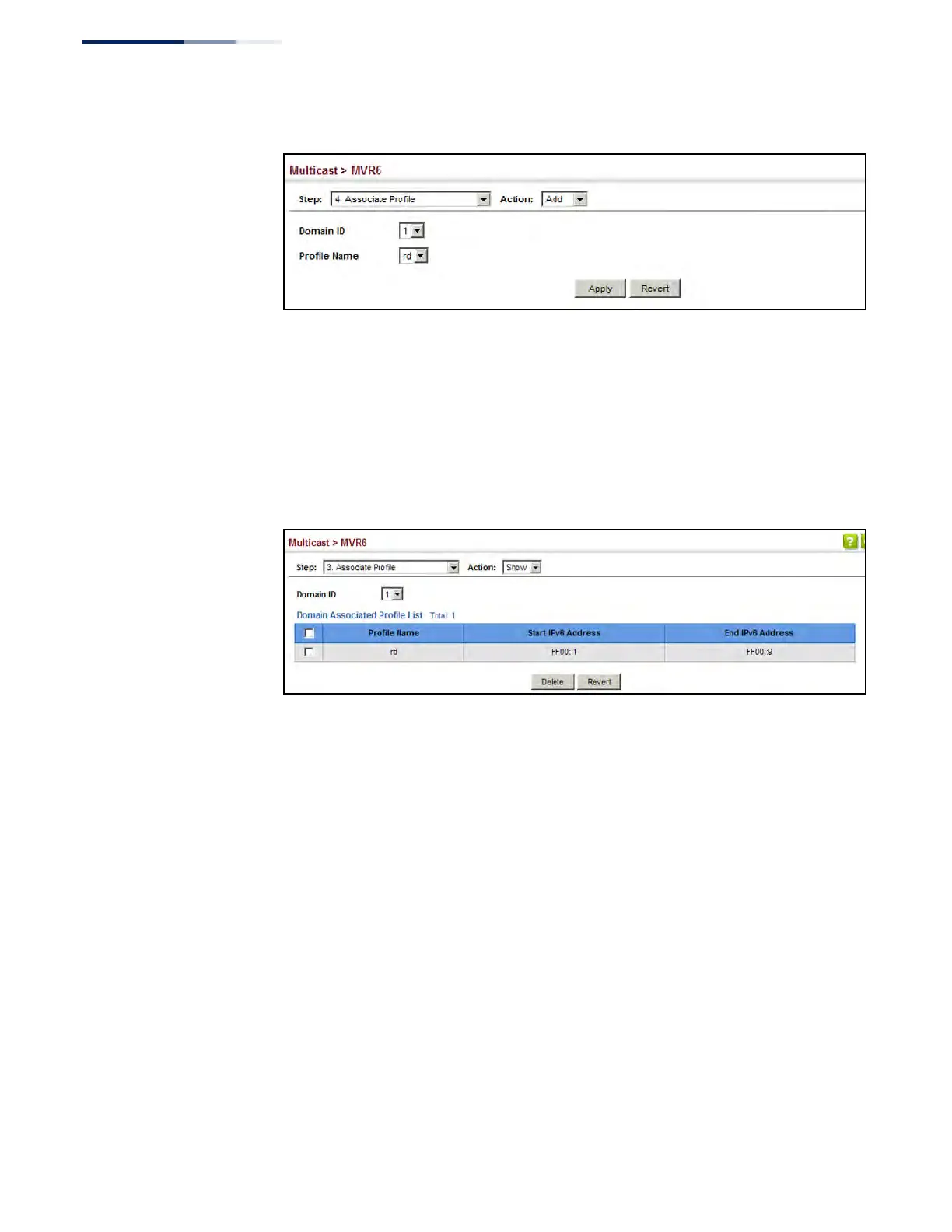

Figure 390: Assigning an MVR6 Group Address Profile to a Domain
To show the MVR6 group address profiles assigned to a domain:
1. Click Multicast, MVR6.
2. Select Associate Profile from the Step list.
3. Select Show from the Action list.
Figure 391: Showing MVR6 Group Address Profiles Assigned to a Domain
Configuring MVR6
Interface Status
Use the Multicast > MVR6 (Configure Interface) page to configure each interface
that participates in the MVR6 protocol as a source port or receiver port. If you are
sure that only one subscriber attached to an interface is receiving multicast
services, you can enable the immediate leave function.
Command Usage
◆ A port configured as an MVR6 receiver or source port can join or leave multicast
groups configured under MVR6. A port which is not configured as an MVR
receiver or source port can use MLD snooping to join or leave multicast groups
using the standard rules for multicast filtering (see “MLD Snooping (Snooping
and Query for IPv6)” on page 566).
◆ Receiver ports can belong to different VLANs, but should not be configured as a
member of the MVR6 VLAN. MVR6 allows a receiver port to dynamically join or
leave multicast groups sourced through the MVR6 VLAN. Multicast groups can
also be statically assigned to a receiver port (see “Assigning Static MVR
Multicast Groups to Interfaces” on page 594).
Receiver ports should not be statically configured as a member of the MVR6
VLAN. If so configured, its MVR6 status will be inactive. Also, note that VLAN
