Chapter 12
| Security Measures
Access Control Lists
– 333 –
3. Select Add Rule from the Action list.
4. Select IPv6 Extended from the Type list.
5. Select the name of an ACL from the Name list.
6. Specify the action (i.e., Permit or Deny).
7. Select the address type (Any or IPv6-prefix).
8. If you select “Host,” enter a specific address. If you select “IPv6-prefix,” enter a
subnet address and prefix length.
9. Set any other required criteria, such as DSCP or next header type.
10. Click Apply.

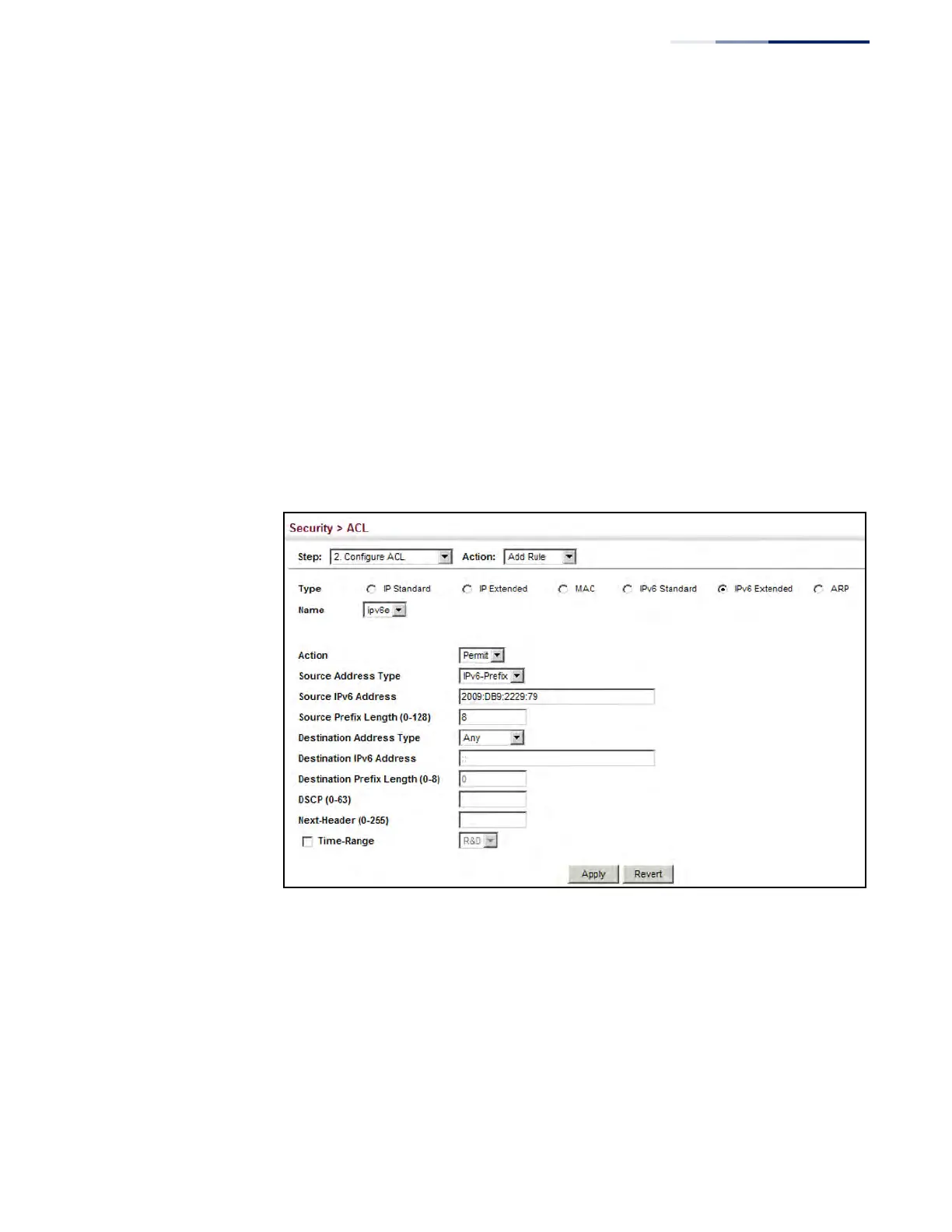

Figure 203: Configuring an Extended IPv6 ACL
Configuring a
MAC ACL
Use the Security > ACL (Configure ACL - Add Rule - MAC) page to configure a MAC
ACL based on hardware addresses, packet format, and Ethernet type.
Parameters
These parameters are displayed:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
