BSR or from a C-BSR with higher weight than the current BSR will be
accepted.
■
Candidate BSR – Bidding in election process.
■
Pending-BSR – The router is a candidate to be the BSR for the RP-set.
Currently, no other router is the preferred BSR, but this router is not yet the
elected BSR.
■
Elected BSR – Elected to serve as BSR.
Web Interface
To display information about the BSR:
1. Click Routing Protocol, PIM6, SM.
2. Select Show Information from the Step list.
3. Select Show BSR Router from the Action list.

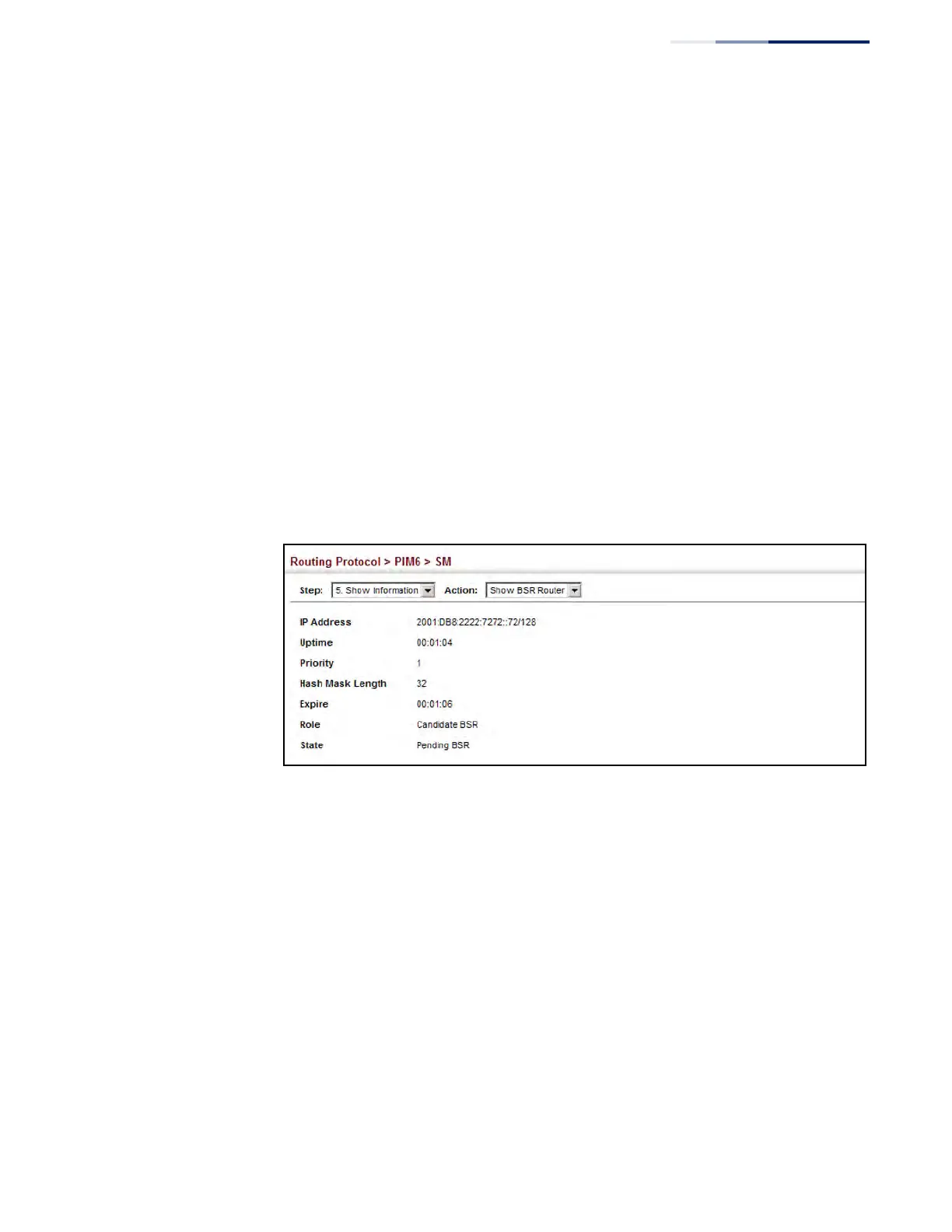

Figure 544: Showing Information About the PIM6 BSR
Displaying
RP Mapping
Use the Routing Protocol > PIM6 > SM (Show Information – Show RP Mapping)
page to display active RPs and associated multicast routing entries.
Parameters
These parameters are displayed:
◆ Groups – A multicast group address.
◆ RP Address – IP address of the RP for the listed multicast group.
◆ Information Source – RP that advertised the mapping, how the RP was
selected (Static or Bootstrap), and the priority used in the bidding process.
◆ Uptime – The time this RP has been up and running
◆ Expire – The time before this entry will be removed.
