Parameters
These parameters are displayed:
◆ VLAN ID – ID of configured VLAN.
◆ Server IP Address – Addresses of DHCP servers or relay servers to be used by
the switch’s DHCP relay agent in order of preference.
◆ Restart DHCP Relay – Use this button to re-initialize DHCP relay service.
Web Interface
To configure DHCP relay service:
1. Click IP Service, DHCP, Relay.
2. Enter up to five IP addresses for DHCP servers or relay servers in order of
preference for any VLAN.
3. Click Apply.

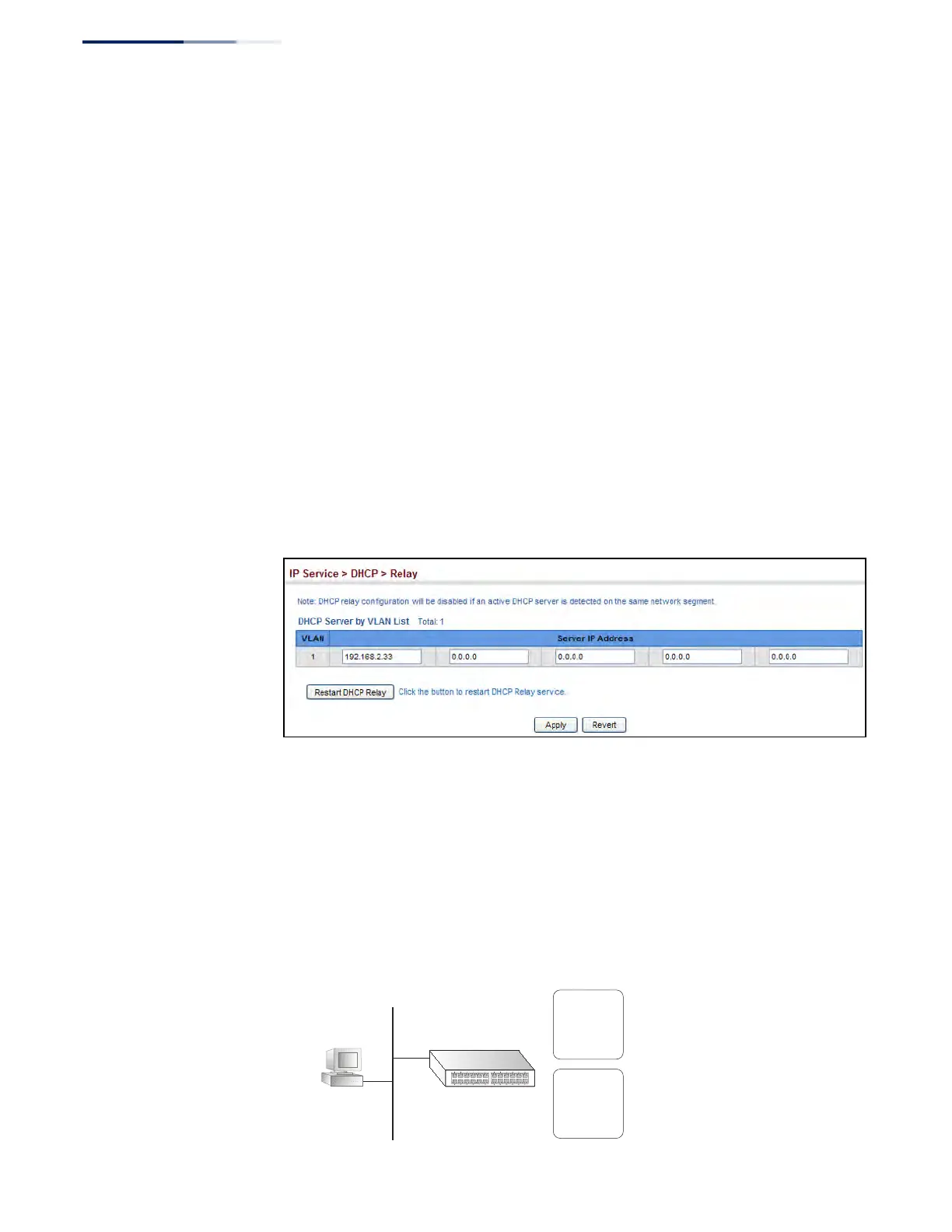

Figure 423: Configuring DHCP Relay Service
Configuring the
DHCP Server
This switch includes a Dynamic Host Configuration Protocol (DHCP) server that can
assign temporary IP addresses to any attached host requesting service. It can also
provide other network settings such as the domain name, default gateway, Domain
Name Servers (DNS), Windows Internet Naming Service (WINS) name servers, or
information on the bootup file for the host device to download.
Addresses can be assigned to clients from a common address pool configured for a
specific IP interface on this switch, or fixed addresses can be assigned to hosts
based on the client identifier code or MAC address.
Figure 424: DHCP Server
8 network
address pools
Address
Pool
Static
Addresses
32 static addresses
(all within the confines
of configured network
address pools)
