Chapter 6
| Address Table Settings
Displaying the Dynamic Address Table
– 202 –
Parameters
These parameters are displayed:
â—† Sort Key - You can sort the information displayed based on MAC address, VLAN
or interface (port or trunk).
◆ MAC Address – Physical address associated with this interface.
◆ VLAN – ID of configured VLAN (1-4094).
◆ Interface – Indicates a port or trunk.
◆ Type – Shows that the entries in this table are learned.
(Values: Learned or Security, the last of which indicates Port Security)
◆ Life Time – Shows the time to retain the specified address.
Web Interface
To show the dynamic address table:
1. Click MAC Address, Dynamic.
2. Select Show Dynamic MAC from the Action list.
3. Select the Sort Key (MAC Address, VLAN, or Interface).
4. Enter the search parameters (MAC Address, VLAN, or Interface).
5. Click Query.

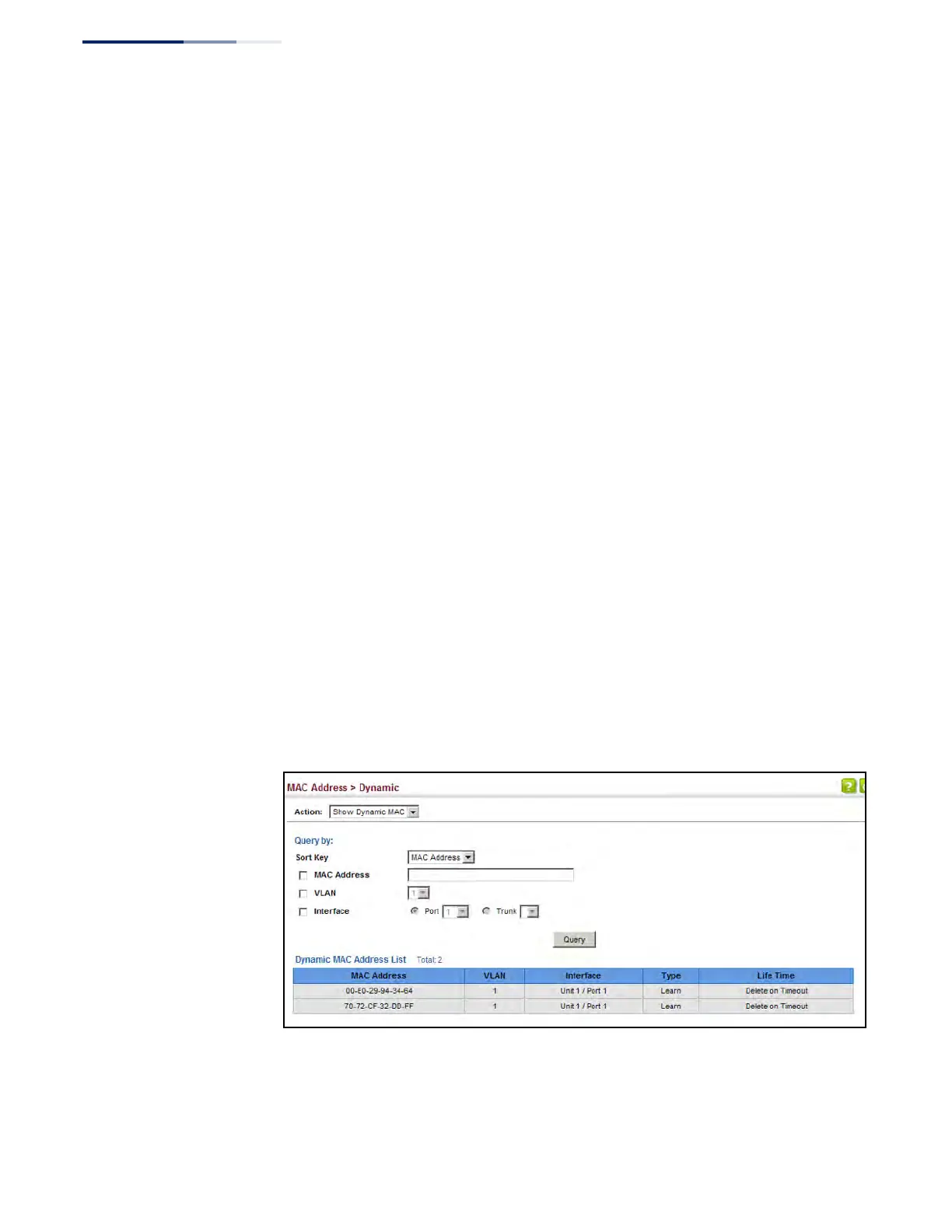

Figure 103: Displaying the Dynamic MAC Address Table
