Chapter 4
| Interface Configuration
Trunk Configuration
– 142 –
To display trunk connection parameters:
1. Click Interface, Trunk, Static.
2. Select Configure General from the Step list.
3. Select Show Information from the Action list.

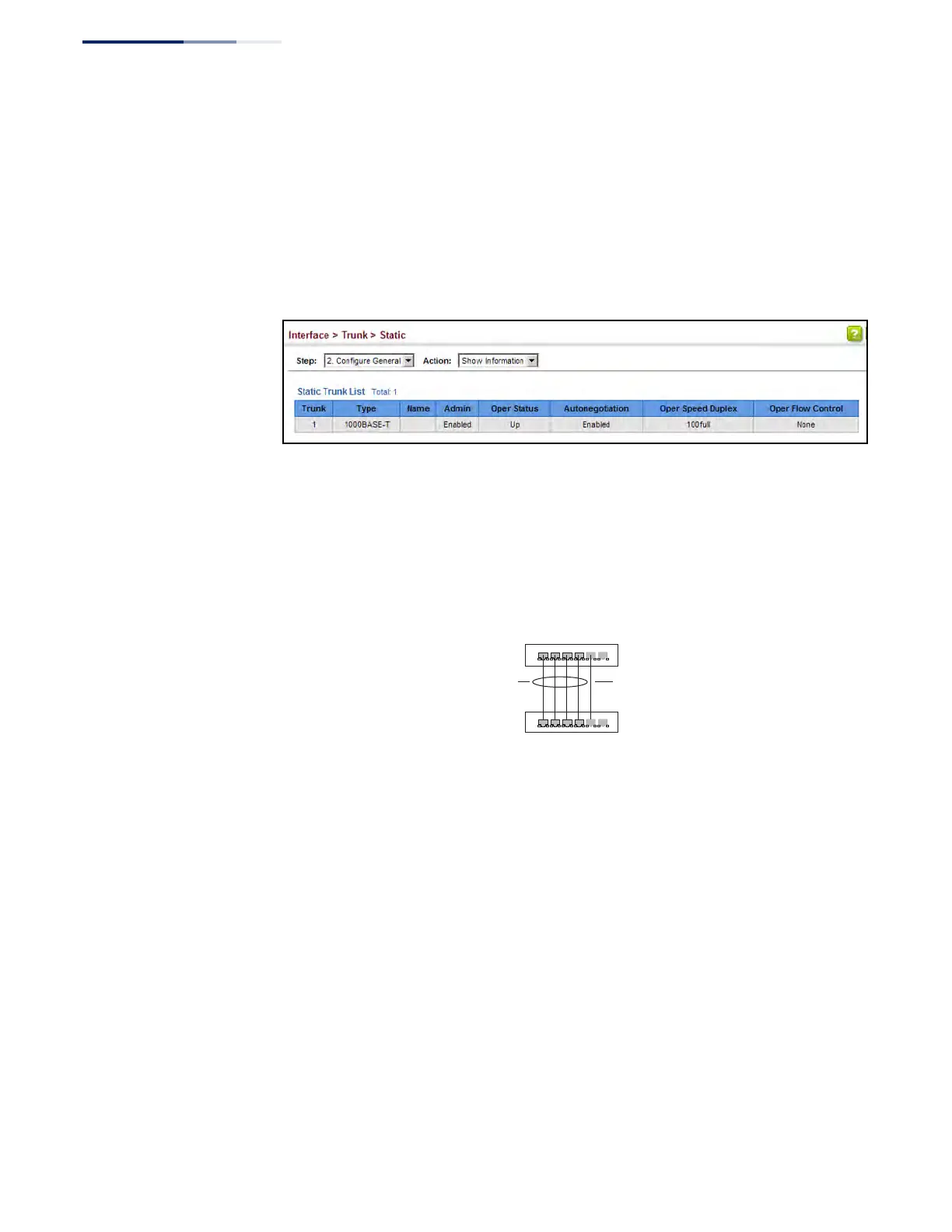

Figure 51: Showing Information for Static Trunks
Configuring a
Dynamic Trunk
Use the Interface > Trunk > Dynamic pages to set the administrative key for an
aggregation group, enable LACP on a port, configure protocol parameters for local
and partner ports, or to set Ethernet connection parameters.
Figure 52: Configuring Dynamic Trunks
Command Usage
â—† To avoid creating a loop in the network, be sure you enable LACP before
connecting the ports, and also disconnect the ports before disabling LACP.
â—† If the target switch has also enabled LACP on the connected ports, the trunk
will be activated automatically.
â—† A trunk formed with another switch using LACP will automatically be assigned
the next available trunk ID.
â—† If more than eight ports attached to the same target switch have LACP enabled,
the additional ports will be placed in standby mode, and will only be enabled if
one of the active links fails.
â—† All ports on both ends of an LACP trunk must be configured for full duplex, and
auto-negotiation.
active
links
}
}
dynamically
enabled
configured
members
backup
link
