Chapter 13
| Basic Administration Protocols
Connectivity Fault Management
– 499 –
5. Specify the manner in which MIPs can be created within each domain.
6. Click Apply.

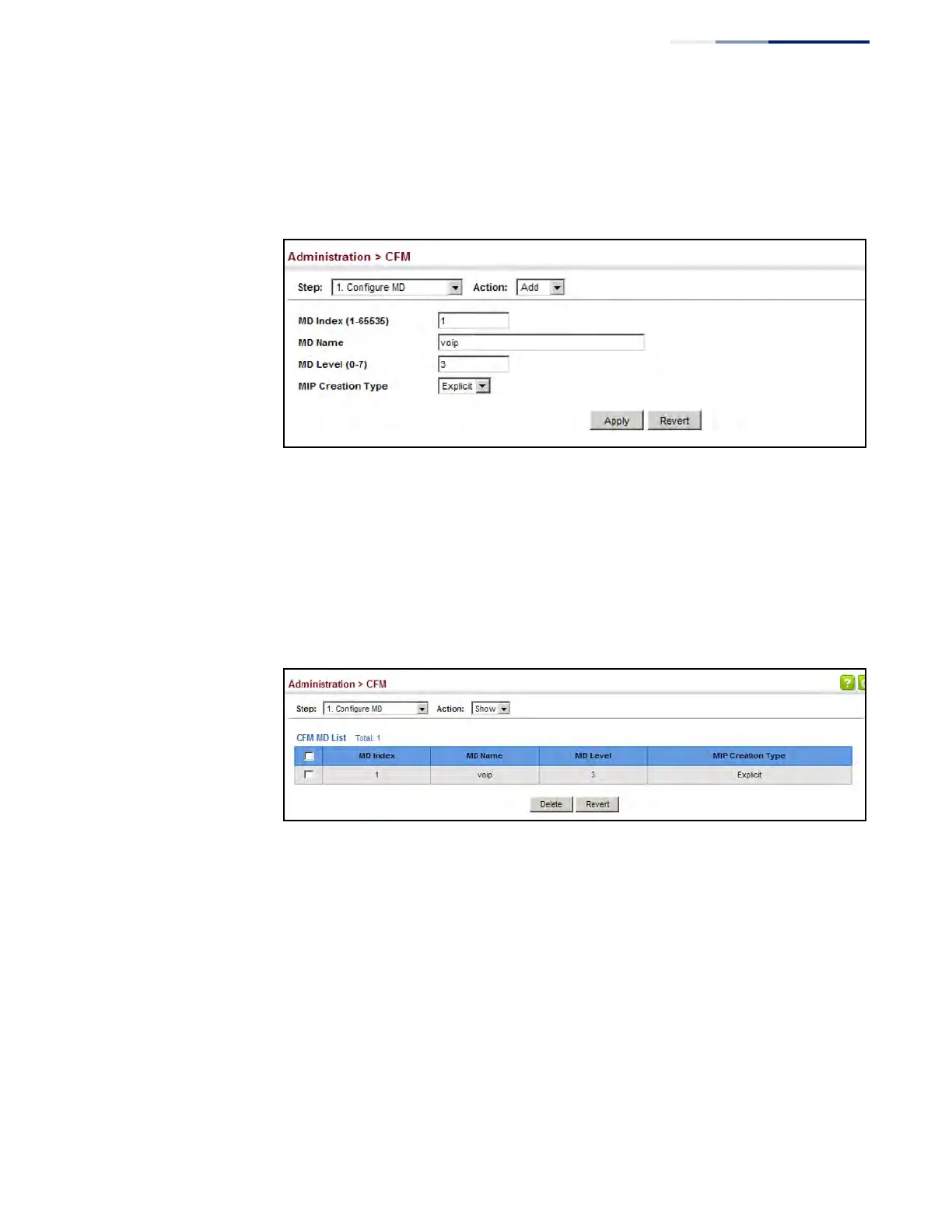

Figure 306: Configuring Maintenance Domains
To show the configured maintenance domains:
1. Click Administration, CFM.
2. Select Configure MD from the Step list.
3. Select Show from the Action list.
Figure 307: Showing Maintenance Domains
To configure detailed settings for maintenance domains:
1. Click Administration, CFM.
2. Select Configure MD from the Step list.
3. Select Configure Details from the Action list.
4. Select an entry from the MD Index.
5. Specify the MEP archive hold and MEP fault notification parameters.
6. Click Apply
