Chapter 13
| Basi
c Administr
ation P
rotoco
ls
UDLD Con
figura
tion
– 538
–
We
b
I
n
t
e
r
fa
c
e
T
o d
ispl
ay UDLD n
eig
hbor
inform
ation:
1.
Click Admi
nistratio
n, UDLD, Show Informatio
n.
2.
Select an int
erface from
the P
ort list.

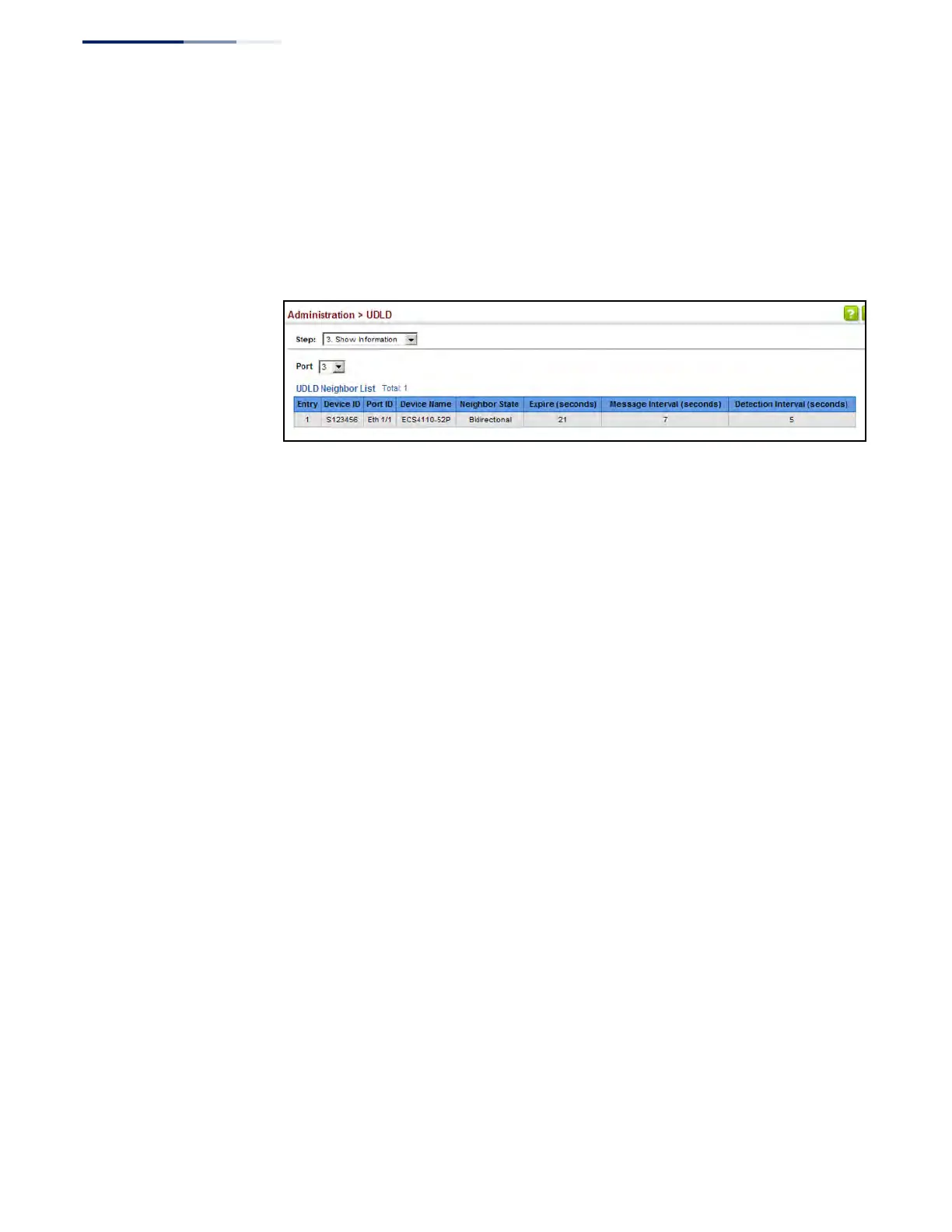

Figure 335:
Displaying
UDLD Neigh
bor Informatio
n
