Chapter 14
| Multi
cast F
iltering
Multicast VLAN Registrat
ion for IPv6
– 616
–
T
o display MVR6
protocol-related statistics for a VLAN
:
1.
Click M
ult
icast,
MVR6
.
2.
Select
Show Statistics from the
Step list.
3.
Select
Show VLAN Statisti
cs from the Acti
on list.
4.
Selec
t
an MVR6
dom
ain.
5.
Sel
ect a
V
LAN.

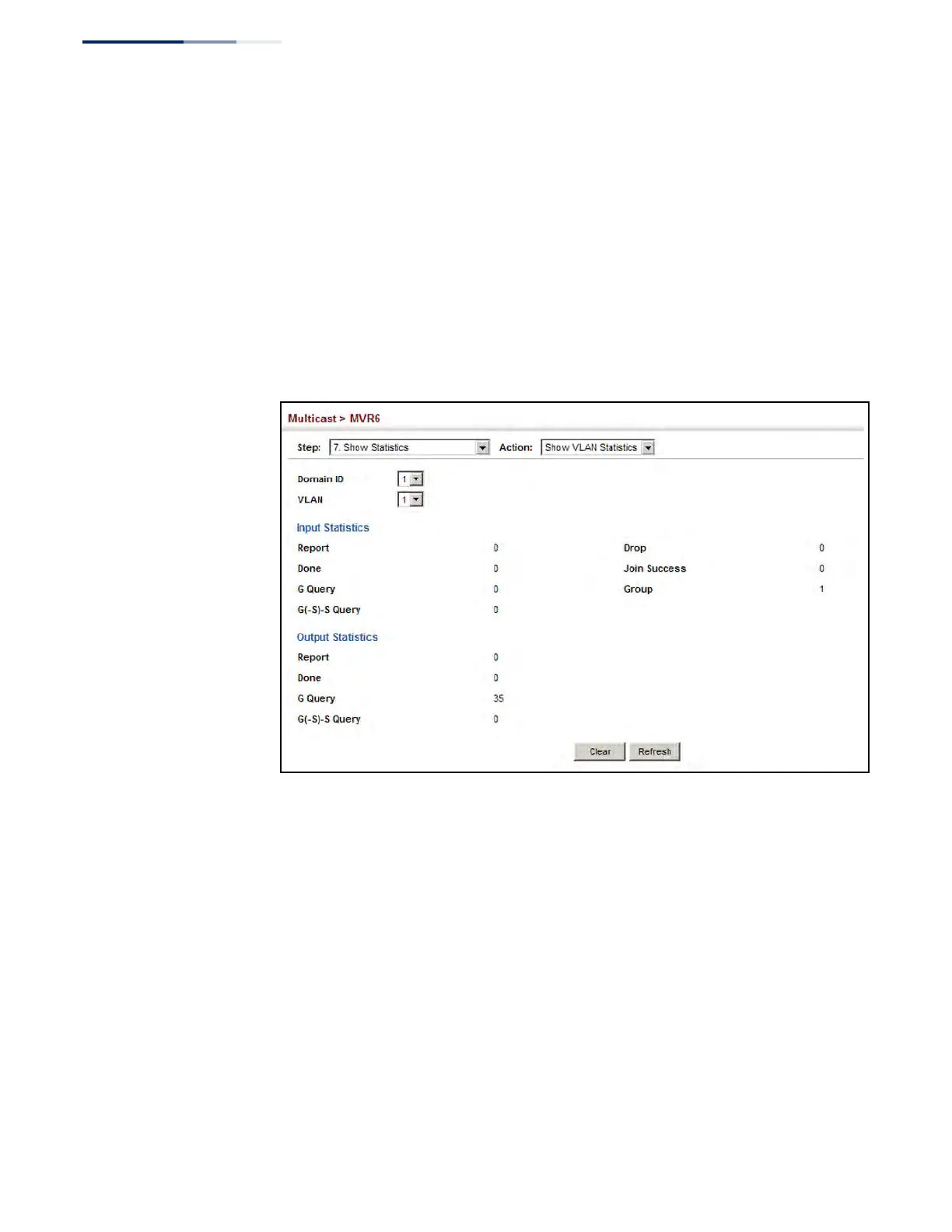

Figure 397:
Displaying
MVR6 Statistics –
VLAN
621
623
