Chapter 12
| Security Measures
Access Control Lists
– 337 –

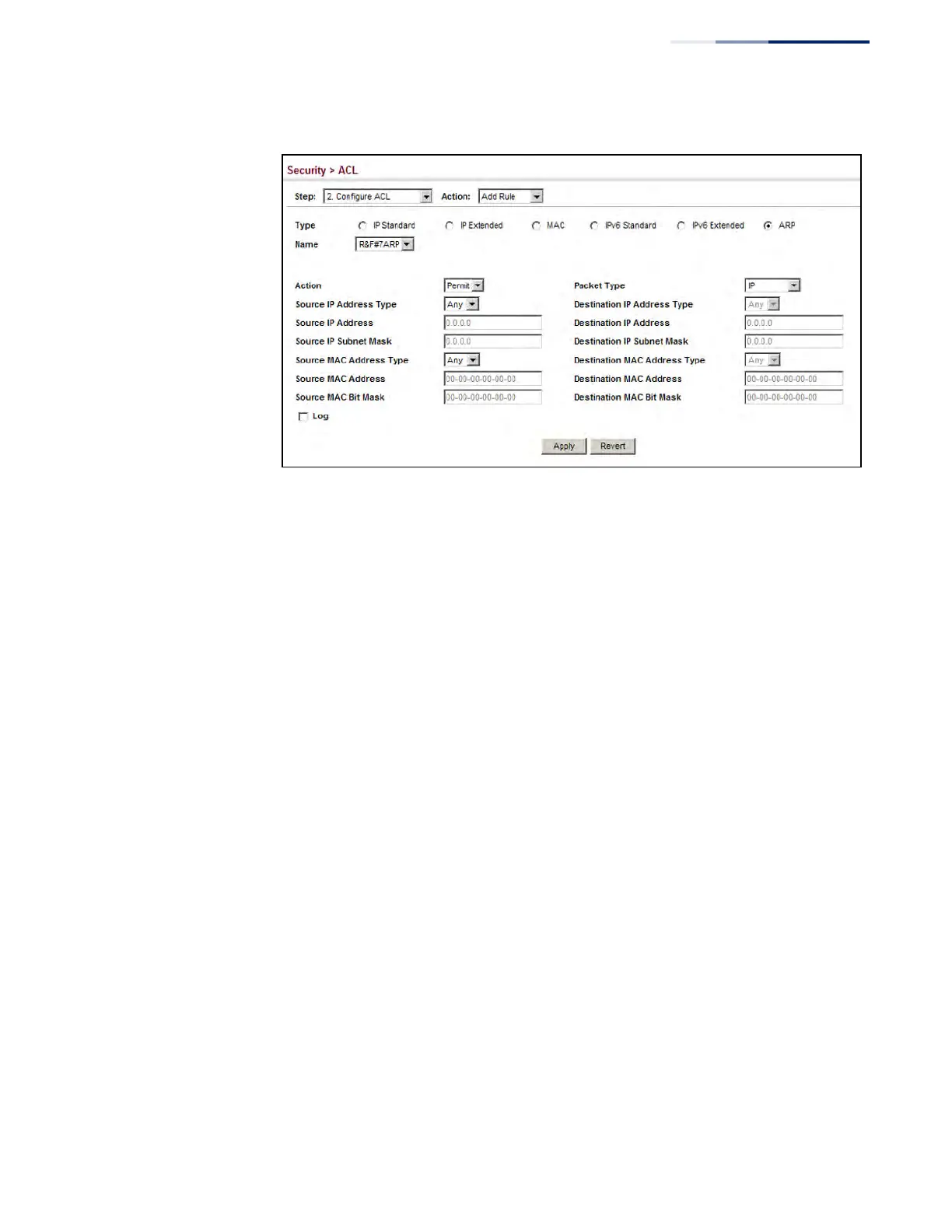

Figure 205: Configuring a ARP ACL
Binding a Port to an
Access Control List
After configuring ACLs, use the Security > ACL (Configure Interface – Configure)
page to bind the ports that need to filter traffic to the appropriate ACLs. You can
assign one IP access list and one MAC access list to any port.
Parameters
These parameters are displayed:
◆ Type – Selects the type of ACLs to bind to a port.
◆ Port – Port identifier.
◆ ACL – ACL used for ingress or egress packets.
◆ Time Range – Name of a time range.
◆ Counter – Enables counter for ACL statistics.
Web Interface
To bind an ACL to a port:
1. Click Security, ACL.
2. Select Configure Interface from the Step list.
3. Select IP, MAC or IPv6 from the Type list.
4. Select a port.
