Chapter 14
| Multicast Filtering
Multicast VLAN Registration for IPv4
– 587 –
◆ Proxy Query Interval – Configures the interval at which the receiver port
sends out general queries. (Range: 2-31744 seconds; Default: 125 seconds)
■
This parameter sets the general query interval at which active receiver
ports send out general queries.
■
This interval is only effective when proxy switching is enabled.
◆ Source Port Mode – Configures the switch to forward any multicast streams
within the parameters set by a profile, or to only forward multicast streams
which the source port has dynamically joined.
■
Always Forward – By default, the switch forwards any multicast streams
within the address range set by a profile, and bound to a domain. The
multicast streams are sent to all source ports on the switch and to all
receiver ports that have elected to receive data on that multicast address.
(This is the default setting.)
■
Dynamic – When dynamic mode is enabled, the switch only forwards
multicast streams which the source port has dynamically joined. In other
words, both the receiver port and source port must subscribe to a multicast
group before a multicast stream is forwarded to any attached client. Note
that the requested streams are still restricted to the address range which
has been specified in a profile and bound to a domain.
Web Interface
To configure global settings for MVR:
1. Click Multicast, MVR.
2. Select Configure Global from the Step list.
3. Set the status for MVR proxy switching, the robustness value used for report
and query messages, the proxy query interval, and source port mode.
4. Click Apply.

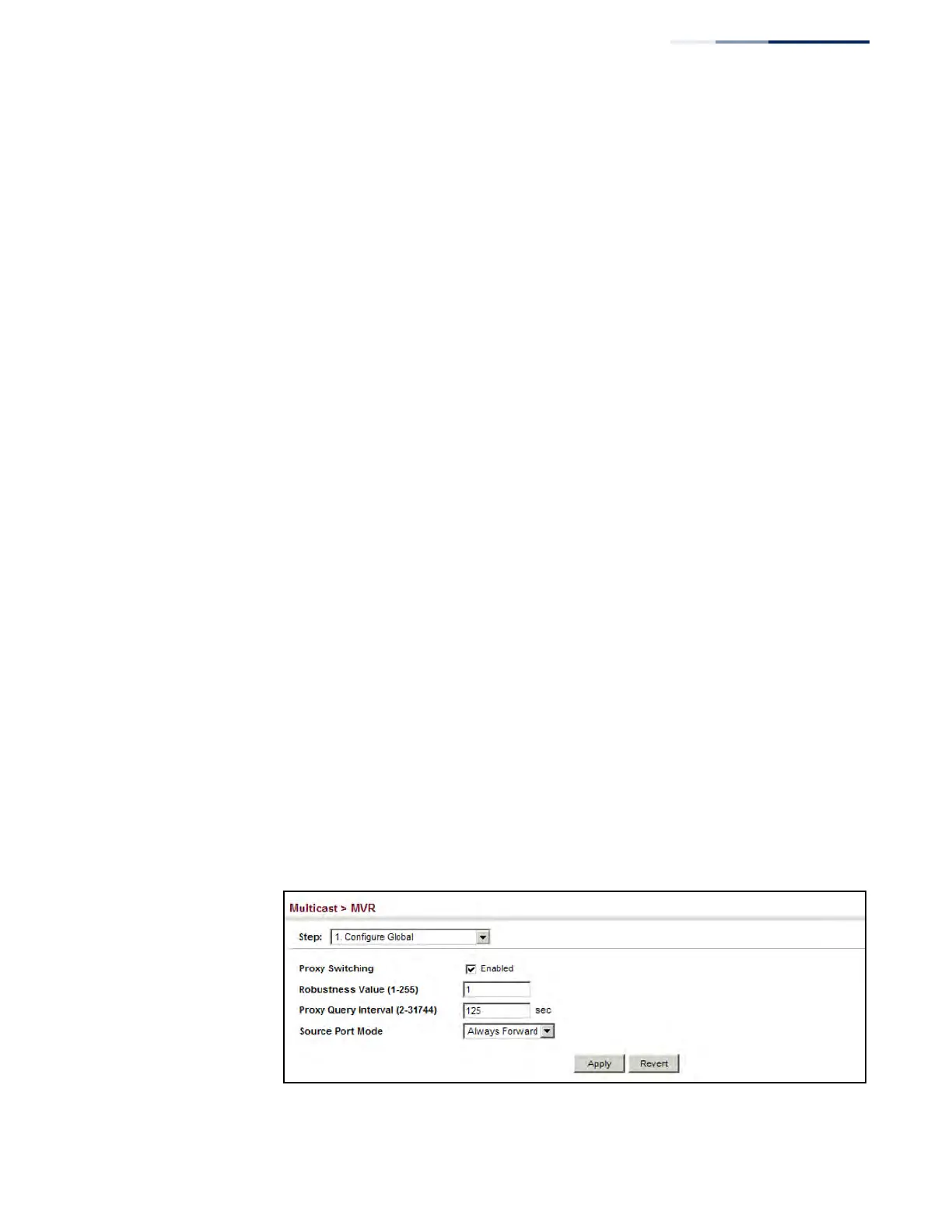

Figure 373: Configuring Global Settings for MVR
