Chapter 14
| Multicast Filtering
Multicast VLAN Regi
stration for IPv6
– 617
–
T
o display MVR6
protocol-related statistics for a por
t
:
1.
Click M
ult
icast,
MVR6
.
2.
Select
Show Statistics from the
Step list.
3.
Select Show Port Statistics
from the
Action list.
4.
Selec
t
an MVR6
dom
ain.
5.
Sel
ect a
P
o
rt.

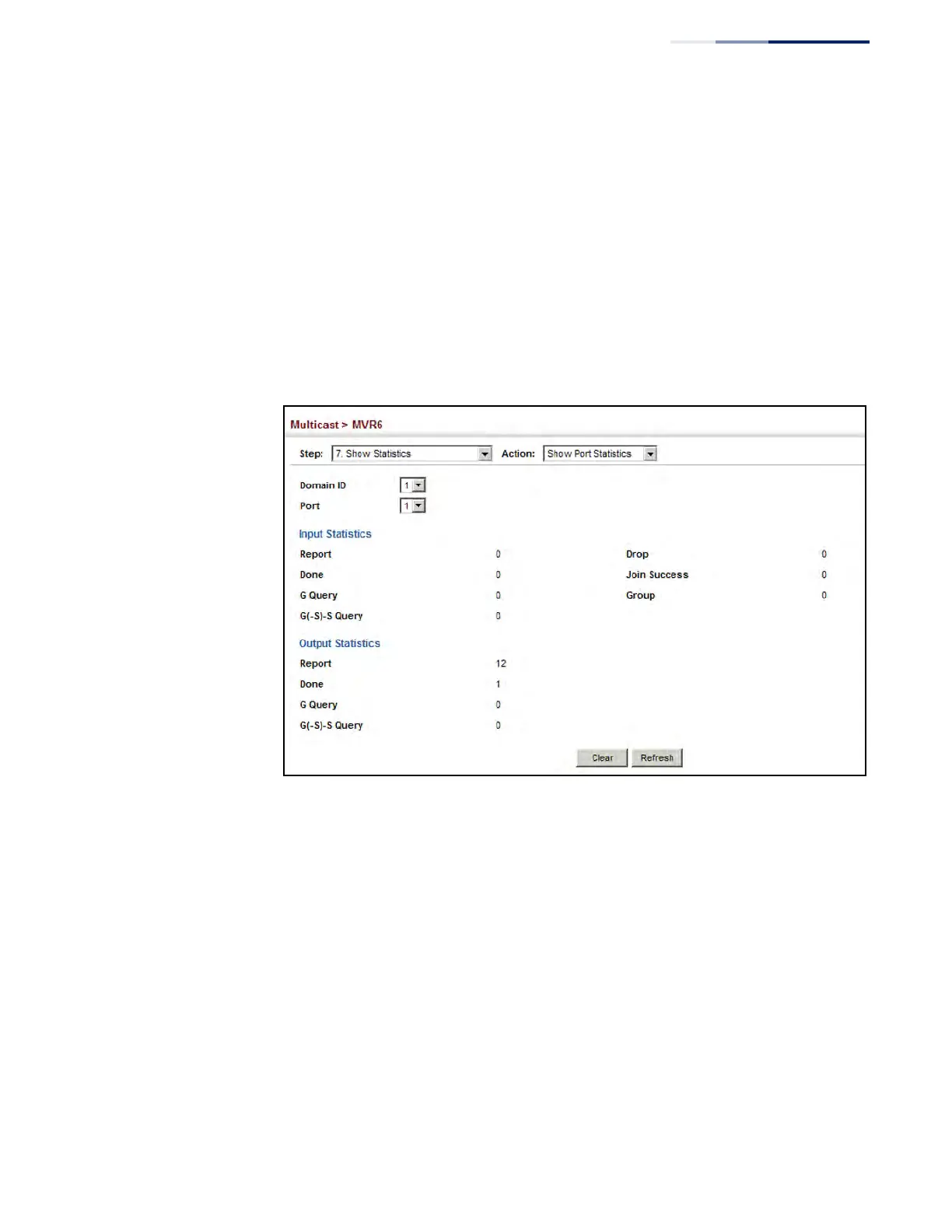

Figure 398:
Displaying
MVR6 Statistics –
Port
622
