Chapter 10
| Quality of
Service
Config
urin
g a Class Ma
p
– 259
–

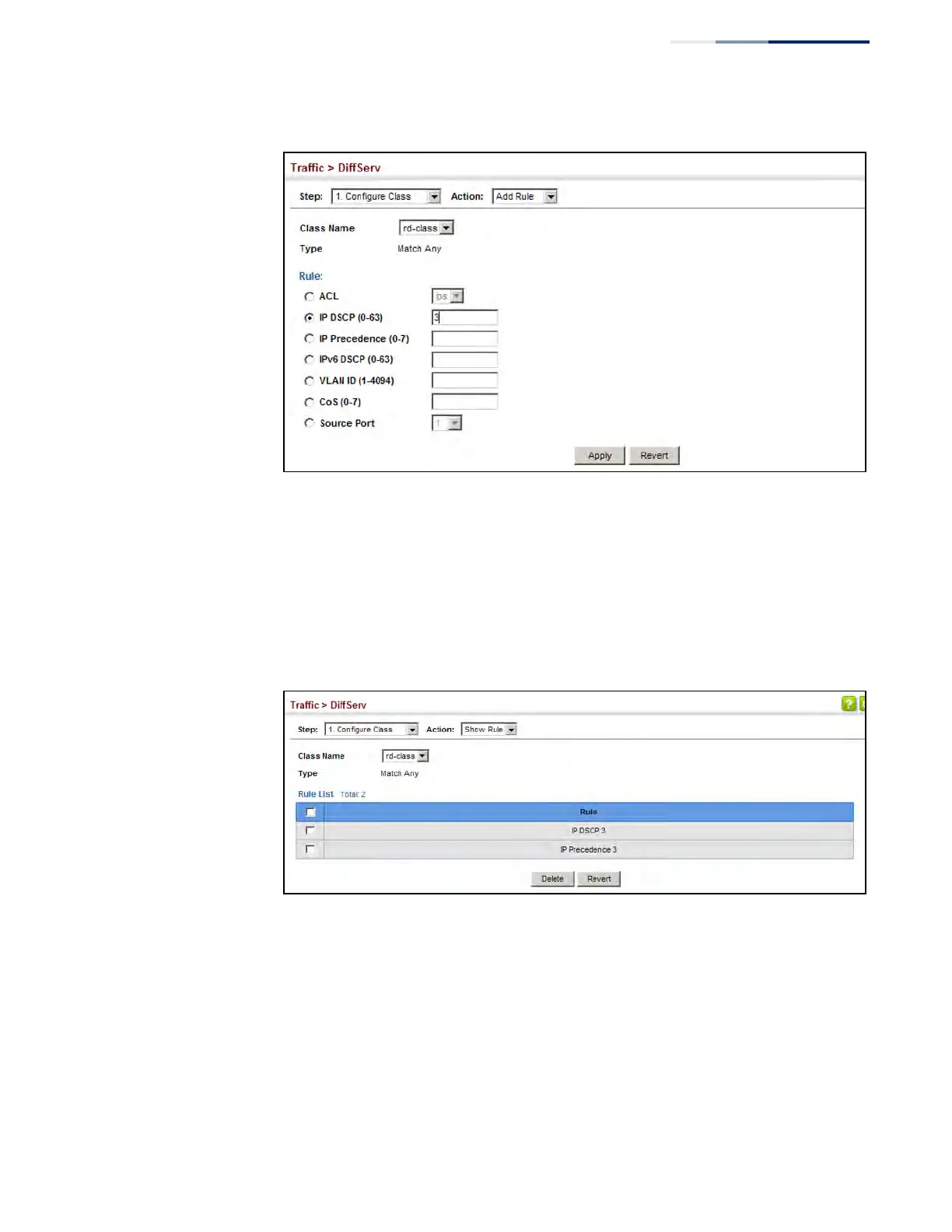

Figure
147: Adding Rules to a Cl
ass Map
T
o show the rules for a
class map:
1.
Click T
raffic, DiffServ
.
2.
Selec
t Configure Class from the Ste
p list.
3.
Sele
ct Sh
ow Rule from th
e Action
list.
Figure 14
8: Showing
the Rul
es for a
Class M
ap
