Chapter 14
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 610 –
“Active” only if there are subscribers receiving multicast traffic from one of the
MVR6 groups, or a multicast group has been statically assigned to an interface.
◆ Immediate Leave – Configures the switch to immediately remove an interface
from a multicast stream as soon as it receives a leave message for that group.
(This option only applies to an interface configured as an MVR6 receiver.)
Web Interface
To configure interface settings for MVR6:
1. Click Multicast, MVR6.
2. Select Configure Interface from the Step list.
3. Select an MVR6 domain.
4. Click Port or Trunk.
5. Set each port that will participate in the MVR6 protocol as a source port or
receiver port, and optionally enable Immediate Leave on any receiver port to
which only one subscriber is attached.
6. Click Apply.

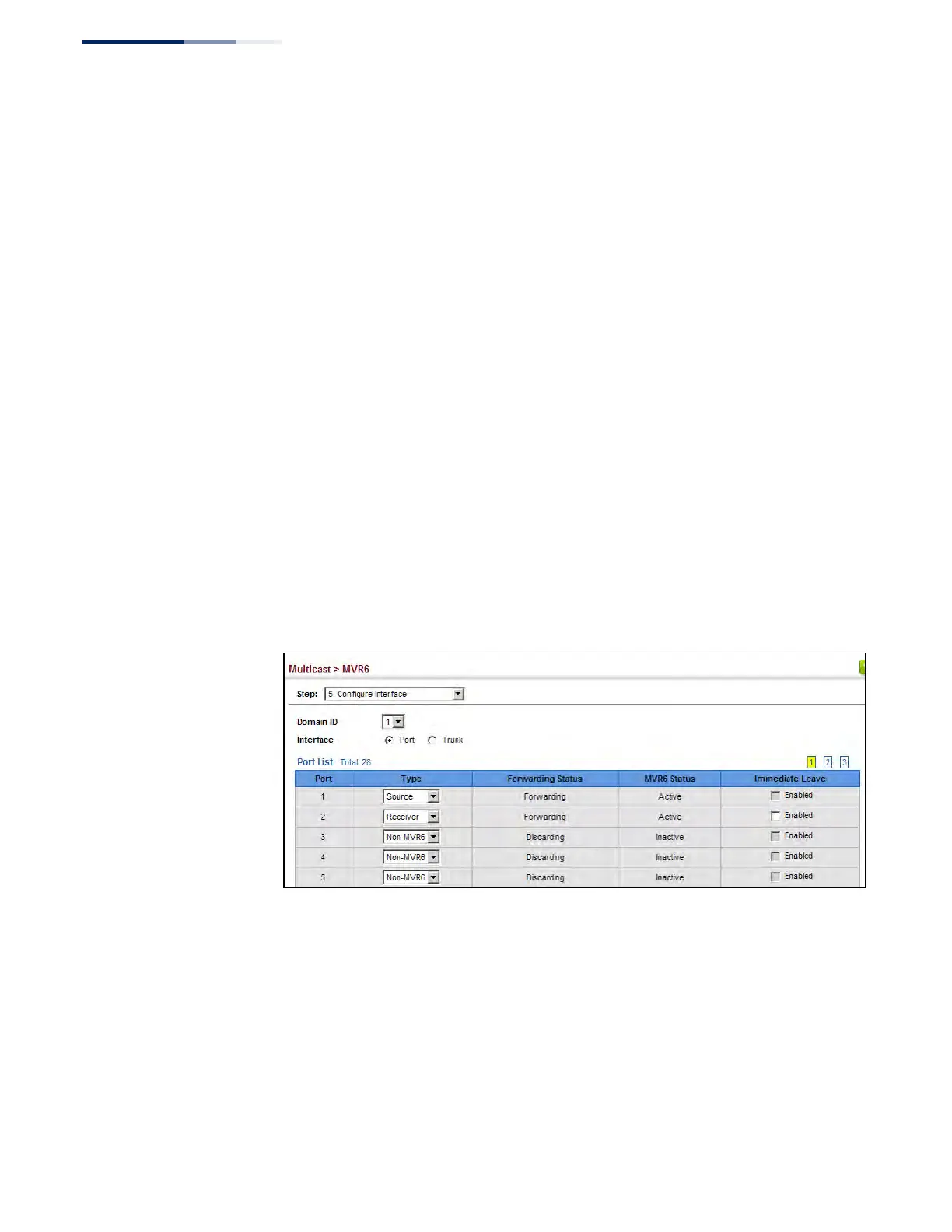

Figure 392: Configuring Interface Settings for MVR6
Assigning Static
MVR6 Multicast
Groups to Interfaces
Use the Multicast > MVR6 (Configure Static Group Member) page to statically bind
multicast groups to a port which will receive long-term multicast streams
associated with a stable set of hosts.
Command Usage
◆ Multicast groups can be statically assigned to a receiver port using this
configuration page.
◆ All IPv6 addresses must be according to RFC 2373 “IPv6 Addressing
Architecture,” using 8 colon-separated 16-bit hexadecimal values. One double
