Chapter 13
| Basi
c Administr
ation P
rotoco
ls
Remote Monito
ring
– 450
–

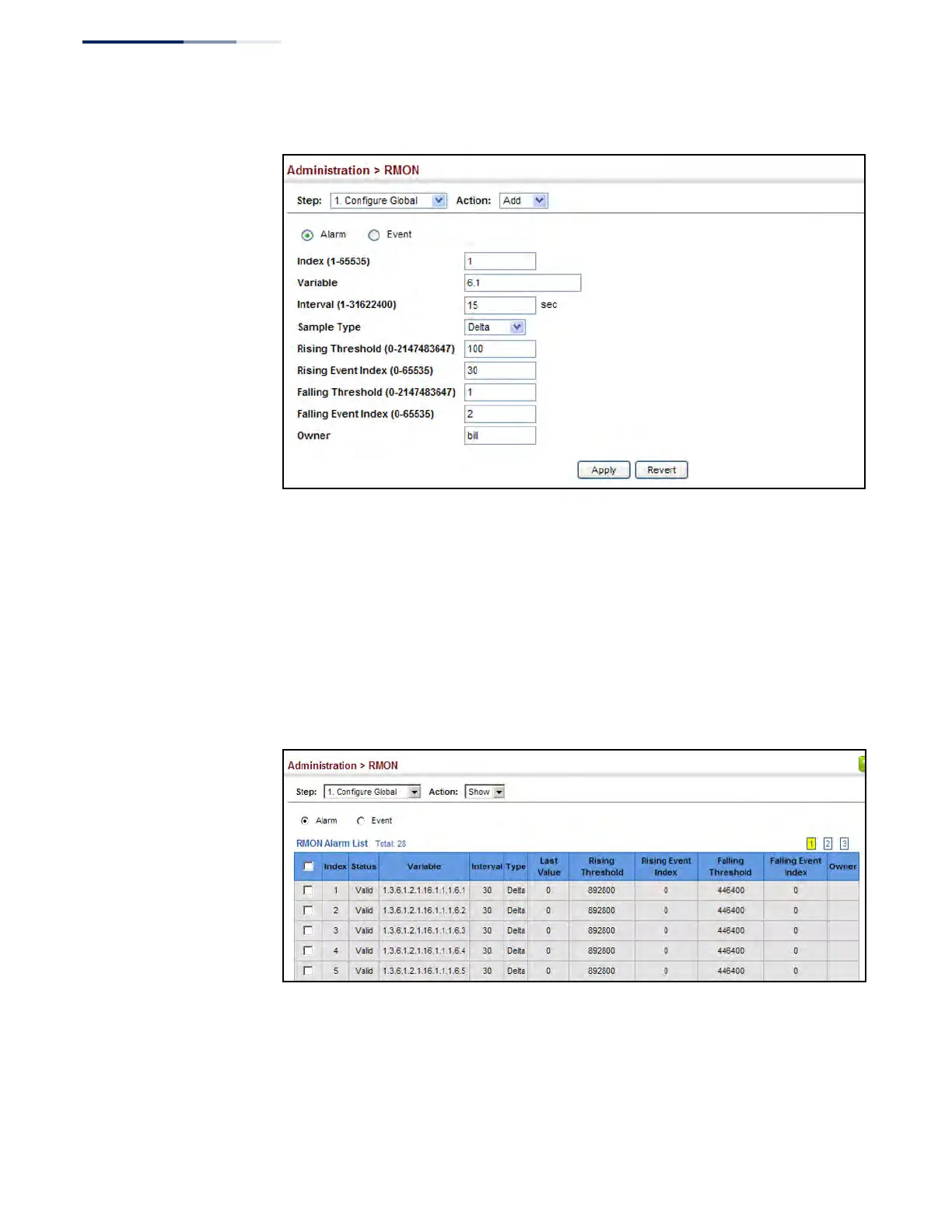

Figure 277:
Configu
ring an RMON
Alarm
T
o show configured RMON alarms
:
1.
Click Administration, RMON.
2.
Select Configur
e Global from the Step list.
3.
Select
Show from the Action list.
4.
Click Alarm.
Figure 27
8: Showing
Configu
red RMON Ala
rms
