Chapter 14
| Multicast Filtering
Layer 3 IGMP (Query used with Multicast Routing)
– 581 –
◆ Source Address – The source address of a multicast server transmitting traffic
to the specified multicast group address.
Web Interface
To configure static IGMP groups:
1. Click Multicast, IGMP, Static Group.
2. Select Add from the Action list.
3. Select a VLAN interface to be assigned as a static multicast group member, and
then specify the multicast group. If source-specific multicasting is supported by
the next hop router in the reverse path tree for the specified multicast group,
then the source address should also be specified.
4. Click Apply.

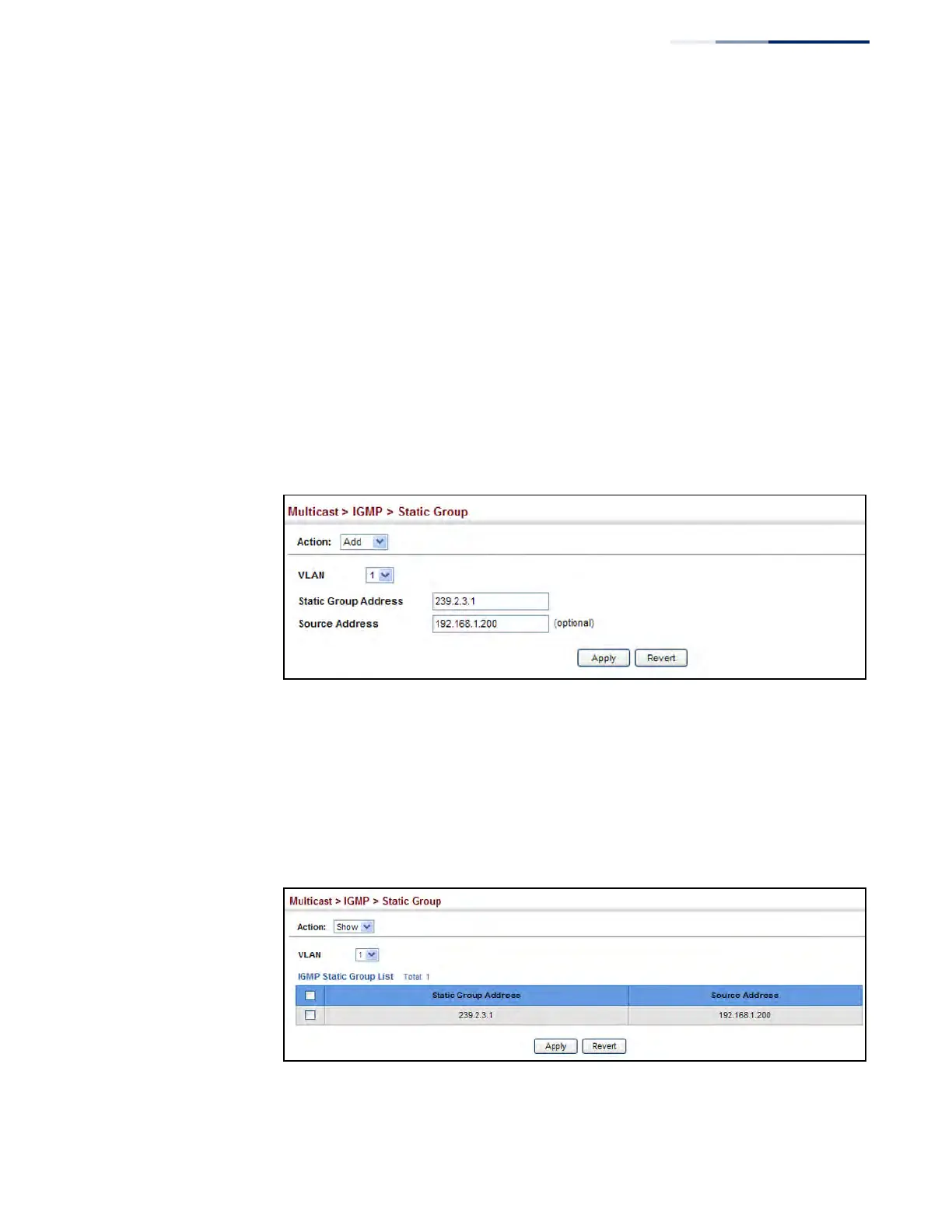

Figure 368: Configuring Static IGMP Groups
To display configured static IGMP groups:
1. Click Multicast, IGMP, Static Group.
2. Select Show from the Action list.
3. Click Apply.
Figure 369: Showing Static IGMP Groups
