Chapter 14
| Multicast Filtering
Multicast VLAN Registration for IPv6
– 612 –
To show the static MVR6 groups assigned to an interface:
1. Click Multicast, MVR6.
2. Select Configure Static Group Member from the Step list.
3. Select Show from the Action list.
4. Select an MVR6 domain.
5. Select the port or trunk for which to display this information.

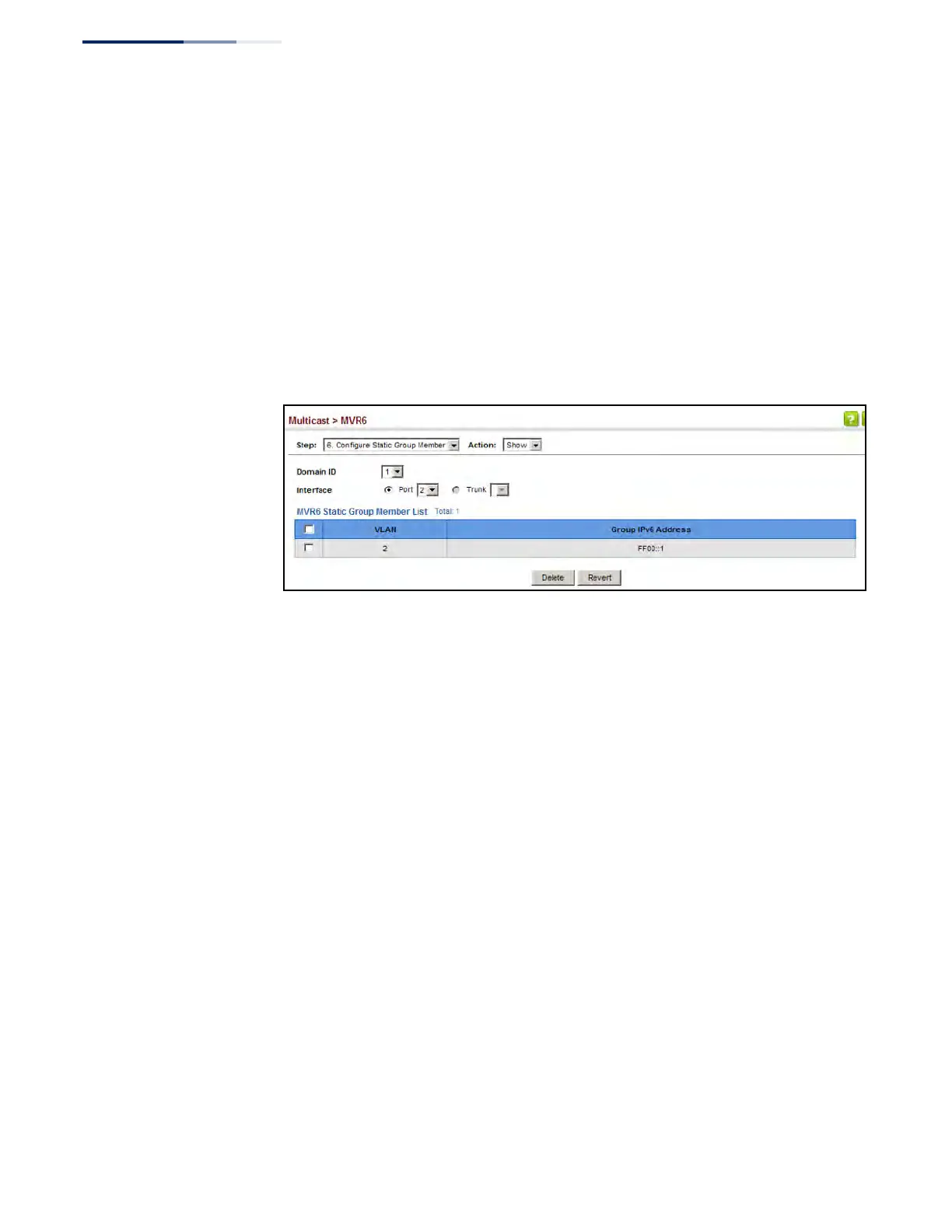

Figure 394: Showing the Static MVR6 Groups Assigned to a Port
Displaying MVR6
Receiver Groups
Use the Multicast > MVR6 (Show Member) page to show the multicast groups
either statically or dynamically assigned to the MVR6 receiver groups on each
interface.
Parameters
These parameters are displayed:
◆ Domain ID – An independent multicast domain. (Range: 1-5)
◆ Group IPv6 Address – Multicast groups assigned to the MVR6 VLAN.
◆ VLAN – The VLAN through which the service is received. Note that this may be
different from the MVR6 VLAN if the group address has been statically assigned.
◆ Port – Indicates the source address of the multicast service, or displays an
asterisk if the group address has been statically assigned (these entries are
marked as “Source”). Also shows the interfaces with subscribers for multicast
services provided through the MVR6 VLAN (these entries are marked as
“Receiver”).
◆ Up Time – Time this service has been forwarded to attached clients.
◆ Expire – Time before this entry expires if no membership report is received
from currently active or new clients.
