Chapter 20
| Multicast Routing
Configuring PIM for IPv4
– 774 –
Displaying
PIM RP Mapping
Use the Routing Protocol > PIM > SM (Show Information – Show RP Mapping) page
to display active RPs and associated multicast routing entries.
Parameters
These parameters are displayed:
◆ Groups – A multicast group address.
◆ RP Address – IP address of the RP for the listed multicast group.
◆ Information Source – RP that advertised the mapping, how the RP was
selected (Static or Bootstrap), and the priority used in the bidding process.
◆ Uptime – The time this RP has been up and running
◆ Expire – The time before this entry will be removed.
Web Interface
To display the RPs mapped to multicast groups:
1. Click Multicast, Multicast Routing, SM.
2. Select Show Information from the Step list.
3. Select Show RP Mapping from the Action list.

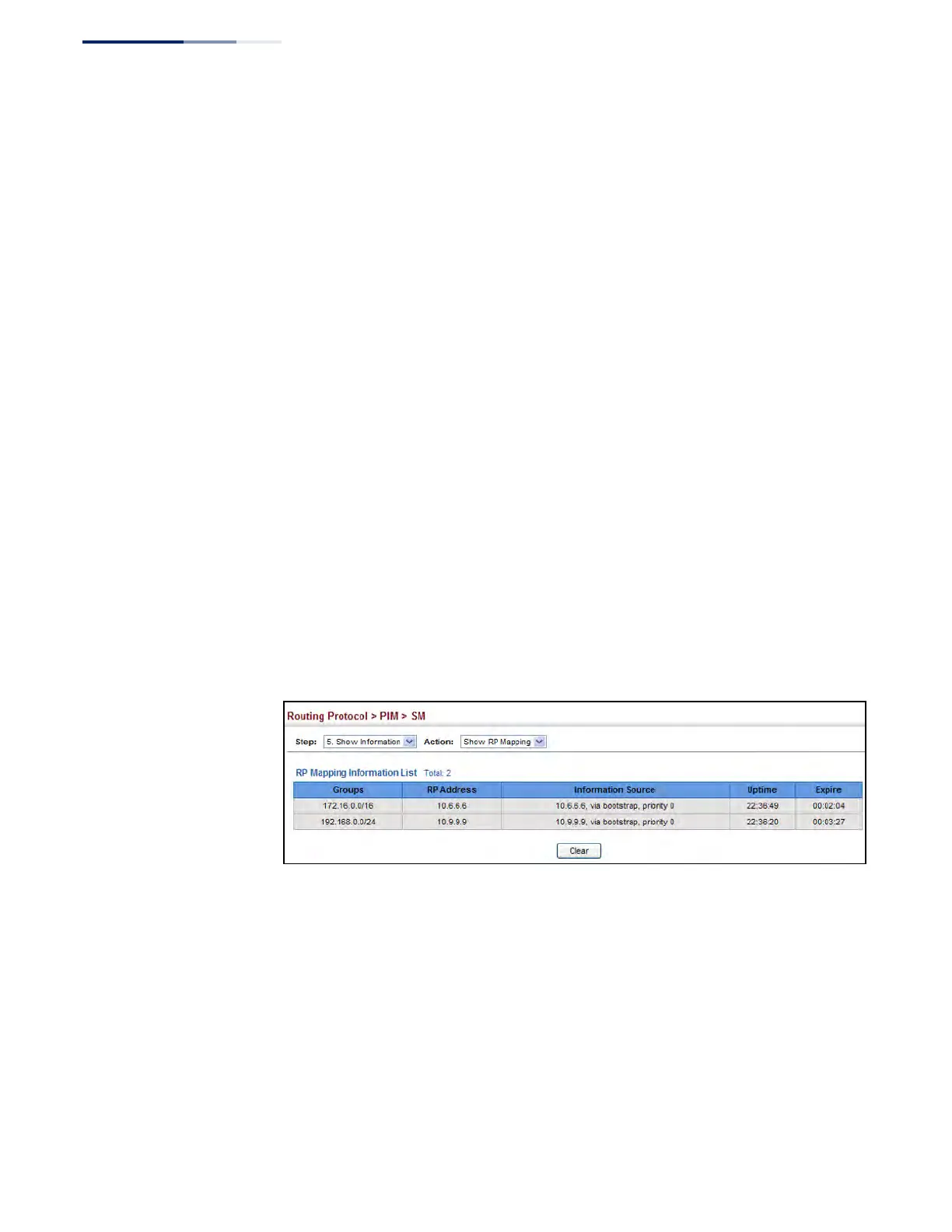

Figure 533: Showing PIM RP Mapping
