Chapter 13
| Basic Administration Protocols
OAM Configuration
– 528 –
Web Interface
To display statistics for OAM messages:
1. Click Administration, OAM, Counters.

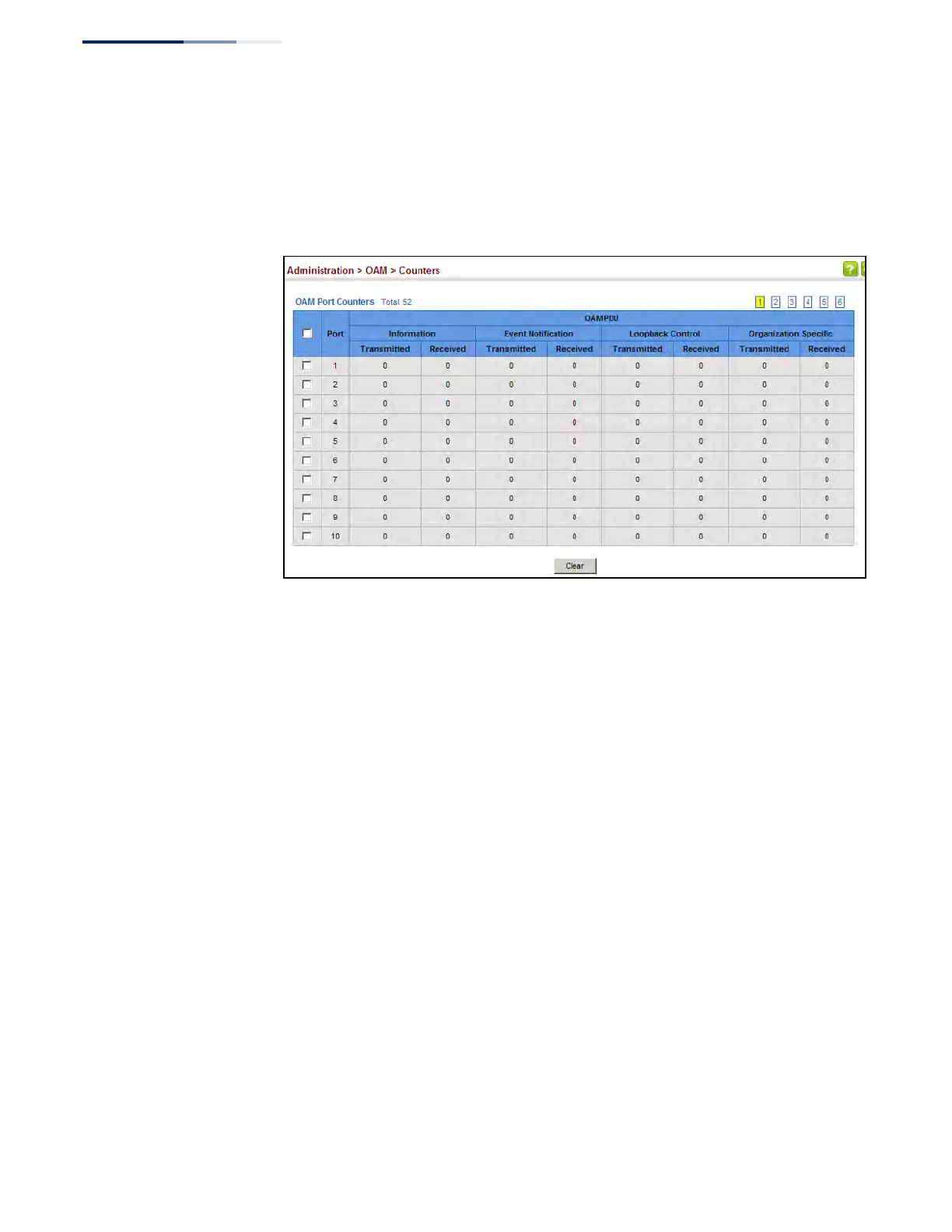

Figure 328: Displaying Statistics for OAM Messages
Displaying the
OAM Event Log
Use the Administration > OAM > Event Log page to display link events for the
selected port.
Command Usage
â—† When a link event occurs, no matter whether the location is local or remote, this
information is entered in OAM event log.
â—† When the log system becomes full, older events are automatically deleted to
make room for new entries.
â—† The time of locally generated events can be accurately retrieved from the
sysUpTime variable. For remotely generated events, the time of an event is
indicated by the reception of an Event Notification OAMPDU from the peer.
Web Interface
To display link events for the selected port:
1. Click Administration, OAM, Event Log.
2. Select a port from the drop-down list.
