Chapter 11
| VoIP Traffic Configuration
Configuring VoIP Traffic Ports
– 274 –
7. Click Apply.

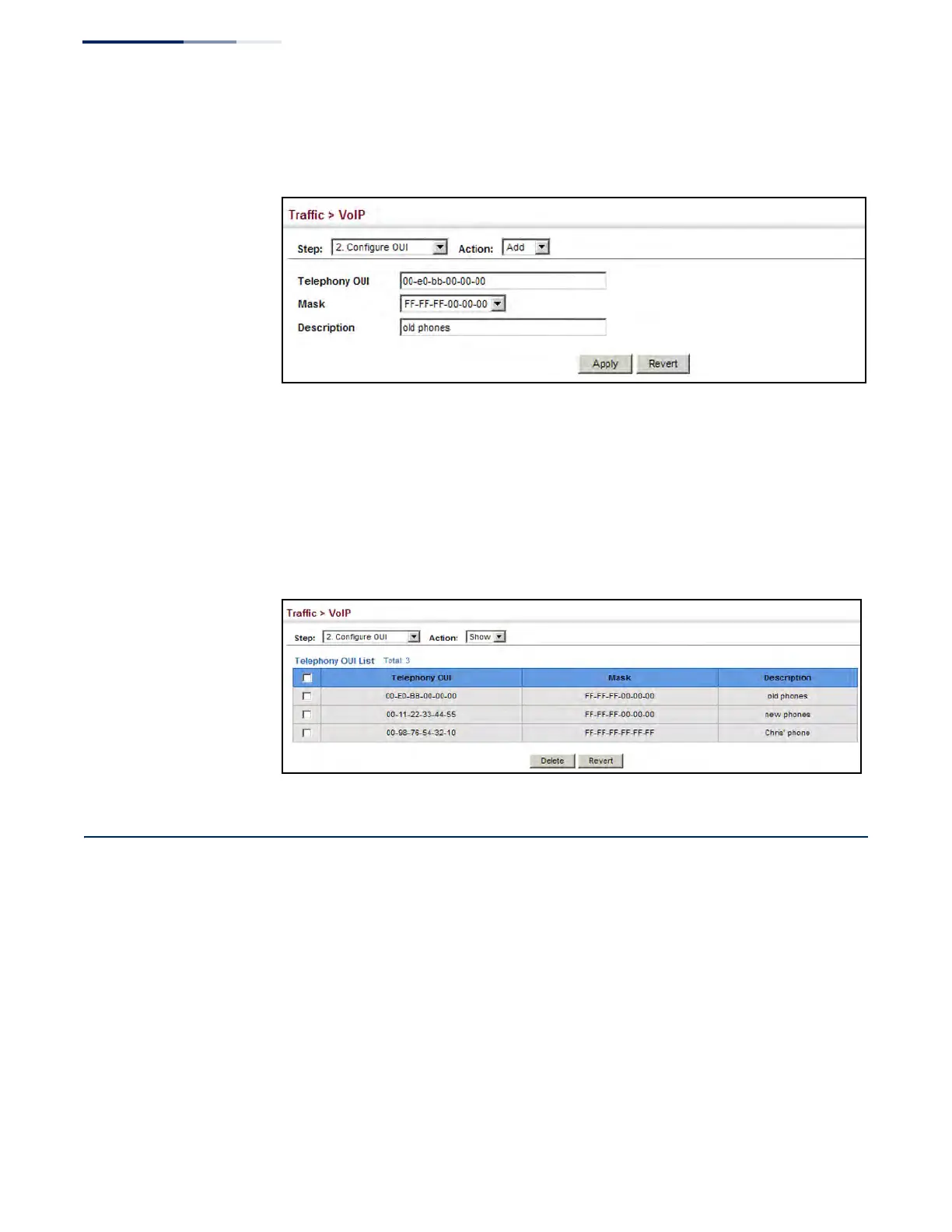

Figure 155: Configuring an OUI Telephony List
To show the MAC OUI numbers used for VoIP equipment:
1. Click Traffic, VoIP.
2. Select Configure OUI from the Step list.
3. Select Show from the Action list.
Figure 156: Showing an OUI Telephony List
Configuring VoIP Traffic Ports
Use the Traffic > VoIP (Configure Interface) page to configure ports for VoIP traffic,
you need to set the mode (Auto or Manual), specify the discovery method to use,
and set the traffic priority. You can also enable security filtering to ensure that only
VoIP traffic is forwarded on the Voice VLAN.
Command Usage
All ports are set to VLAN hybrid mode by default. Prior to enabling VoIP for a port
(by setting the VoIP mode to Auto or Manual as described below), first ensure that
VLAN membership is not set to access mode (see “Adding Static Members to
VLANs” on page 169).
