Chapter 17
| General IP Routing
Address Resolution Protocol
– 679 –
Web Interface
To map an IP address to the corresponding physical address in the ARP cache:
1. Click IP, ARP.
2. Select Configure Static Address from the Step List.
3. Select Add from the Action List.
4. Enter the IP address and the corresponding MAC address.
5. Click Apply.

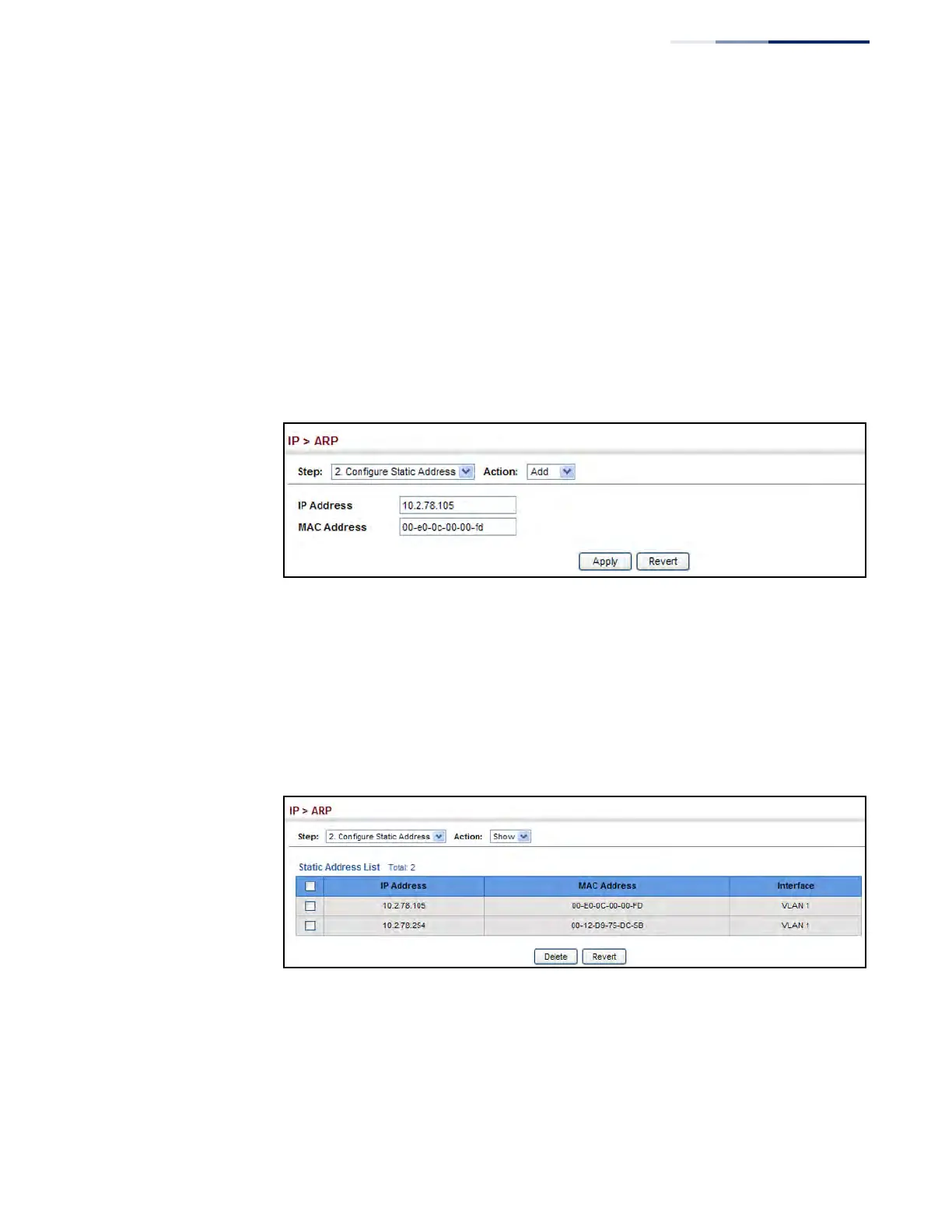

Figure 445: Configuring Static ARP Entries
To display static entries in the ARP cache:
1. Click IP, ARP.
2. Select Configure Static Address from the Step List.
3. Select Show from the Action List.
Figure 446: Displaying Static ARP Entries
