Chapter 4
| Interface Configuration
Trunk Configuration
– 148 –
To show connection parameters for a dynamic trunk:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Trunk from the Step list.
3. Select Show from the Action list.

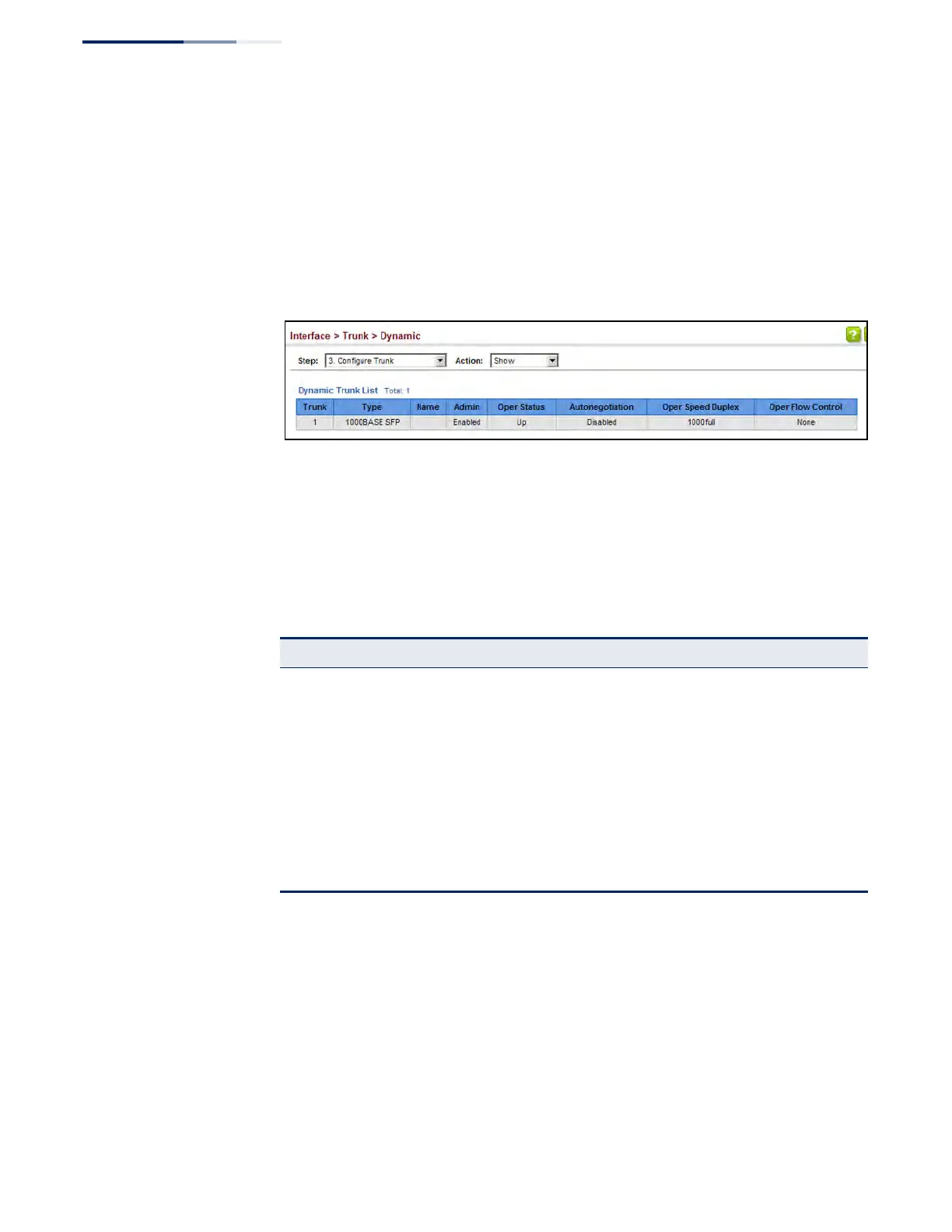

Figure 58: Showing Connection Parameters for Dynamic Trunks
Displaying LACP
Port Counters
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Counters) page to display statistics for LACP protocol messages.
Parameters
These parameters are displayed:
Web Interface
To display LACP port counters:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Show Information from the Action list.
4. Click Counters.
Table 6: LACP Port Counters
Parameter Description
LACPDUs Sent Number of valid LACPDUs transmitted from this channel group.
LACPDUs Received Number of valid LACPDUs received on this channel group.
Marker Sent Number of valid Marker PDUs transmitted from this channel group.
Marker Received Number of valid Marker PDUs received by this channel group.
Marker Unknown Pkts Number of frames received that either (1) Carry the Slow Protocols
Ethernet Type value, but contain an unknown PDU, or (2) are addressed
to the Slow Protocols group MAC Address, but do not carry the Slow
Protocols Ethernet Type.
Marker Illegal Pkts Number of frames that carry the Slow Protocols Ethernet Type value,
but contain a badly formed PDU or an illegal value of Protocol Subtype.
