7. Connect Network
Cables
Install SFP/SFP+ transceivers and connect network cables to port interfaces:
â—† For RJ-45 ports, use 100-ohm Category 5, 5e or better twisted-pair cable for
1000BASE-T connections, Category 5 or better for 100BASE-TX connections,
and Category 3 or better for 10BASE-T connections.
â—† First install SFP/SFP+ transceivers and then connect fiber optic cabling to the
transceiver ports. The following transceivers are supported:
â–
1000BASE-SX (ET4201-SX)
â–
1000BASE-LX (ET4201-LX)
â–
1000BASE-ZX (ET4201-ZX)
â–
10GBASE-SR (ET5402-SR)
â–
10GBASE-LR (ET5402-LR)
â–
10GBASE-ER (ET5402-ER)
As connections are made, check the port status LEDs to be sure the links are valid.

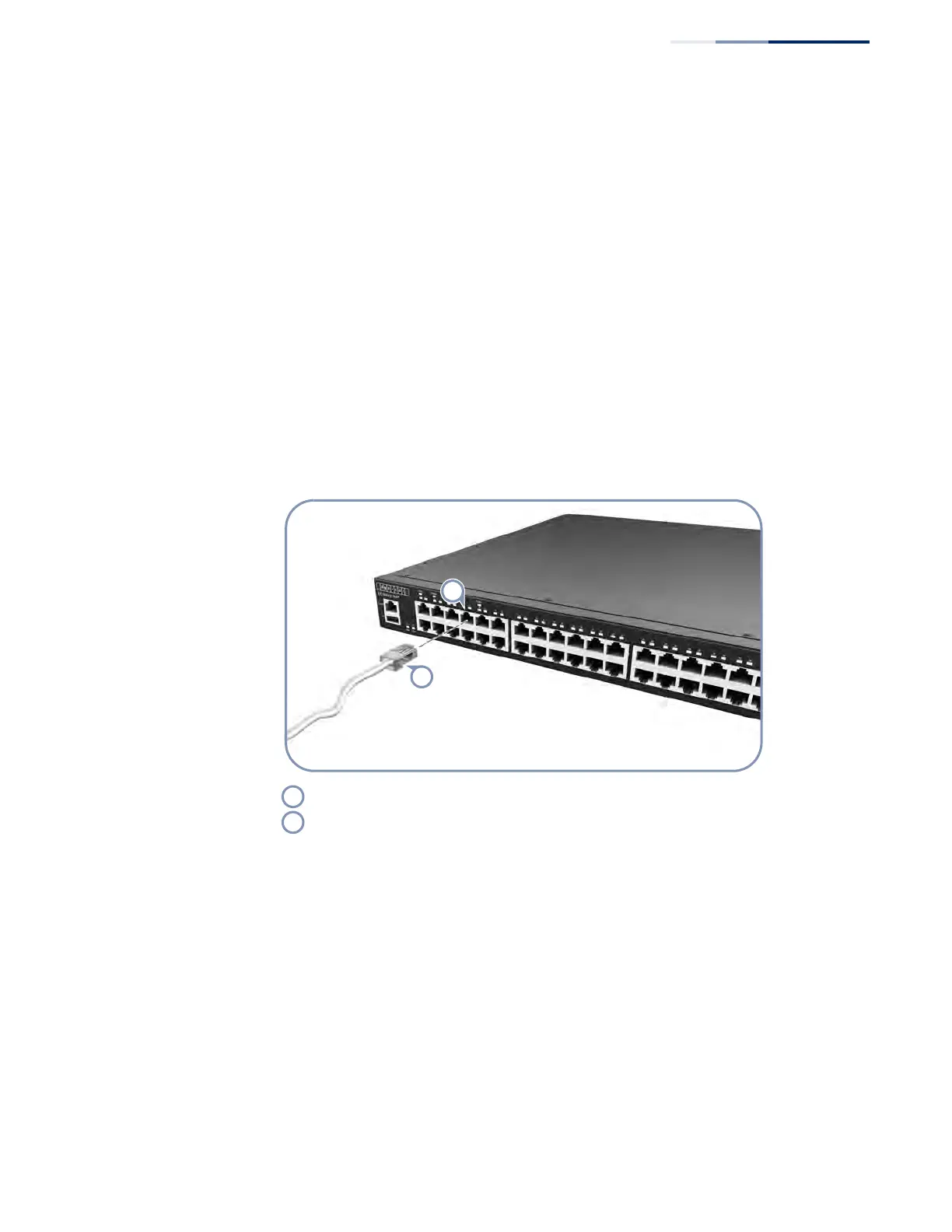

10/100/1000BASE-T RJ-45 Port.
Twisted-pair Cable with RJ-45 Plug.
