Configuring the ECN330-switch
512 1553-KDU 137 365 Uen D 2006-06-16
• Expire – The time before the RP will be declared down.
Web – Click Routing Protocol, PIM-SM, RP Mapping Information.

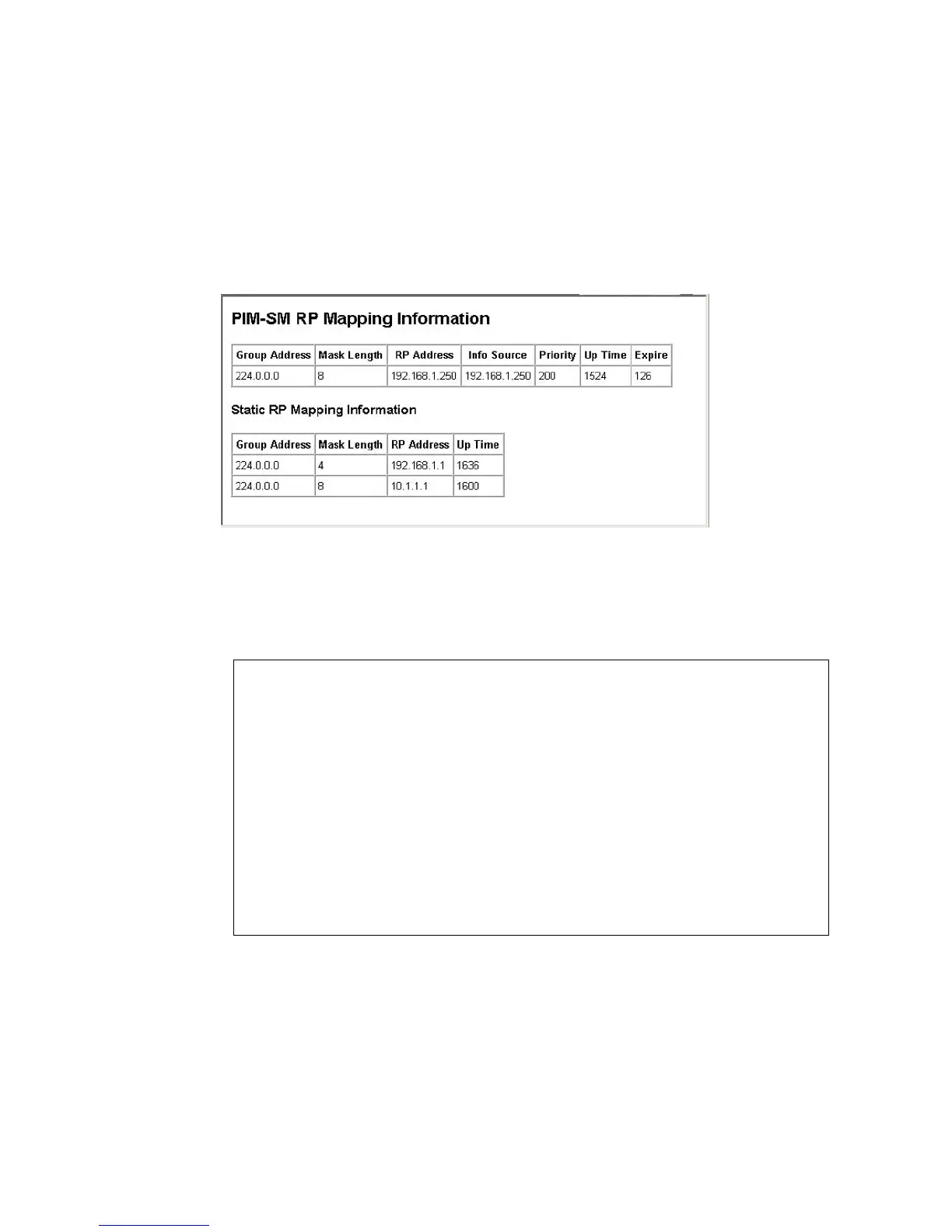

Figure 237 PIM-SM RP Mapping Information
CLI – This example displays the elected entries in the RP map, as well as all of
the static entries configured on this router.
Console#show ip pim rp mapping
PIM Group-to-RP Mappings:
Group(s): 224.0.0.0/8, via bootstrap
RP: 192.168.1.250, Info source: 192.168.1.250, priority 200,
0:36:15/0:2:15
Group(s): 224.0.0.0/4, Static
RP:192.168.1.1, Uptime:0:38:7
Group(s): 224.0.0.0/8, Static
RP:10.1.1.1, Uptime:0:37:31
Console#
