Diagnostic Aids 3-29
4023-001

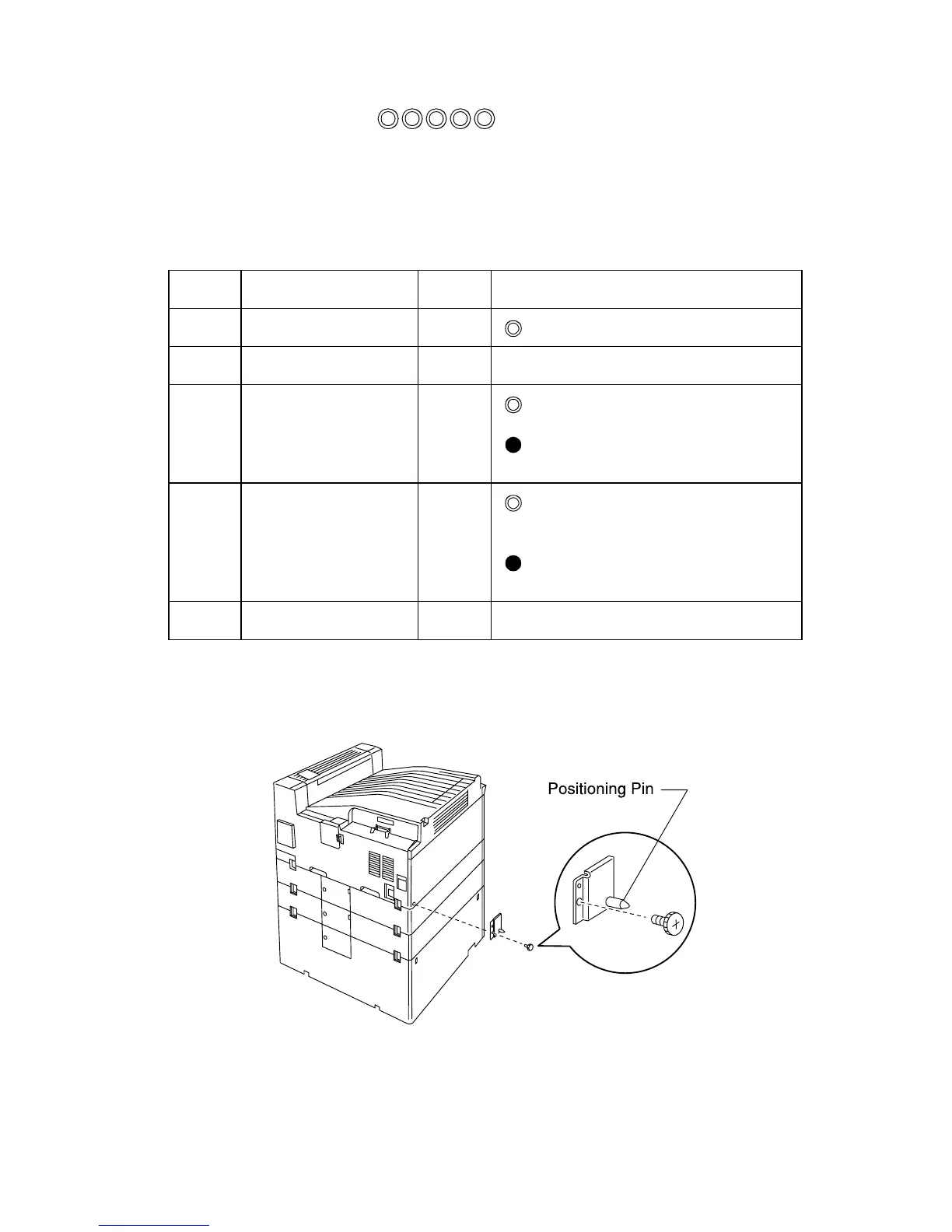

Initial Display Check ( )
Initial display check mode activates when test mode starts. This test
mode allows you to check whether the mail bin model is correct, and
whether the storage unit and horizontal transport unit are connected
to the printer properly. All the LEDs blink if there are no problems.
The sorter set switch (S1) turns ON and LED3 blinks if the
positioning pin on the printer is inserted into the hole on the storage
unit properly.
LED Sensor & Switch Code LED State
1 : 10-Bin Mailbox
2 Not used
3 Sorter Set Switch S1 : Storage unit connected properly.
: Storage unit not connected
properly.
4 Horizontal Unit
Door
Sensor
PC4 : Horizontal unit connected
properly.
: Horizontal unit not connected
properly.
5 Not used
