340 Matrix ETERNITY NE System Manual
To use the “Call Duration Control (CDC)” feature on trunk,
• Click Call Duration Control to expand options.
• Select the Apply CDC for Incoming Calls check box, to control the call duration for incoming calls on this
trunk. Default: Enabled.
Clear this check box, if you do not want to apply CDC for incoming calls on this trunk.
• Select the Apply CDC for Outgoing Calls check box, to control the call duration for outgoing calls on this
trunk. Default: Enabled.
Clear this check box, if you do not want to apply CDC for outgoing calls on this trunk.
• Click Submit.
See “Call Duration Control (CDC)” to know more.

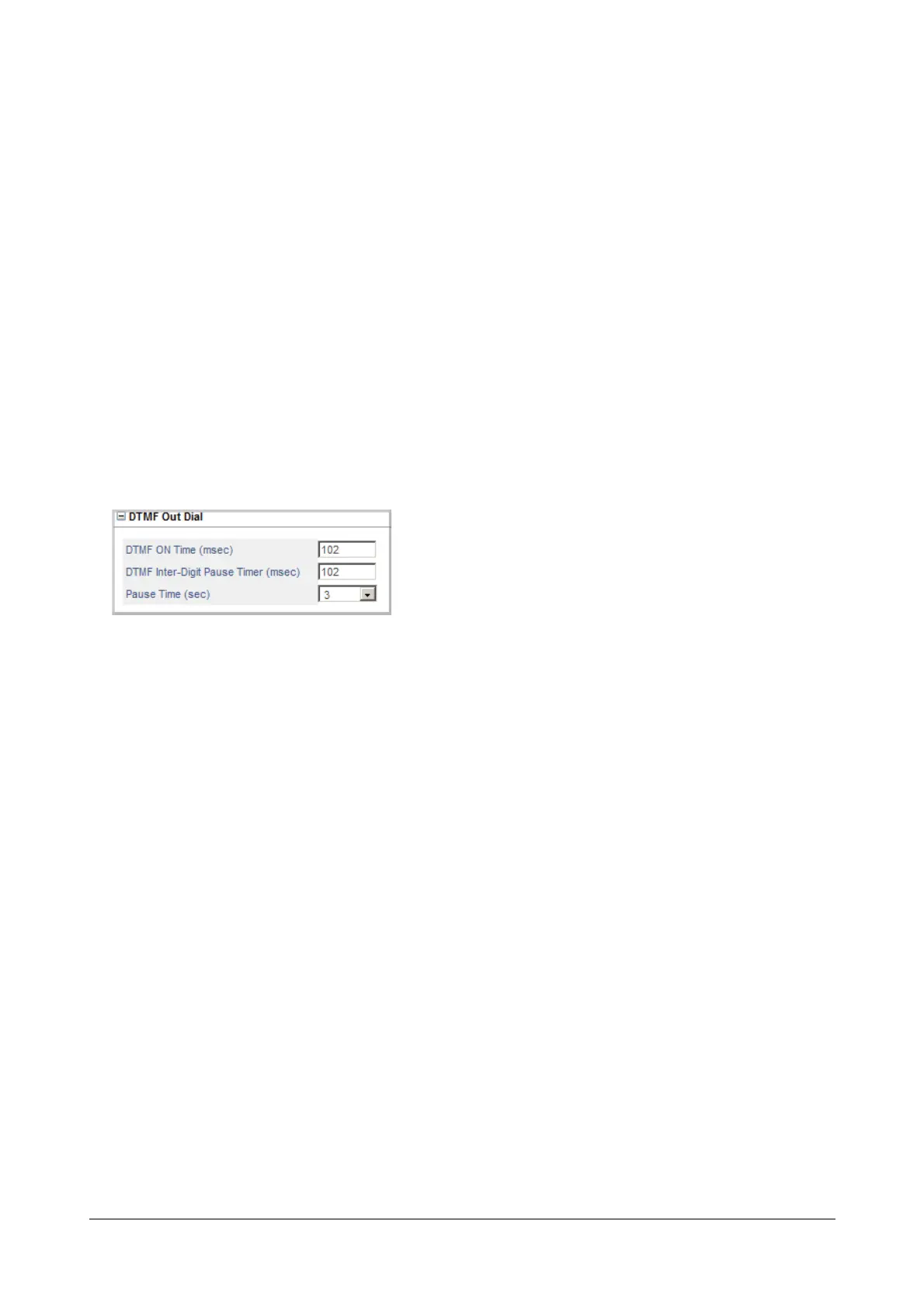

DTMF Out Dial
This parameter is applicable for the “Multi-Stage Dialing” feature.
• Click DTMF Out Dial to expand.
• Set the time for which the DTMF digit should remain ON while being dialed out by the SARVAM UCS as
DTMF ON Time.
The range of this timer is from 051 to 255 milliseconds. Default: 102 msec.
• Set the time for which SARVAM UCS should wait before dialing the successive DTMF digits as DTMF
Inter- Digit Pause Timer (msec). The range of this timer is from 051 to 255 milliseconds. Default: 102
msec.
• Set the time Pause Time (sec). It is used for the “Multi-Stage Dialing” feature. This Timer is required for
inserting delay while digits of a number string are out dialed from the SIP Trunk. The Pause Timer will be
applicable when the letter 'P' is configured in the DTMF number string which is to be out dialed as DTMF
digits on the SIP Trunk. The range of this timer is from 1 to 9 seconds. By default the Pause Time is set to
3 seconds.
For example, if 'PPP7' is to be out dialed and Pause time is programmed as 3 seconds, the SARVAM UCS
will out dial the digit 7 after 9 seconds, i.e. after a delay of individual P (i.e. 3+3+3 =9).
