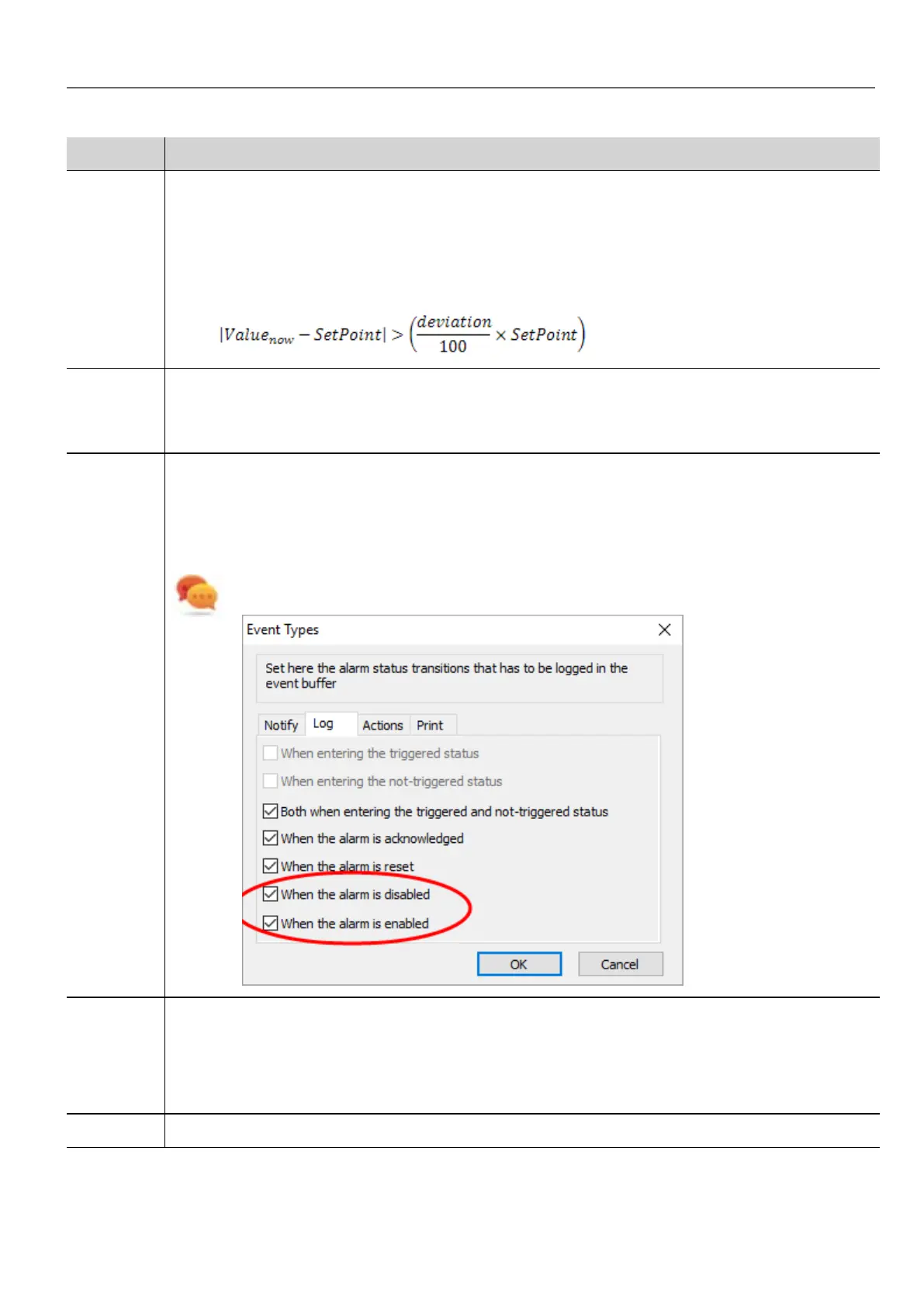

Parameter Description
l bitMaskAlarm: the bitwise AND operator compares each bit of the bitmask with the tag value
corresponding to that Alarm. If both bits are on, the alarm is set to true. You can specify one or
more bit positions (starting from 0) inside the tag. The Bit position must be given in decimal format;
if more bits are specified, each position must be separated by a ",".
l deviationAlarm: alarm triggered if the percentage of deviation of the tag value from the set point
exceeds a set deviation.
Tag Tag whose value will trigger the alarm when it exceeds the set limits.
The alarm can refer to the value of this tag, or to the state of a bit if bitMaskAlarm has been selected as
trigger.
Remote
Enable
Tag used by the PLC to enable/disable the alarm.
l Changing the enable status from the Alarms Widget will change the tag value
l When the tag cannot be read (e.g. communication error) the alarm is disabled
l No tags related to the alarm are refreshed when alarm is disabled.
Tip: It could be useful to enable the logging of the alarm's enable flag
Remote
Ack
Tag used by the PLC to acknowledge the alarm. A transition of this tag from 0 to a non zero value is
considered an acknowledgment request.
Leave empty if remote acknowledgment is not required.
See "Remote alarms acknowledge" on the next page for details.
Ack Notify Tag used by the HMIdevice to notify when the alarm is acknowledged from the device or from the PLC.
