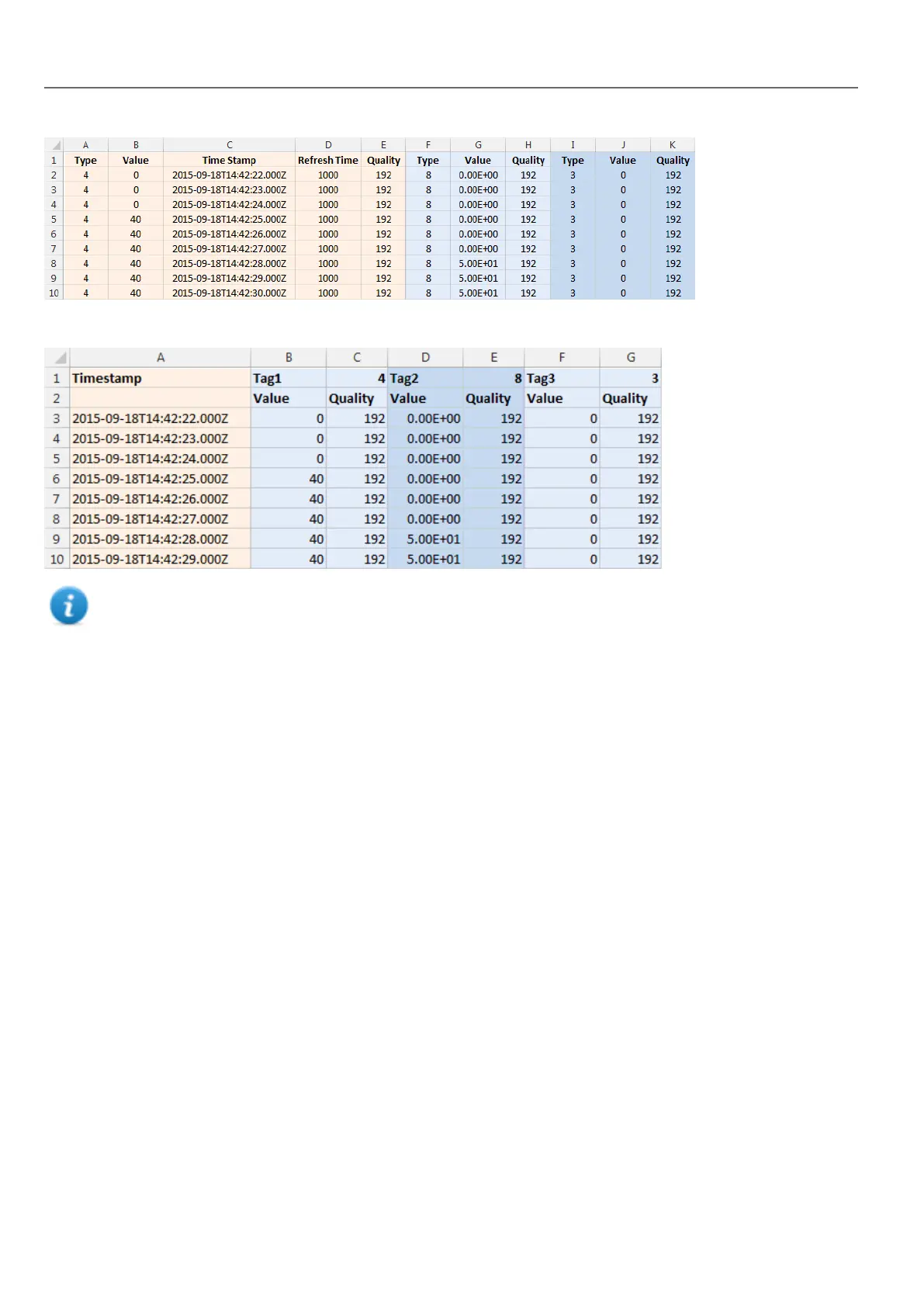

Dump extended mode (compact mode)
Note: The first row of the header contains the tags names and tags data types
See "System actions" on page135 for details.
Trend widgets
Data logged by the HMI device can be displayed in graphical format using trend widgets.
RealTime trend widget
The real- time trend widget can be used to display the changes of value of a tag. Data is not stored in a trend buffer and
cannot be retrieved for later analysis.
To display a real-time trend:
192
HMWIN Studio |User Manual|v206 (2017-06-30) |EN|© 2014-2017 Panasonic Electric Works Europe AG
Trend widgets
