Values outside range or invalid

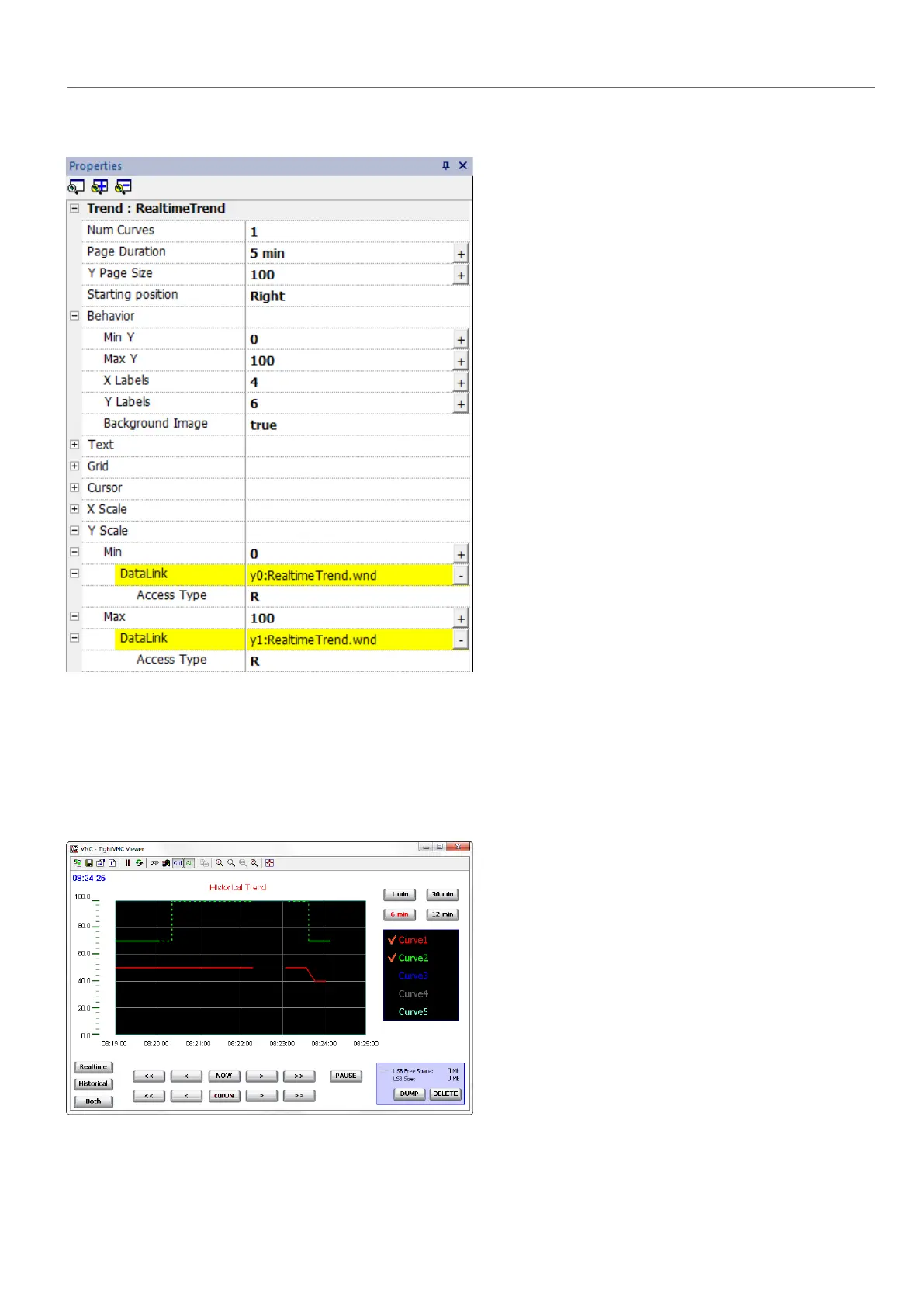

When trend value goes beyond the limits set for the trend widget, a dotted line is displayed. When the value of the tag is not

available, for example the controller device is offline, no curve is drawn.

197

17 Trends
