Tag Editor Settings

Path: ProjectView> Config > double-click Tags

1. To add a tag, click +: a new line is added.

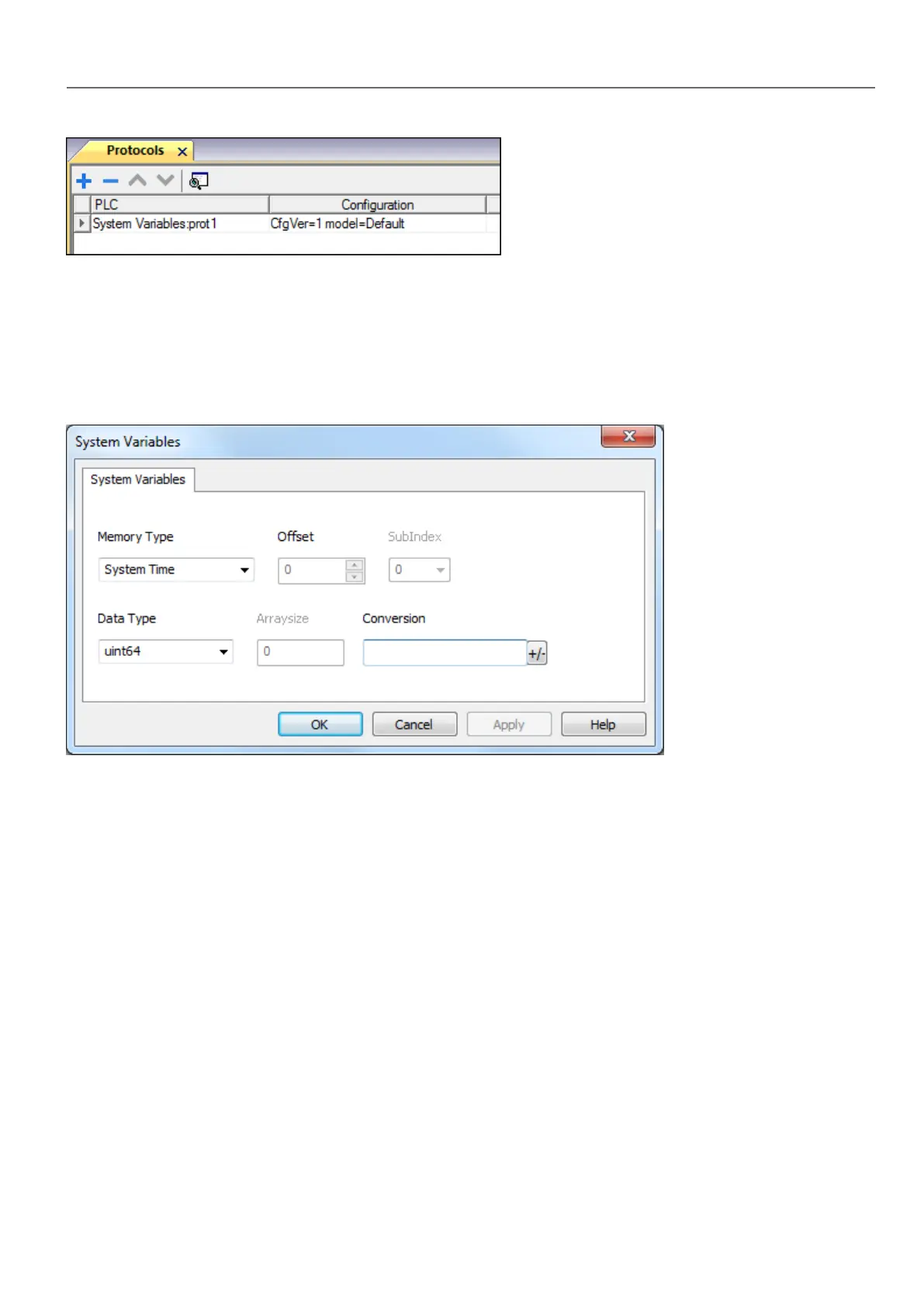

2. Select System Variables from the Driver list: tag definition dialog is displayed.

9 System Variables (Protocol)
