PREVOST X3-45 COMMUTER User Manual

SECTION 18: BODY
54
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020

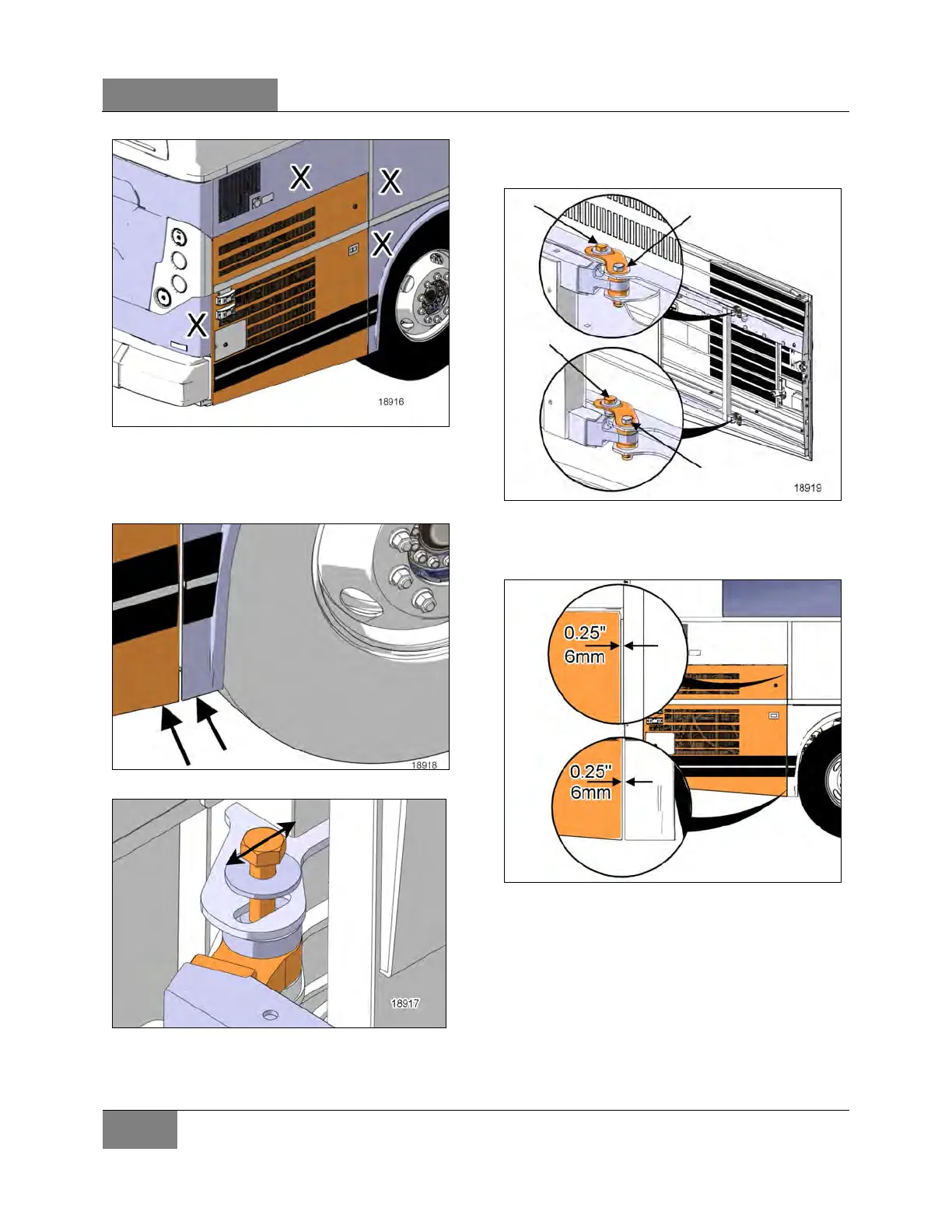

FIGURE 95: FLUSHED SURFACES
12. Adjust the bottom of the door flush with the
bottom of the fender by using the screw on
the lower arm.
FIGURE 96: DOOR HEIGHT ADJUSTMENT
FIGURE 97: LOWER ARM ADJUSTMENT SCREW
13. If previous step does not allow enough
adjustment, move to next step.
14. Use the arm attachments on the door to help
for adjustment.
FIGURE 98: ARM TO DOOR ADJUSTMENT BOLTS
15. Adjust the longitudinal position with the
attachment shown in Figure 98.
FIGURE 99: LONGITUDINAL ADJUSTMENTS
16. When adjustment is all done, tighten all bolts
of arms to the following torque value:
14 lb-ft (19 Nm)
17. Adjust roller support and tighten bolts (4)
with the roller in place (door closed).
