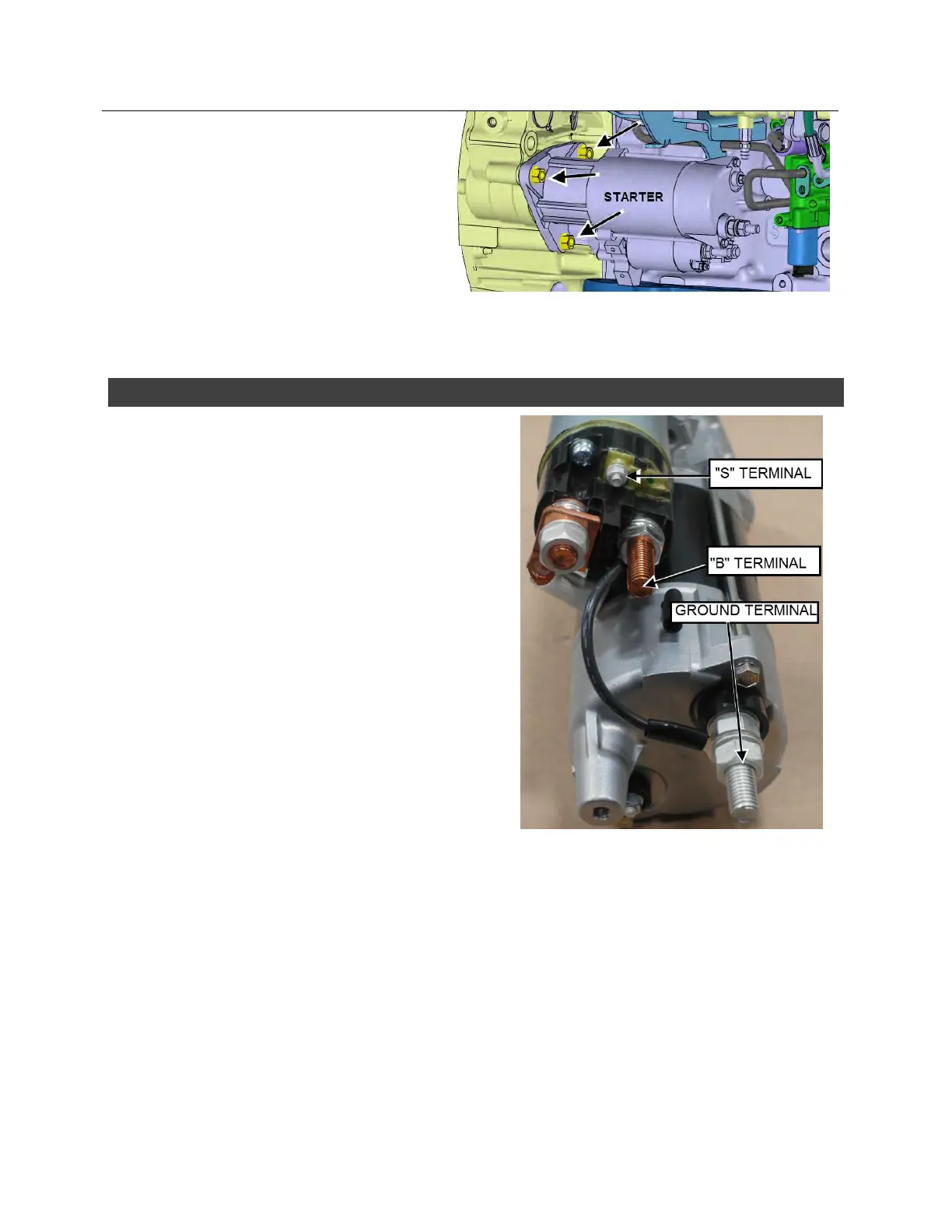

5. Using a 18mm socket, unscrew three bolts
fastening the starter to the flywheel
housing (FIGURE 3).
6. Detach the starter from the flywheel
housing.
1. If the starter is replaced with a brand new
starter, prepare the new starter as follows
(refer to FIGURE 5).
a) Remove the second nut on the ground
terminal (FIGURE 5). Keep for later use.
b) Remove the jumper cable connected
to the ground terminal (FIGURE 5).
c) Make sure that the three nuts
identified on FIGURE 5 are tightened to
a torque of 22 lbf-ft.
d) Reinstall the jumper cable to the
ground terminal.
e) Install a nylon tie mount p/n 504013 on
the starter. Refer to FIGURE 6 for
proper location. Secure the nylon tie
mount with one screw p/n 502817
(FIGURE 7).
