PREVOST X3-45 COMMUTER User Manual

MI16-16 / Page 4 / 6
<QF7720955 rev 2>

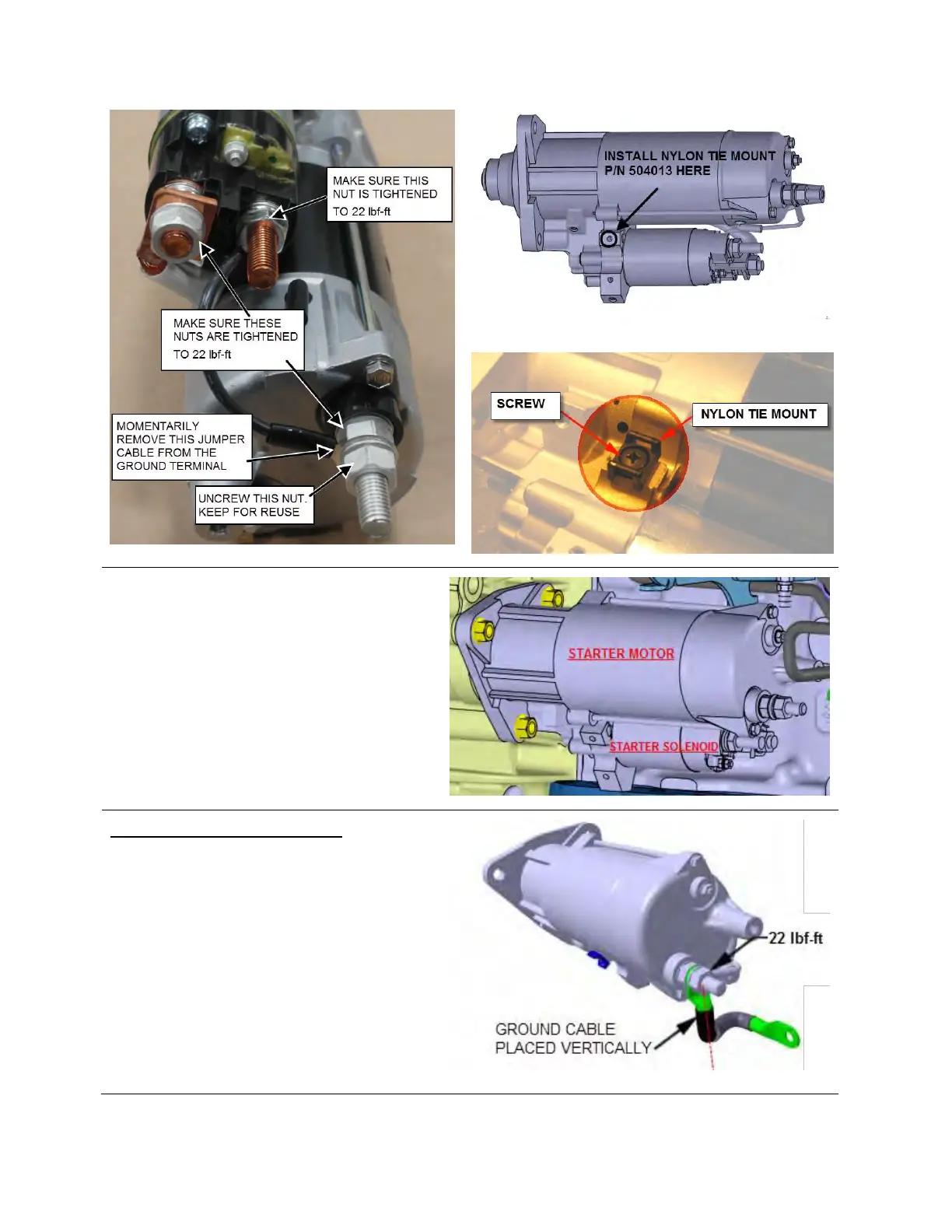

FIGURE 5
FIGURE 6
FIGURE 7
2. Install the replacement starter with the
solenoid located on the underside of the
starter motor as shown on FIGURE 8.
3. Hand tighten the three mounting nut.
Flange nut M12 p/n 990942 qty: 3
4. Once the starter is properly seated on the
flywheel housing, torque the three
mounting nuts to al torque of 44 lbf-ft.
FIGURE 8
INSTALLATION OF CIRCUIT 0C
5. Connect the ground cable (circuit 0C) to
the ground terminal first. Make sure the
ground cable extends vertically downward
from the terminal as shown on FIGURE 9.
6. Secure the ground cable lug with the nut
previously removed at step 1-a. Tighten to
a torque of 22 lbf-ft.
M12 hex nut p/n 983717
FIGURE 9

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
