PREVOST X3-45 COMMUTER User Manual

MI16-16 / Page 5 / 6
<QF7720955 rev 2>

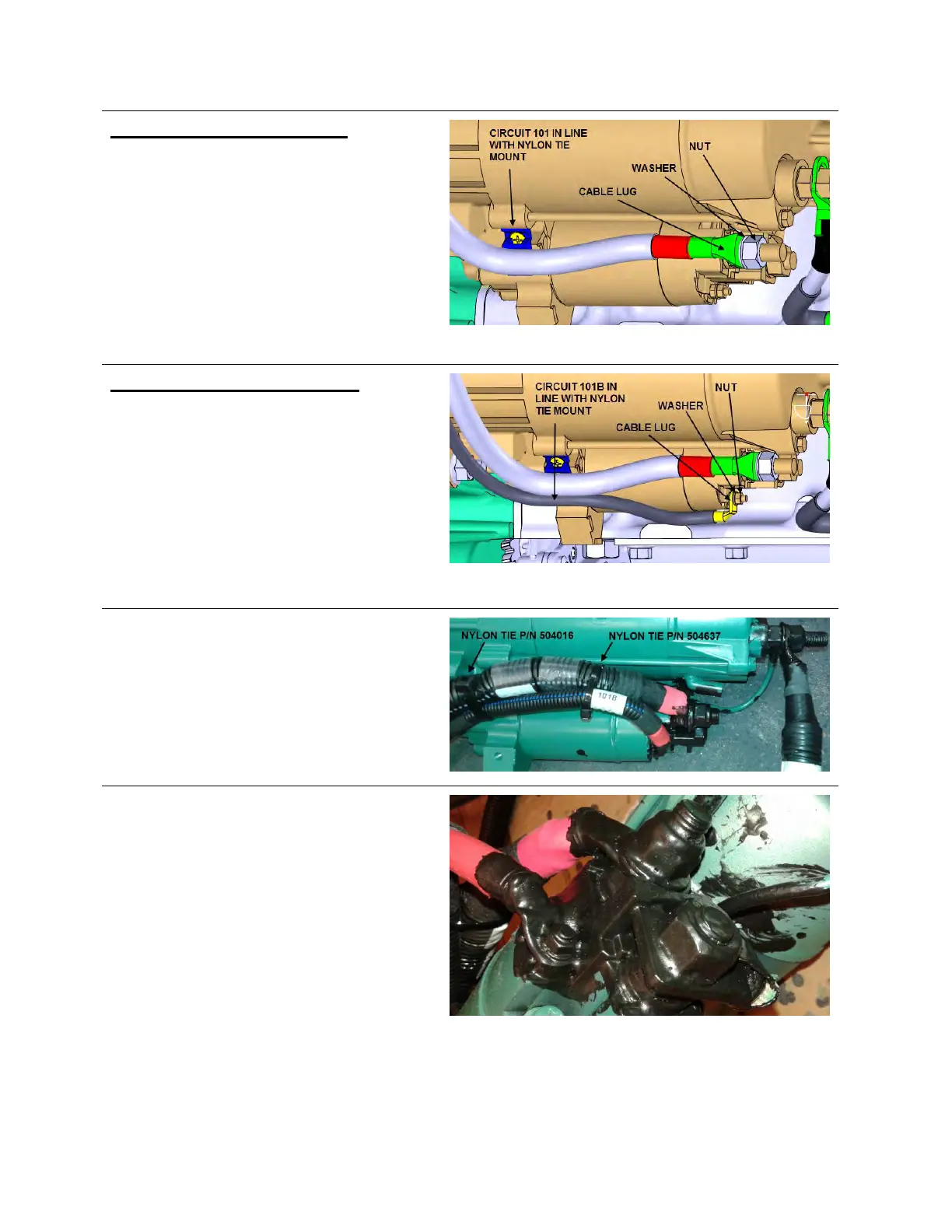

INSTALLATION OF CIRCUIT 101
7. Connect circuit 101 to B terminal (FIGURE 4
& FIGURE 5). Position circuit 101 cable to
be in line with the nylon tie mount on the
starter.
8. Place the washer against circuit 101 cable
lug and secure cable lug and washer with
the nut. Tighten the nut to a torque of 22
lbf-ft.
washer p/n 500958 qty:1
nut p/n 5001761 qty:1
FIGURE 10
INSTALLATION OF CIRCUIT 101B
9. If not already done, remove the nut and
washer provided with the brand new
starter on S terminal (FIGURE 4).
10. Connect circuit 101B to S terminal.
Position circuit 101B cable to be in line
with the nylon tie mount on the starter.
11. Place the provided washer against circuit
101 cable lug and then secure cable lug
and washer with the nut provided. Tighten
the nut to 35 lbf-in.
FIGURE 11
12. Secure circuit 101 and 101B to the tie
mount using one nylon tie p/n 504016.
13. Tie circuit 101 and 101B together using
one nylon tie p/n 504637 as shown on
FIGURE 12.
FIGURE 12
14. Apply anti-corrosion compound or Color
Guard Rubber Coating (Prevost
p/n 684013) on starter terminals, cable
lugs and nuts (see FIGURE 13 to FIGURE 15).
FIGURE 13

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
